Windows Opeartion System Portable Gis Data Collector for High Precison GPS Surveying Instrument

Name: Windows Opeartion System Portable Gis Data Collector for High Precison GPS Surveying Instrument
Brand: all-electronics-online.com
SKU: 698531452
Availability: InStock
Rating: 4.5 (67 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Qmini MP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating System:	Windows Mobile 6.5
Processor:	806 MHz
RAM:	256 MB RAM
Flash Memory:	8 GB
Display:	3.7 Inch LED, 640×480 Resolution
Single Point Positioning:	5 M
Size:	152 Mm X 82 Mm X 32 Mm
Weight:	315 G (with Battery)
Operating Temperature:	-20~+70
Storage Temperature:	-30~+80
Type:	GPS Receiver
Use:	Hand Held
Screen Size:	3.5"
Brand:	Hi-Target

Product Description

Windows opeartion system Portable Gis Data Collector for High Precison GPS Surveying Instrument

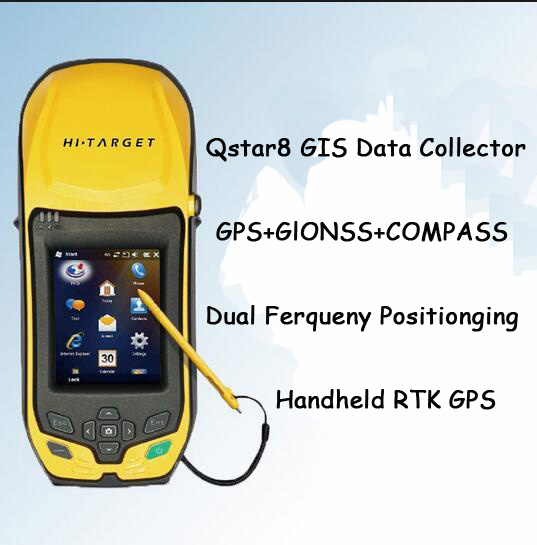

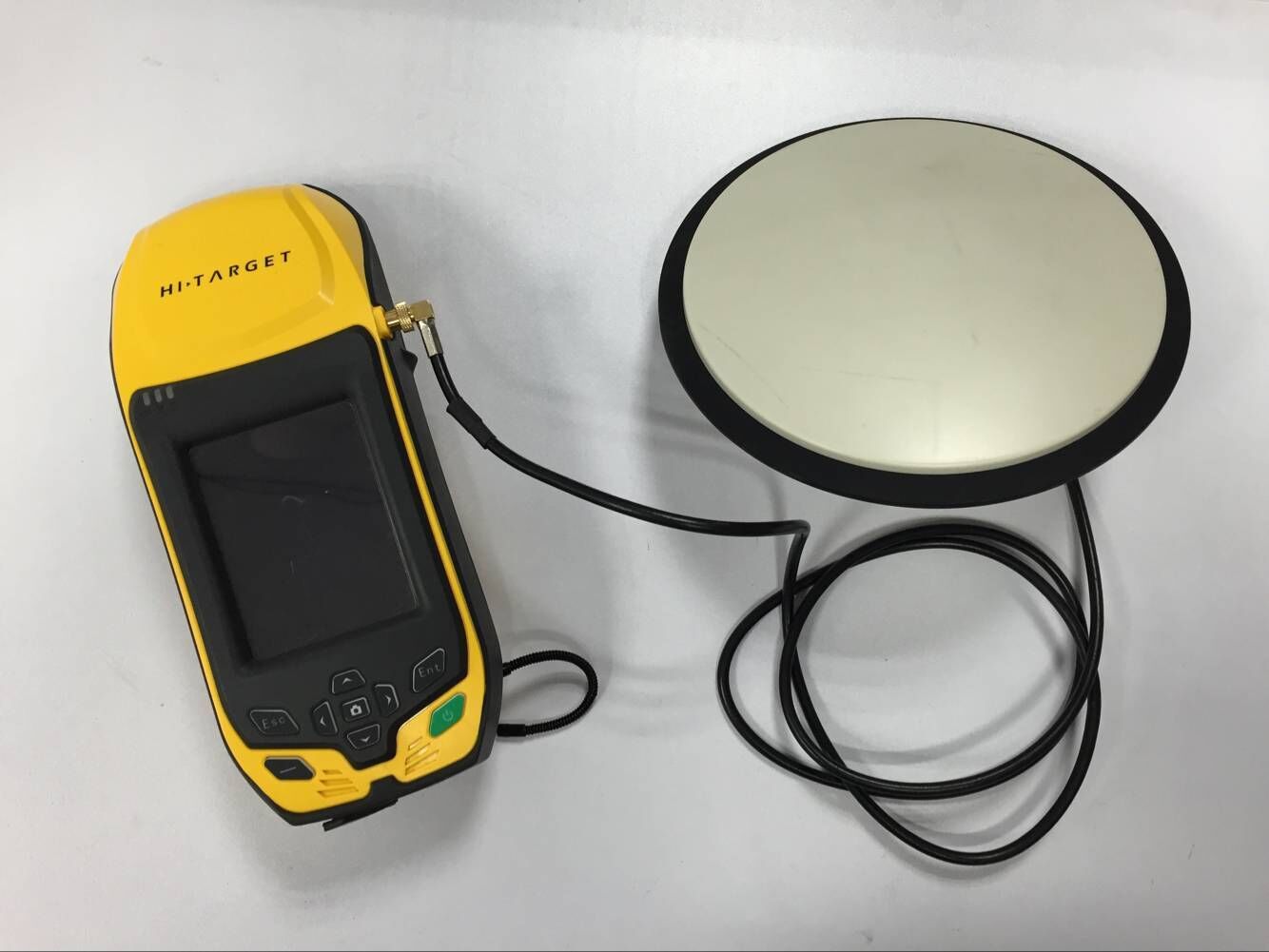

Qstar8 brings the essential functionality for high accuracy GIS data collection in one device. It is also the most cost-effective high accuracy network RTK rover.

Technical parameters:

Technical Parameters
Measurments	120 Channels
	Proven NovAtel GNSS technology
	Multipath mitigating technology
	Auxiliary strobe signals, including a configurable output for time synchronization and mark inputs
	Satellite signals tracked simultaneously	GPS: L1, L2, L2C
		GLONASS: L1, L2
		Galileo: E1
		GIOVE-A/GIOVE-B (test)
		BDS/Compass
		SBAS
		QZSS
Position Performance	Static and Fast Static GNSS surveying	Horizontal: 2.5mm+0.5ppm RMS
		Vertical: 5mm+0.5ppm RMS
	(PPK / Stop & Go) GNSS surveying	Horizontal: 1cm+1ppm RMS
		Vertical: 2.5cm+1ppm RMS
		Initialization time: typically 10 minutes for base while 5 minutes for rover
		Initialization reliability: typically > 99.9%
	Real-time Kinematic (RTK) surveying	Horizontal: 10mm+1ppm RMS
		Vertical: 20mm+1ppm RMS
		Initialization time: typically < 10 seconds
		Initialization reliability: typically > 99.9%
	Code Differential GNSS positioning	Horizontal: 25cm+1ppm RMS
		Vertical: 50cm+1ppm RMS
		SBAS: 0.60m Horizontal
Hardware	Physical	Dimensions (w x H): 16.5 cm x 10.5 cm (6.50 in x 4.13 in)
		Weight: 1.75kg (3.86lb) with internal battery, internal radio, standard UHF antenna
		Operating temperature: -45ºCto +65ºC (-49ºF to +149ºF)
		Storage temperature: -55ºC to +85ºC (-67ºF to +185ºF)
		Humidity: 100%, considering
		Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
		Shock and Vibration: Designed to survive a 2m (6.56ft) natural fall onto concrete.
		Display: 128×64 resolution, 1.54 inch OLED screen
	Electrical	Power 6V to 28V DC external power input
		Power consumption 2.5W
		Automatic Switching between internal power and external power
		Rechargeable, removable 7.4V, 4400mAh Lithium-Ion battery in internal battery compartment
	Internal battery life	Static 13 - 15 hours
		RTK Rover (UHF/GPRS) 10 - 12 hours
		RTK Base 8 - 10 hours
	I/O interface	1 x Bluetooth
		1 x standard USB2.0 port
		2 x RS232 serial port
Communication and Data Storage	GPRS/GSM	Fully integrated, fully sealed internal GPRS/GSM
		Network RTK (via CORS) range 20-50km
	HI-TARGET internal UHF radio (standard)	Frequency: 460 MHz with 116 channels
		Transmitting Power: 0.1W, 1W, 2W adjustable
		Transmitting Speed: Up to 19.2Kbps
		Working range: 3~5Km typical, 8~10km optimal
	HI-TARGET External UHF radio (standard)	Frequency: 460 MHz with 116 channels
		Transmitting Power: 5W, 10W, 20W, 30W adjustable
		Transmitting Speed: Up to 19.2Kbps
		Working Range: 8~10Km typical, 15~20km optimal
	Support other external communication device	For example, external GSM modem.
	Data storage	64MB internal memory
	Data formats	(1Hz positioning output, up to 50 Hz - depends on installed option)
		CMR: CMR+, CMR input and output
		RTCM: RTCM 2.1, 2.3, 3.0, 3.1 input and output
		RTCA: RTCA
		Navigationoutputs: NMEA-0183, NovAtel ASCII and Binary logs

Package List:
