Prod Model: |
Qmini MP |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East |
Use Type: |
Handheld GPS |
Dustproof/Waterproof: |
IP65 |
Single Point Positioning: |
5m |
Resolution: |
640*480 |
Operating System: |
Windows Mobile 6.5 |
Weight: |
315g(with Battery) |
GPS Features: |
GPS L1 & Bds B1 |
Display: |
3.7inch LED |
RAM: |
256MB |
Camera: |
5 Megapixels Camera with LED |
Product Description

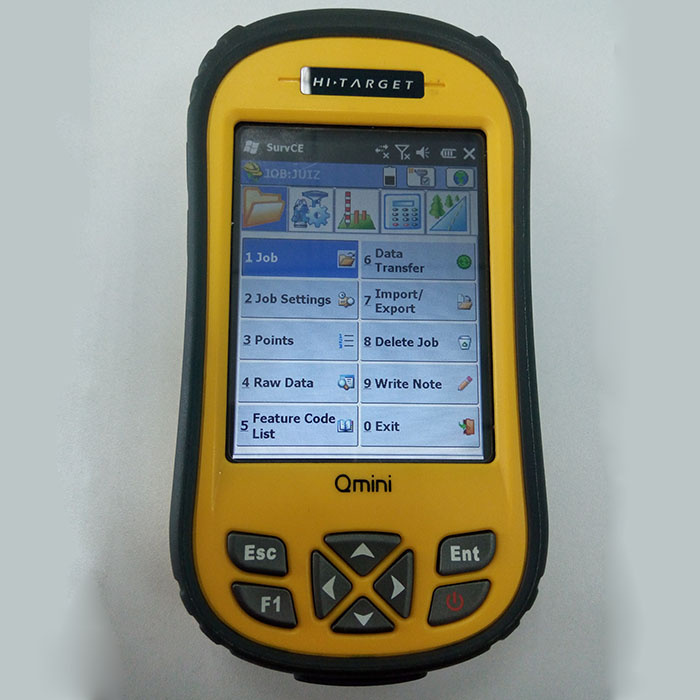

GNSS GIS Receiver Waterproof Handheld GPS
With Windows Mobile 6.5 you may upload necessary utilities or software on your Qmini M ,to suit your next job .
You can collect GIS/GPS points and maps via the GIS application of your choice , either a third-party software such as ESRI ,ARCPAD or the proprietary Hi-Target application.
The Technical Parameters of the Qmini MP handheld GPS:
Model | Qmini MP |
System Configuration | Operation system: Windows Mobile 6.5 | √ |
Processor: 806 MHZ | √ |
RAM: 256MB RAM | √ |
Flash Memory: 8GB | √ |
Display: 3.7 inch LED, 640×480 resolution | √ |
GNSS Features | Single frequency GPS positioning technology | √ |
Support Compass system | √ |
Integrate SBAS (WAAS, EGNOS, MSAS) | √ |
Time for the first fix(TTFF) | 35s |
Update rate: 1HZ (support higher frequency) | √ |
Position Accuracy | Single point positioning | 5m |
Application functions | Integrated 3G communication module | √ |
5 million pixel camera with LED | √ |
Built-in microphone & speaker | √ |
Integrated G-sensor | √ |
keys and camera key | 8keys |
Data communication | Bluetooth | √ |
Mini USB | √ |
WIFI:802.11b/g | √ |
MicroSD card slot, support up to 32GB | √ |
Power supply | Lithium battery, online charging | 3100mAh |
Continuous work | 8 hours |
Physical properties | Size | 152mm x 82mm x 32mm |
Weight(with battery) | 315g |
Operating temperature | -20ºC ~ +70ºC |
Storage temperature | -30ºC ~ +80ºC |
Dustproof/waterproof: IP67 | √ |
Anti-shock: 1.5m free fall | √ |
