| Prod Model: |
V90 Plus GNSS RTK System |
| Condition: |
New |
| Operation System: |
Linux 3.2 |
| Appliccation: |
Geodetic Surveying & Mapping |
| GPS: |
Support |
| Glonass: |
Support |
| Bds: |
Support |
| Galileo: |
Support |
| Other Satellites: |
Sbas, Qzss |
| Channel: |
220 |
| Waterproof: |
IP67 |
| Type: |
GPS Receiver |
| Use: |
Automotive |
| Brand: |
Hi-Target |
| Certification: |
Ce, FCC |
Product Description

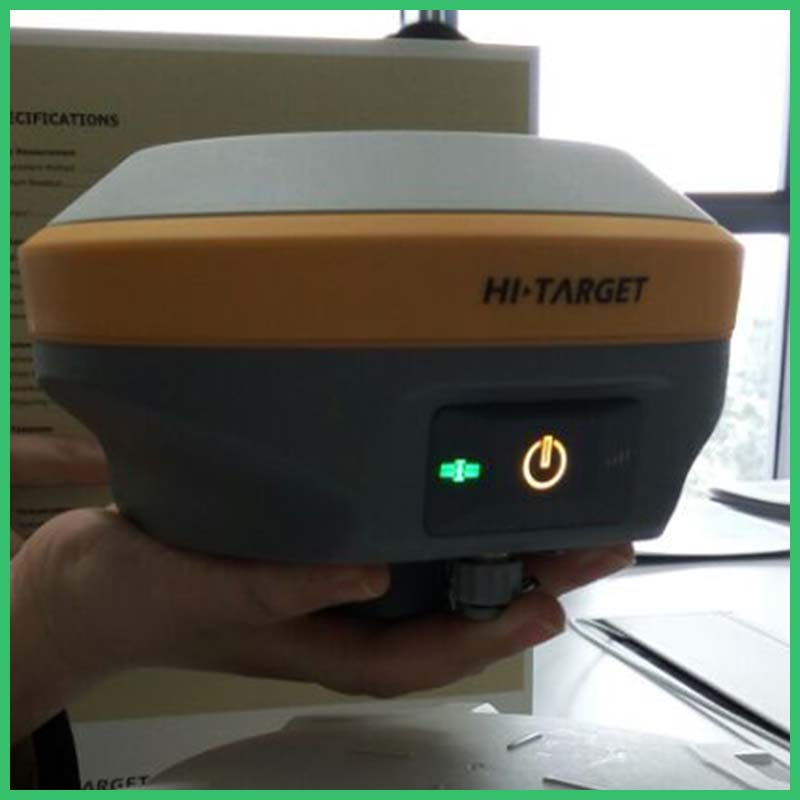

Hi-Target UHF Radio Transceiver WIFI avaliable V90 Plus GNSS RTK System
V90 is a new type of GNSS RTK GPS system used for measurement pushed forward by Hi-Target recently. With a hi-tech, fully integrated design, the conveniently sized V90 is one of the most flexible choices for any measuring task. Built-in Linux3.2.0 operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration, NFC and voice DIY, LEDs enable you to monitor satellite tracking, radio reception, data logging status, Wi-Fi status, and power. Bluetooth wireless technology provides cable-free communications between the receiver and controller.V90 GNSS system provides surveyor industry-leading GNSS solutions.
>>Technical Parameters of the V90 Plus GNSS RTK System:
1. Satellite Signals Tracked Simultaneously
220 Channels
GPS...….. Simultaneous L1C/A, L2C, L2E, L5
GLONASS......…..Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
SBAS............. Simultaneous L1 C/A, L5
Galileo............ Simultaneous L1 BOC, E5A, E5B, E5AltBOC
BDS..............................…. B1, B2
QZSS.............. L1 C/A, L1 SAIF, L2C, L5
2. Positioning Performance of the High Precision GNSS RTK System:
1>Static and Fast Static GNSS Surveying
Horizontal............2.5mm+0.5ppm RMS
Vertical................ 5mm+0.5ppm RMS
2>Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying
Horizontal............….. 1cm+1ppm RMS
Vertical............... 2.5cm+1ppm RMS
Initialization time...….Typically 10 minutes for base while 5 minutes for rover
Initialization reliability...Typically > 99.9%
3>Real Time Kinematic (RTK) Surveying Single Baseline
Horizontal............….. 8mm+1ppm RMS
Vertical................ 15mm+1ppm RMS
4>Network RTK
Horizontal............….. 8mm+0.5ppm RMS
Vertical................. 15mm+0.5ppm RMS
Initialization time.....…Typically < 8seconds
Initialization reliability....Typically > 99.9%
5>Code Differential GNSS Positioning
Horizontal............…. 25cm+1ppm RMS
Vertical...............… 50cm+1ppm RMS
SBAS ...… 0.50m Horizontal, 0.85m Vertical
3. Hardware
1>Physical
Dimensions (W x H)....153mm x 83mm (6.02inch x 3.27inch)
Weight...…950g (2.09lb) without internal battery
Operating temperature...…. -40ºCto +65ºC (-40ºF to +149ºF)
Storage temperature....... -40ºC to +75ºC(-40ºF to +167ºF)
Humidity............…. 100%, considering
Water/dustproof........... IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
Shock and vibration......…Designed to survive a 3m(9.84ft) natural fall onto concrete.
2>Electrical
Power 6V to 28V DC external power input
Power consumption ≤3.5W
Automatic switching between internal power and external power
Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery in internal battery compartment
*Internal Battery Life
Static 12hours
RTK rover (UHF/GPRS/3G) 8-10 hours
RTK base 8 hours
