| Prod Model: |
Qstar8 Mini GPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation System: |
Windows Mobile 6.5 |
| Processor: |
806MHz Main Frequency |
| Flash Memory: |
8g |
| Screen: |
3.7", Color Touch Screen |
| Main Function: |
Compass, Barometric Altimeter, Thermometer |
| Waterproof/Dustproof: |
IP67 |
| Anti-Drop: |
1.5m |
| Sbas Accuracy: |
1m |
| Single Point Positioning Accuracy: |
2m |
| Rtk Horizontal Accuracy: |
10mm+1ppm RMS |
| Use: |
Hand Held |
| Screen Size: |
2.8" |
| Model: |
Qcool |
| Brand: |
Hi-Target |
Product Description

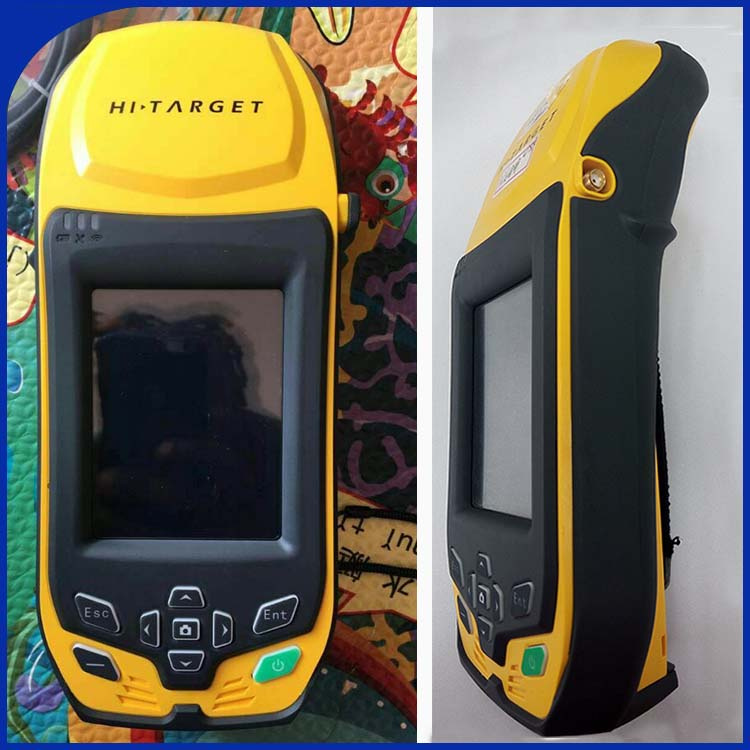

Handheld GPS Receiver with High Accuracy RTK Survey ModeQstar8 GIS Collector brings the essential functionality for high accuracy GIS data collection in one device. It is also the most cost-effective high accuracy network RTK rover.
>>Technical Parameters of the handheld GPS receiver:1.System Configuration
*Processor:806MHz frequency high-speed CPU processor
*Memory:256MB RAM
*Flash memory:8G
*Screen:3.7inch colorful touch screen,resolution:640*480
2.GNSS Performance
*High accuracy single frequency GPS positioning technology
*High accuracy GPS+GLONASS Dual Satellites positioning technology
*Integrated SBAS(WAAS,EGNOS,MSAS)
*TIFF:30s
3.Positioning Accuracy
*Update rate:1Hz,support better choice
*Single point positioning:2m
*SBAS:1m
*Reference station:2cm
*Hi-PPP technology:10cm
*Static survey:5mm+1ppm
4.Application Function
*Integrated 3G communication module
*5 million pixel auto focus camera
*Microphone,speaker
*Integrated high accuracy G-sensor
*Integrated laser plummet
*Tele compass
*9 buttons
5.Data Communication
*Bluetooth
*Mini USB
*WIFI:802.11b/g wireless LAN
*Micro SD(32G)
6.Power Supply
*8800mAh Li-ion battery(support online charging)
*1 battery can keep 12 hours¡¯ continuous work
*Pull-out battery compartment,more convenient to replace battery
7.Physical Properties
*Size: 236mm*105mm*62mm
*Weight: 835g
*Working temperature: -30 C~+70 C
*Storage temperature: -40 C~+80 C
*Waterproof/Dustproof: IP67
Anti-shock: 1.5m free fall>>Advantages of the Qstar 8 Handheld GPS Receiver:*Faster
*High accuracy
*Solider
*The most portable handheld RTK
*Centimeter level high accuracy
*Dual frequency GPS+ GNSS positioning
*Meet your surveying requirements even under hard environmental conditions and most extreme weather conditions>>Main Applications of the Handheld GPS Receiver:*Transportation:
Road design, traffic management, traffic maps making, etc.
*Resource Management:
Planning wildlife protection inventory of land resources, forest resources and mineral resources management, land use plan
*City planning:
Urban planning process to consider all aspects of environmental factors, population, transportation, economic, education, GIS collect these data into a unified system, to facilitate analysis, the overall planning.
*Environmental Assessment:
Master and compare the quality status and trends of the environmental; Looking for pollution control priorities; provide scientific basis for comprehensive environmental management and urban planning and environmental planning; study the relationship between environmental quality population health; prediction and evaluation of the proposed project on the surrounding environment that may arise influences.
*Daily living:
LBS, Location Based Service>>Contact US:Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd
