Chongqing Gold Mechanical & Electrical Equipment Co., Ltd. >> Gis Data Collector GPS Handheld GPS Receiver

Gis Data Collector GPS Handheld GPS Receiver

Gis Data Collector GPS Handheld GPS Receiver
Price: US $ 3000-5000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Qstar8 GIS Collection
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation System: Windows Mobile 6.5
Processor: 806MHz Main Frequency
Flash Memory: 8g
Screen: 3.8",Color Touch Screen
Single Point Positioning Accuracy: 2m
Sbas Accuracy: 1m
Waterproof/Dustproof: IP67
Anti-Drop: 1.5m
Software: Vehicle Navigation
Comminication Interface: Bluetooth,USB,WiFi,SD Card
Use: Hand Held
Type: GPS Navigation and Tracking
Port Number: Dual Frequency
Model: Qstar 8
Screen Size: 3.8"
Brand: Hi-Target
Certification: CE,FC

Product Description

Qstar8 High Precision Handheld GPS GIS Data Collector
Qstar 8 is the best platform of applicable software for high accuracy GIS data collection and it is widely applied to power line inspection,land&resources management,forestry,agriculture,piping,underground cabing,waste water management and so on


Technical Parameters of the Handheld GPS/GIS Data Collector:
ModelQstar 8
System ConfigurationOperation system: Windows Mobile 6.5
Processor: 806 MHZ
RAM: 256MB RAM
Flash Memory: 8GB
Display: 3.7 inch LED, 640×480 resolution
GNSS featuresDual frequency GPS+GLONASS
Support Compass system
Integrate SBAS (WAAS, EGNOS, MSAS)
Time for the first fix(TTFF): 30 seconds
Update rate: 1HZ (support higher frequency)
Position AccuracySingle point positioning2m
SBAS1< 50 cm
Reference station differential2cm
Static surveying5mm±1ppm
Application functionsIntegrated 3G communication module
5 million pixel camera with LED
Built-in microphone & speaker
Integrated G-sensor
Integrated laser plummetoptional
9 keys, with the four arrow keys and camera key
Data communicationBluetooth
Mini USB
WIFI:802.11b/g
MicroSD card slot, support up to 32GB
Power supply8800mAh lithium battery, online charging
Over 12 hours continuous work
Physical propertiesSize:236mm×105mm×62mm
Weight: 835g(with battery)
Operating temperature: -30ºC ~ +70ºC
Storage temperature: -40ºC ~ +80ºC
Dustproof/waterproof: IP67
Anti-shock: 1.5m free fall

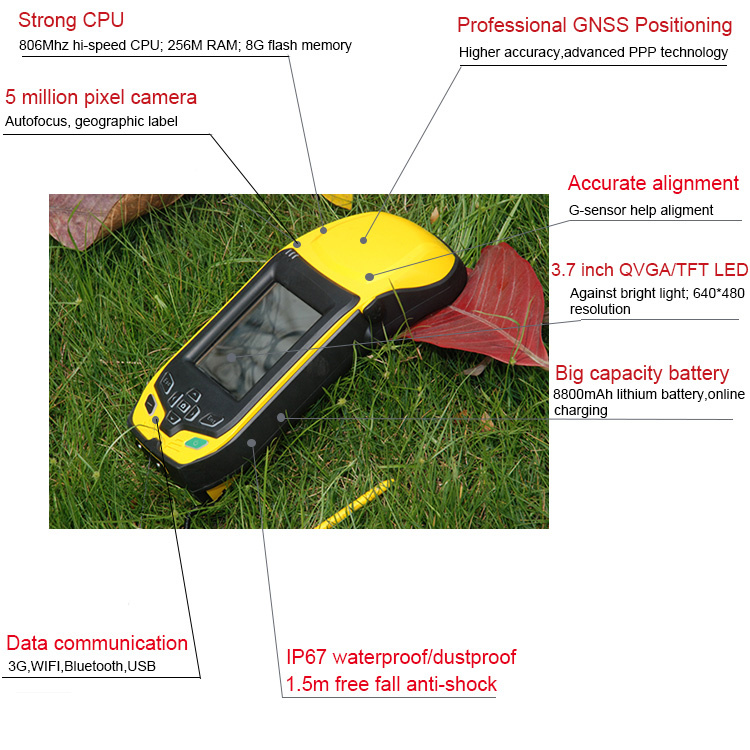

Advantages of the Handheld GPS Receiver:
1.The most portable handheld RTK
2.Centimeter level high accuracy
3.Dual frequency GPS+ GNSS positioning
4.Meet your surveying requirements even under hard environmental conditions and most extreme weather conditions


Applications of the Handheld GPS:
