Surveying and Construction Layout Gnss GPS Rtk Instruments
Price: |
US $ 0.1/Set |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
V30 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gnss Solutions: |
Gnss Antenna |
Surveying And Construction: |
Mapping and Gis |
Environment Studies: |
Geomarking |
Archaeology: |
Accident Reconstruction |
As-Built Surveys: |
Topographic Surveys |
Right-of-Way Surveys: |
Tentative Maps |
Electrical Distribution: |
Traffic Control Planning |
Traffic Signal Design: |
GPS Navigator |
GPS Navigation: |
Gnss Antenna |
Gnss Receive: |
Data Collector |
Type: |
GPS Navigator |
Use: |
Automotive&Hand Held |
Screen Size: |
2.5" |
Brand: |
Hi-Target |
Product Description

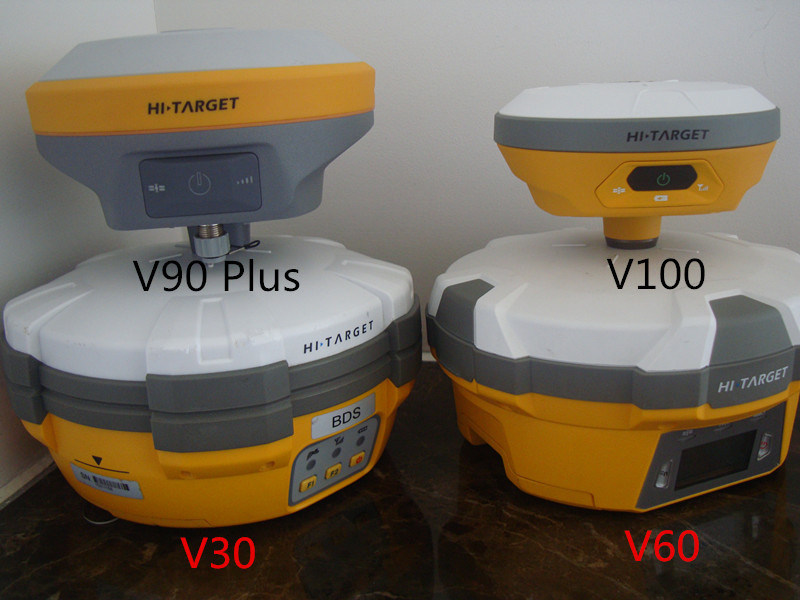

Surveying and Construction Layout Gnss GPS Rtk Instruments

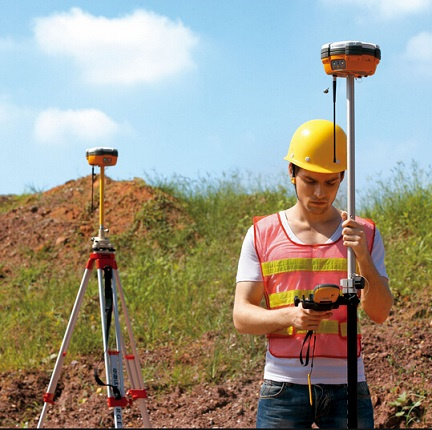

Main Application 1.Construction Layout
2.Electric power transportation
3.CORS application
4.CORS site
5.Control survey
6.Data collection
7.Water Measurement
8.Construction Positioning (water)
![](/proimages/44f3j00uTmabiQJZhow/surveying-and-construction-layout-gnss-gps-rtk-instruments.jpg)
Technical Parameters |
Measurements | 220 tracking channels |
Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology |
High precision multiple correlator for GNSS pseudo range measurements |
Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response |
Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth |
Signal-to-Noise ratios reported in dB-Hz |
Proven Pacific Crest low elevation tracking technology |
Satellite signals tracked simultaneously | GPS: Simultaneous L1C/A, L2C, L2E, L5 |
GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P |
SBAS: Simultaneous L1 C/A, L5 |
Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC |
BDS: B1, B2 |
QZSS: L1 C/A, L1 SAIF, L2C, L5 |
Positioning Accuracy | Static and Fast Static GNSS surveying | Horizontal: 2.5mm+0.5ppm RMS Vertical: 5mm+0.5ppm RMS |
Stop & Go GNSS surveying | Horizontal: 1cm+1ppm RMS Vertical: 2.5cm+1ppm RMS Initialization time: typically 10 minutes for base while 5 minutes for rover Initialization reliability: typically > 99.9% |
Realtime Kinematic(RTK) surveying | Horizontal: 8mm+1ppm RMS Vertical: 15mm+1ppm RMS Initialization time: typically < 8 seconds Initialization reliability: typically > 99.9% |
| Code Differential GNSS positioning | Horizontal: 25cm+1ppm RMS Vertical: 50cm+1ppm RMS SBAS[iv]:0.50mHorizontal,0.85m Vertical |
Hardware | Physical | 1.Dimensions (W x H): 19.50cm x 10.40cm(7.68 in x 4.09 in) 2.Weight: 1.3kg (2.86lb) with internal battery, internal radio, standard UHF antenna 3.Operating temperature: -45ºCto +65ºC (-49ºF to +149ºF) 4.Storage temperature: -55ºC to +85ºC (-67ºF to +185ºF) 5.Humidity: 100%, considering 6.Water/dustproof: IP67 dustproof, protected from temporary 7.immersion to depth of 1m (3.28ft). 8.Shock and Vibration: Designed to survive a 3m(9.84ft) natural fall onto concrete. 9. Storage: 64M |
Electrical | 1.Power 6V to 28V DC external power input 2.Power consumption 2.5W 3.Automatic Switching between internal power and external power 4.Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment 5.Internal battery life, Static 13 - 15 hours, RTK Rover (UHF/GPRS/3G) 10 - 12 hours and RTK Base 8 - 10 hours |
Communication | GPRS/GSM or 3G | Fully integrated, fully sealed internal GPRS/GSM or 3G Network RTK (via CORS) range20-50km |
HI-TARGET internal UHF radio (standard) | Frequency: 460 MHz with 116 channels Transmitting Power: 0.1W, 1W, 2W adjustable Transmitting Speed: Up to 19.2Kbps Working Range: 3~5Km typical, 8~10km optimal |
PacificCrest XDL micro Internal UHF Radio (Optional) | Frequency: 403~473 MHz Transmitting Power: 0.5W, 1.0W, 2.0W adjustable Transmitting Speed: Up to 19.2Kbps Support most of radio communication protocol Working Range: 3~5km typical, 8~10km optimal |
HI-TARGET External UHF radio (standard) | Frequency: 460 MHz with 116 channels Transmitting Power: 5W, 10W, 20W, 30W adjustable Transmitting Speed: Up to 19.2Kbps Working Range: 8~10Km typical, 15~20km optimal |
Pacific Crest ADL Vantage Pro External UHF radio (Optional) | Frequency: 390~430 MHz or 430~470 MHz Transmitting Power: 4W to 35W adjustable Transmitting Speed: Up to 19.2Kbps Support most of radio communication protocol Working Range: 8~10Km typical, 15~20km optimal |
