| Prod Model: |
V100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions (W X H): |
19.50cm X 10.40cm(7.68 in X 4.09 in) |
| Weight: |
1.3kg (2.86lb) with Internal Battery, Internal Rad |
| Humidity: |
100%, Considering |
| Water/Dustproof: |
IP67 |
| GPS: |
L1c/a, L2c, L2e, L5 |
| Glonass: |
L1c/a, L1p, L2c/a (Glonass M Only), L2p |
| Sbas: |
L1 C/a, L5 |
| Galileo: |
L1 Boc, E5a, E5b, E5 |
| Bds: |
B1, B2 |
| Qzss: |
L1 C/a, L1 Saif, L2c, L5 |
| Type: |
GPS Navigator |
| Use: |
Automotive&Hand Held |
| Screen Size: |
2.5" |
| Brand: |
Hi-Target |
Product Description
Rtk GPS Navigation Device for Land Survey, Construction Topographic Equipment for sale V100 GNSS RTK SYSTEM

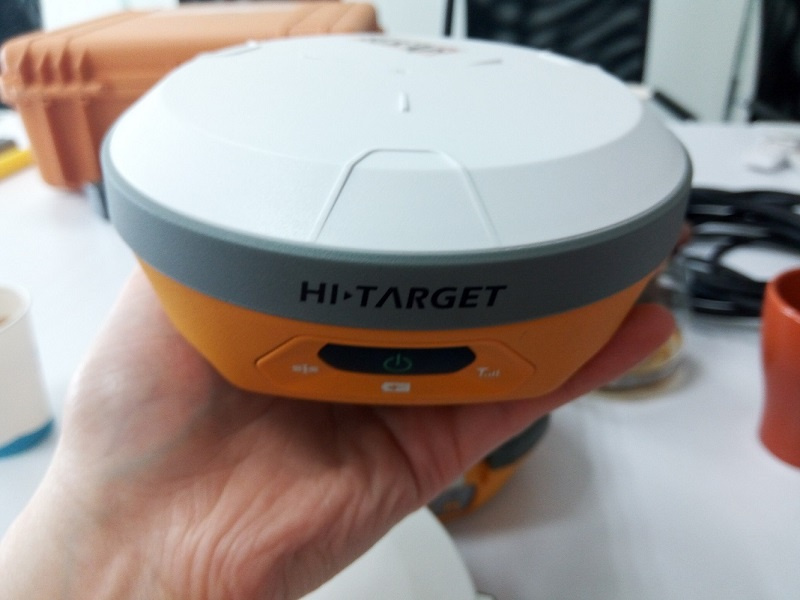

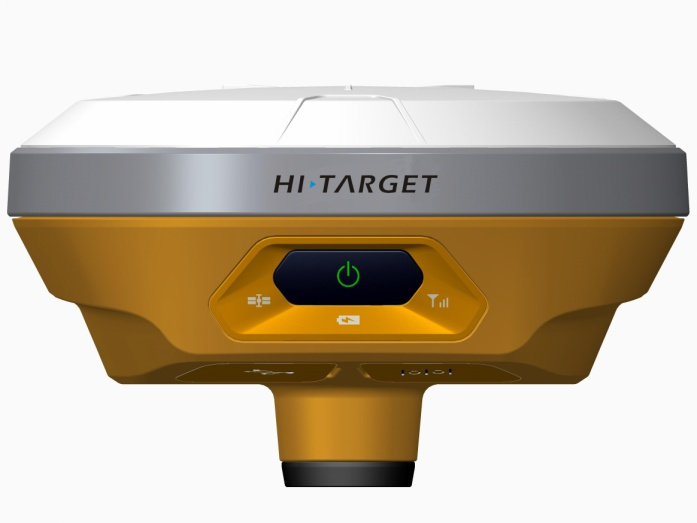

Compact, easy-to-use, network RTK. The V100 is a compact, lightweight and intelligent GNSS RTK Receiver. The built-in whole constellation BD970 OEM board, 4.0 standard dual-mode long-range Bluetooth and NFC module, data collection internet support and Hi-Target Cloud service make this the most convenient and efficient receiver for the network age.
System Features:
Multi-constellation Tracking220 tracking channels
Supports GPS, GLONASS, GALILEO, BDS, SBAS
NGS approved GNSS antenna Convenient ConnectionNFC function enables Bluetooth to connect in one second.
4.0 standard dual-mode long-range Bluetooth, compatible with 2.1 standard Bluetooth. Powerful Battery Powered by high-capacity (6300mAh) Li-ion battery to ensure full day operation
Support power bank to charge, the battery can be used universally with iHand20 batteryTechnical Specification:POSITIONING PERFORMANCE
Real Time Kinematic(RTK) Surveying
Horizontal............….. 8mm+1ppm RMS
Vertical................. 15mm+1ppm RMS
Initialization time.....Typically < 8 seconds
Initialization reliability....Typically > 99.9%
Code Differential GNSS Positioning
Horizontal............…. 25cm+1ppm RMS
Vertical...............… 50cm+1ppm RMS
SBASiii...… 0.50m Horizontal, 0.85m Vertical
Static and Fast Static GNSS Surveying
Horizontal............2.5mm+1ppm RMS
Vertical................ 5mm+1ppm RMS
HARDWARE
Physical
Dimensions(WxH)....127.5mm×57mm (5.02inch x 2.24inch)
Weight...…700g (1.54lb) including internal battery
Operating temperature...…. -40ºCto +65ºC (-40ºF to +149ºF)
Storage temperature....... -40ºC to +75ºC(-40ºF to +167ºF)
Humidity............…. 100%, considering
Water/dustproof........... IP67 dustproof, protected from temporary immersion to depth of 2m (6.56ft).
Shock and vibration......…Designed to survive a 3m(9.84ft) natural fall onto concrete.
Electrical
Power consumption 3.2W
Rechargeable, removable 3.7V/6300mAh Lithium-ion battery, supports online charging
Power input: 4.5V-5.5V/ 2A DC (USB), 6V-28V/2A DC (5 pin port)
Data storage.........…8GB Internal storage
Internal Battery Life
Static 13 hours
RTK Rover (Data collector internet) 10 hours
I/O Interface
1 x mini USB port, for data downloading, power supply and firmware upgrading
1 x 5-pin port, for NMEA output, DC power supply and external devices
Communication
Dual-mode Bluetooth 4.0, compatible with Bluetooth 2.1, 2.4GHz
NFC (Near Field Communication)
Hi-Target/ Pacific Crest ADL Vantage pro external radio (optional)
Data Formats
1Hz positioning output, up to 20Hz
CMR: CMR, CMR+, sCMRx input and output
RTCM: RTCM 2.1, 2.3, 3.0, 3.1, 3.2 input and output
Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
Navigation outputs binary: GSOF
Application: Construction Lay Out
Abundant point and line lay out function, assistant by graph operation instruction, save your expenditure in practical construction. Electricity and Transportation Friendly function on power line route direction survey, distance survey and angle calculation; comprehensive survey functionality on road survey, center line, offset survey, profile and cross-section survey.
CORS Application Seamlessly compatible with CORS system, only one RTK rover can receive CORS difference signal and carry out data collection, construction lay out work. CORS Station Establishment HD-CORS apply profound experience and mutual technology, stable on operation, long distance on data transmission, is yur first choice for city continuous reference stations system.
Control Survey Only one investment you can get list of function, v30 dual frequency static survey accuracy can satisfy any requirements, config with mutual professional data solution software. You can easily accomplish various high precision control survey work. Data conllection Cotroller operation software designed for GIS application, convenient coding function, meets all your requirements in field data collection work.
