Name: Printer 10W 20W 30W Laser Marking Machine
Brand: all-electronics-online.com
SKU: 837805735
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	US $ 2800-3800piece
Min Order:	1piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Bk-G20
Products Name:	Printer 10W 20W 30W Laser Marking Machine
Marking Speed:	1-7000mm/S
Power Supply:	90-260V/50Hz-60Hz

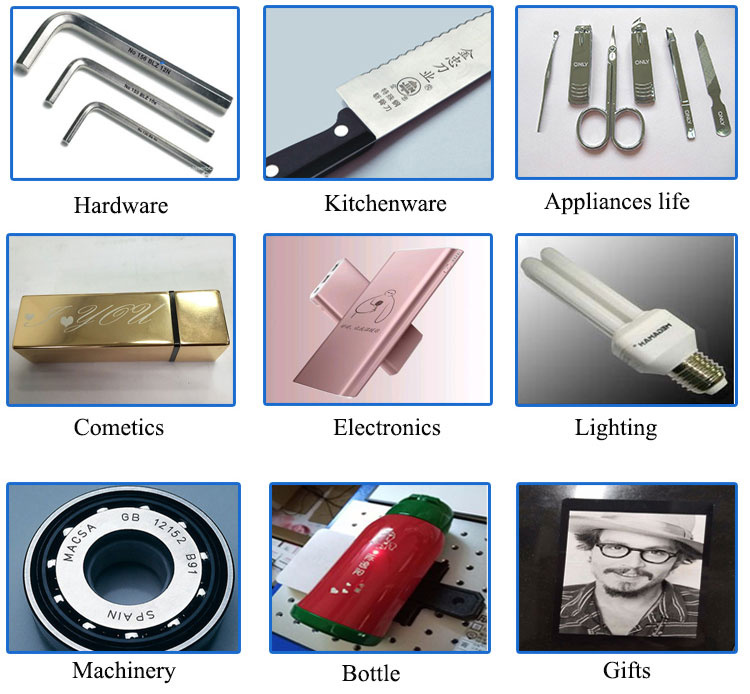

Marking Content:	Bar Code, Two-Dimensional Code, Text ,Photo, Logo
Laser Source:	Max/Ipg/Raycus
Operation System:	Windows System
Operation:	Video Teaching
Net Weight:	95kg
Certificates:	Ce FDA SGS ISO
Warranty:	2 Years

Product Description

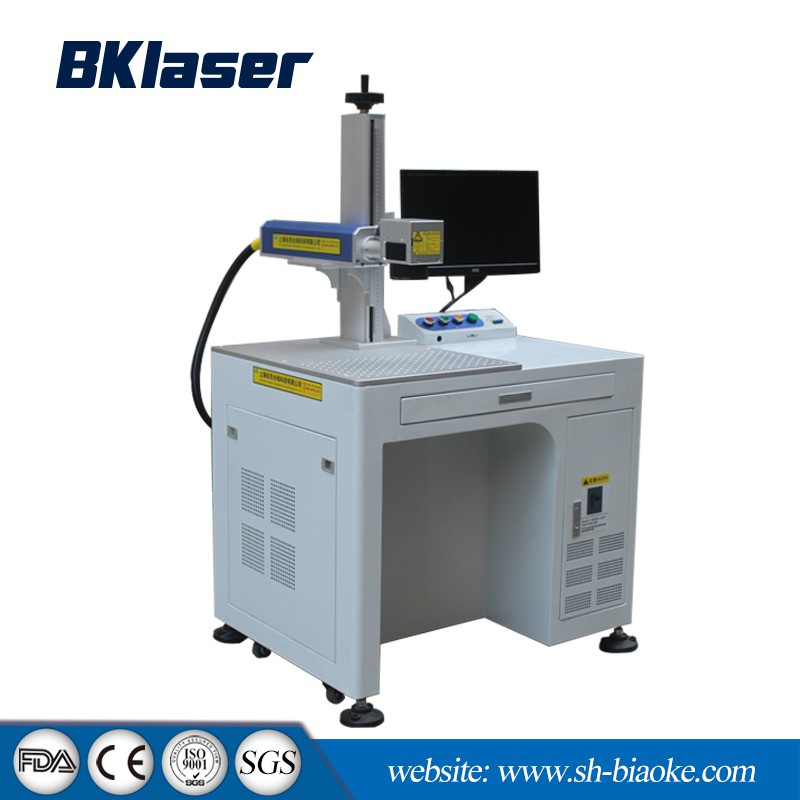

Printer 10W 20W 30W Laser Marking Machine

Product Name	Printer 10W 20W 30W Laser Marking Machine
Model	BK-G20
Power	20W
Laser Wavelength	1064nm
Frequency Range	20-80KHZ

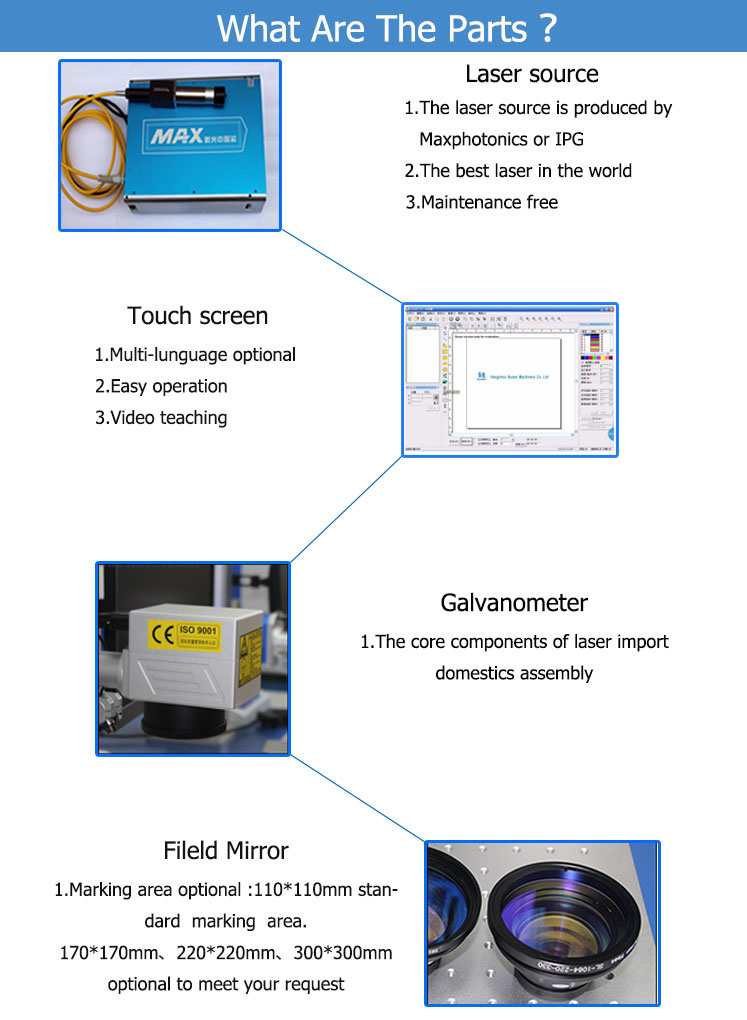

Laser source	Max/Ipg (Best quality, stably laser supply)
Engraving Line Speed	≤7000mm/s
Minimum Width	0.03mm(Depends on the material)
Minimum Character	0.3mm(Depends on the material)
Repeat Accuracy	±0.003mm
Power supply	90-260V/50Hz-60Hz
Operating Software	EZCAD/JCZ software (Optional language)
Engrave Depth	≤0.3mm
Operation System	Windows system
Cooling Mode	Built in air cooling
Engrave Range	Standard 110110mm(optional 140140mm 200*200mm-300x300mm)
File Formats	All fonts in WINDOWS system
Machine Total Weight	N.W 95Kg / G.W 135Kg
How to use machine?	Video Teaching

Packing
E: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the marking machine is covered by foam, to protect the machine from shaking. For the inside layer, the Portable machine is covered by thickening plastic bag for waterproof.

Transportation
E: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Installing the marking machine
E: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the marking machine.95%customers can learn by themselves.

How can I do if the marking machine goes wrong?
E: If confronted with such problems, please contact us ASAP and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
