CNC Fiber Laser Marking Machine

Name: CNC Fiber Laser Marking Machine
Brand: all-electronics-online.com
SKU: 840304805
Availability: InStock
Rating: 4.4 (113 reviews)

Price:	US $ 11000-15000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Bk-
Laser Source:	Max
Certificates:	Ce FDA SGS ISO
Xyz Route:	3025mm/1525mm/100mm
Wave Length:	1070-1080nm
Material Cutting Thickness:	0.2-30mm
Positioning Accuracy:	0.05mm/500mm
Accelerated Speed:	25m/Min
Max.Moving Speed:	60000mm/Min
Operation:	Video Teaching/Manual
Machine Weight:	2300kg

Product Description

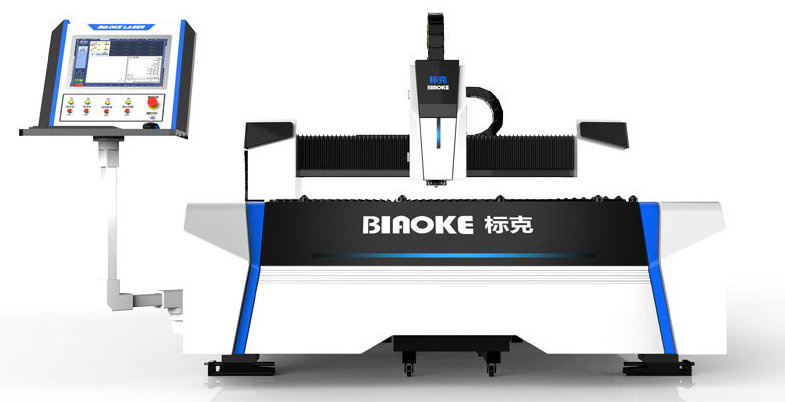

500W 800W 1000W Cnc Fiber Metal Laser Cutting Machine Price

1.Application Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon
Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate,
Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

2.Machine parameters:

Laser type	500W 800W 1000W Cnc Fiber Metal Laser Cutting Machine Price
Power	500W/800W/1000W/1500W
Wave length	1070-1080nm
Electro-optical conversion efficiency	25-30%
XYZ Route	3025mm/1525mm/100mm
Material Cutting thickness	0.2-8mm
Cutting seam width	0.1-0.2mm
Repeat position accuracy	±0.05mm/500mm
Positioning accuracy	±0.05mm/500mm
Max Speed	60000mm/min
Max.Accerlation speed	25m/min
Max.loading weight	500kg
Machine weight	2300kg
Required Power	220V 50Hz/60Hz
Machine size(LWH)	4500mm2450mm1700mm

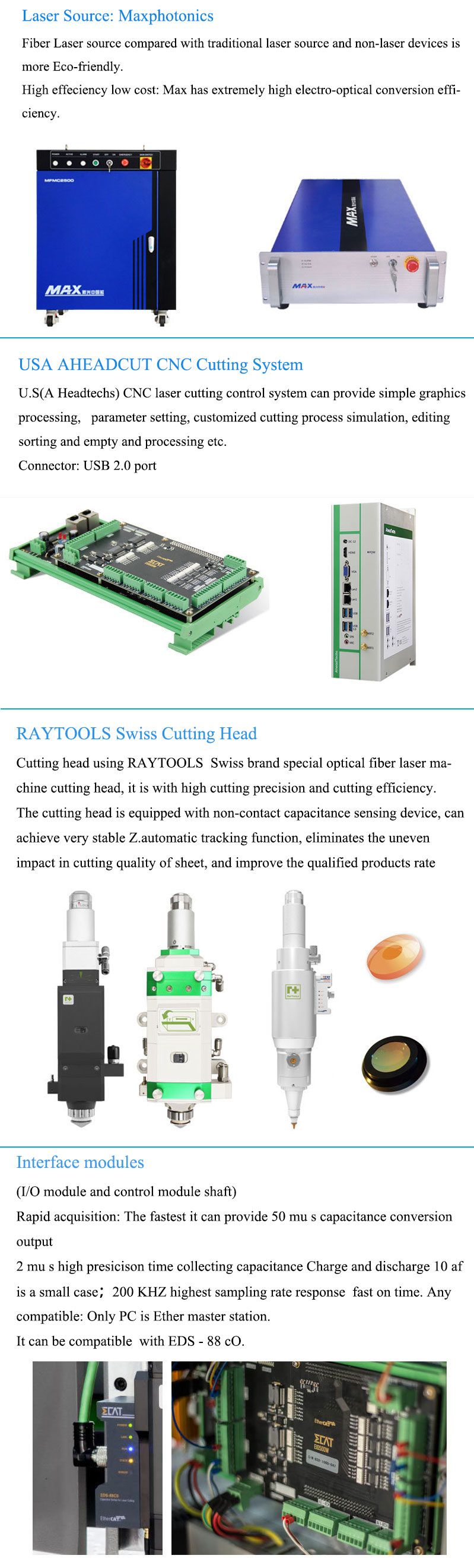

Configuration of fiber laser cutter:

Description	Qty	Original	Brand
1	Fiber laser source (500W/800W)	1SET	China	MAX
2	Laser cutting head	1PC	Switzerland	RAYTOOLS
3	Machine bed and accessories	1SET	China
4	Electric control	1SET		OMRON,Schneider
5	Gas circuit control	1SET	Japan	SMC
6	Precise Rack	Each 3SETS	China
7	Precise linear guide rail	Each 3SETS	Taiwan	PMI
8	Planetary Gear	3SET	China
9	Machine bed accessories	1SET	China
10	Digital cutting system	1SET	USA	AHEADCUT
11	Industrial control computer	1SET	China	AHEADCUT
12	Communication servo and driver	4SETS	China
13	Cooling Unit	1SET	China
14	Waste recycling equipment	1SET	China

Special attention:

Nitrogen and air is suitable for cutting Stainless steel. Cooling fast, laser not change the metal color.
Carbon steel is available with oxygen. 2 mm or less, Use air and nitrogen. Can't damage the metal quality.
Use air to cut brass.

1) This is the first time I use this kind of machine, is it easy operate?
There are English manual or guide video that show how to use machine.

2) If machine have any problem after I ordered it, how could I do?
We all have the experience to solve the problem of the machine. If your machine have any problem,
please contact us immediately. we will reply you within 24 hours.Free replacement parts during warranty.

3) We will track your satisfaction with machine use every month.

Thanks for your attention.
You can place an order or ask question by send the inquiry.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Main business: Laser marking machine, laser cutting machine, laser welding machine, Laser cleaning machine and a series of testing machine.

Our products exported to Japan, South Korea, Spain, Italy, Brazil, Chile, Jordan, India, Ukraine and other countries.

We have CE ISO FDA SGS Cerficate about our laser products.

We will serve better service for our company.

Welcome to join us.
