Coconut Shell Button CO2 Laser Marking Machine

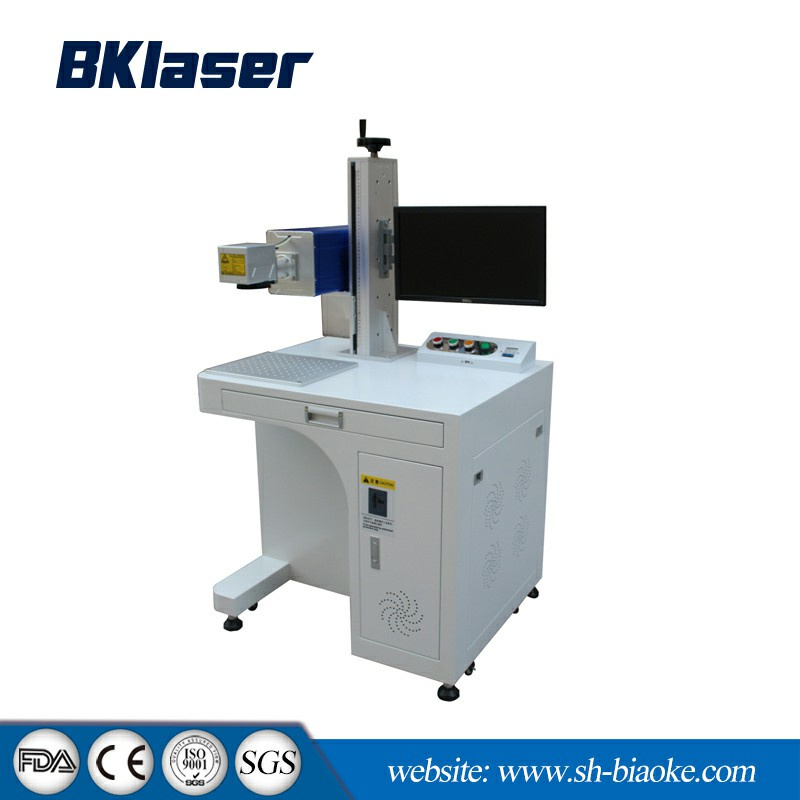

Name: Coconut Shell Button CO2 Laser Marking Machine
Brand: all-electronics-online.com
SKU: 839647435
Availability: InStock
Rating: 4.4 (108 reviews)

Price:	US $ 3500-8500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BK-C10/30/50/100/150
Repetition Frequency:	20kHz-100kHz
Marking Speed:	<5000mm/S
Minimum Line Width:	0.1mm
Minimum Character:	0.4mm
Repeat Accuracy:	0.01mm
Carving Range:	110mm110mm/140140mm /200mm*200m Optional
Carving Depth:	<2~8mm
Power Supply:	AC220V/50Hz/8A
Cooling Method:	Air Cooling
Consumed Power:	500W/1200W/2000W/4000W

Product Description

Co2 laser marking machine reference data table

Model	BK-C10/BK-C30/BK-C50/BK-C100/BK-C150
Laser	10W/30W/50W/100W/150W
The Lasers maker	Synrad
Laser Wavelength	10.64μm
Repeat Frequency	20-100KHZ
Engraving Line Speed	≤5000mm/s
Repeat Precision	±0.01mm
Minimum Line Width	0.1mm
Minimum Character	0.4mm
Marking The Maximum Height	300mm
Power Supply	220V/50Hz
Engraving Depth	≤2mm/≤3mm/≤5mm/≤8mm
Cooling System	Built-in air cooling system&Water cooling
Instructions	Video instructions&instructions book
Power Consumption	500W/1000W
Standard Engraving Range	110110mm/140140mm/300300mm/12001200mm

Material	CO2 Laser machine	Material	fiber laser machine
Wood	√	Aluminum	√
Acryic	√	Stainless Steel	√
Fabric	√	ABS	√
Glass	√	Brass	√
Coated Metals	√	Carbon Fiber	√
Ceramic	√	Carbon Nanotube	√
Delrin	√	Cobait Chorme Steel	√
Cloth	√	Copper	√
Leather	√	Colored Delrin	√
Marble	√	Diallyl Phthalate	√
Matte Board	√	Gless Filled PPEK	√
Melamine	√	Gless Filled Telfon	√
Paper	√	Magnesium	√
Mylar	√	Metal Plated Ceramics	√
Press Board	√	Molybdenum	√
Rubber	√	Mild Steel	√
Wood veneer	√	Nylon	√
Fiber Glass	√	Polybutylene Terephthalate	√
Paintde Metals	√	Polysulphone	√
Title	√	PET	√
Plastic	√	Santoprene	√
Cork	√	Silicon Carbide	√
Corian	√	Silicon Steel	√
Anodized Aluminum	√	Silicon Wafers	√

FAQ

Q: What's the package?

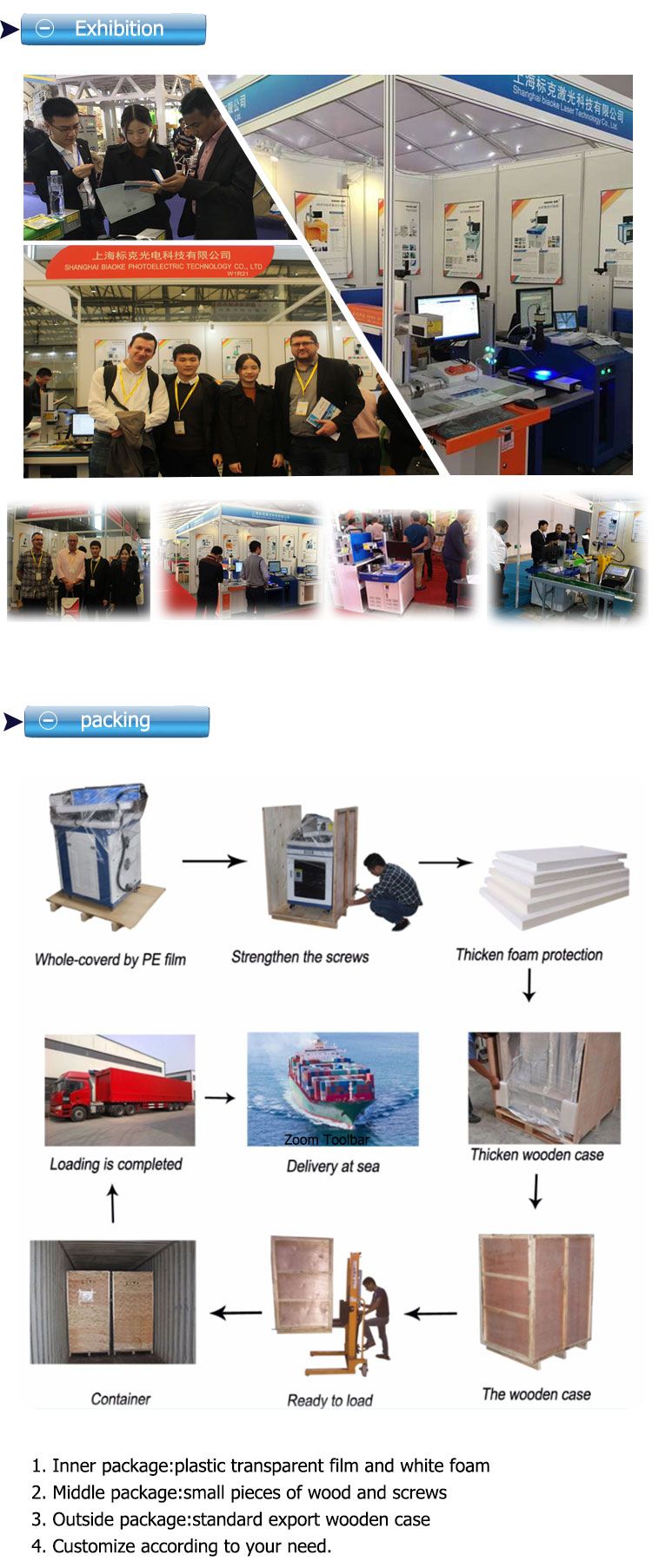

A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

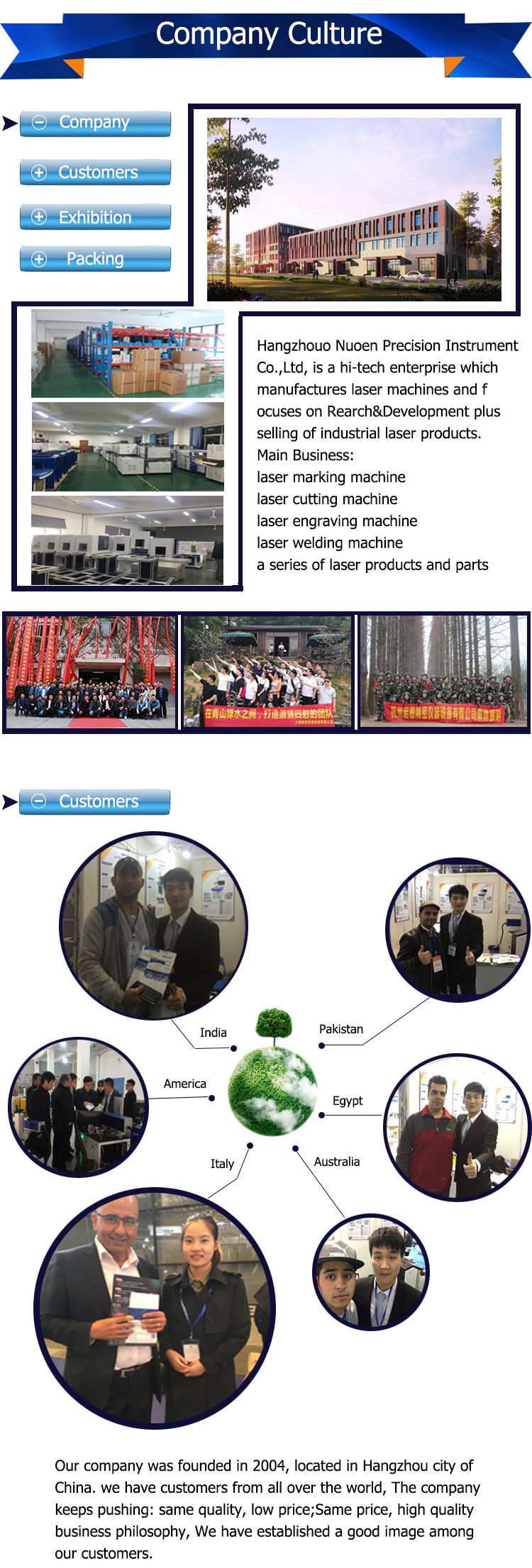

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Main business: Laser marking machine, laser cutting machine, laser welding machine, Laser cleaning machine and a series of testing machine.

Our products exported to Japan, South Korea, Spain, Italy, Brazil, Chile, Jordan, India, Ukraine and other countries.

We have CE ISO FDA SGS Cerficate about our laser products.

We will serve better service for our company.

Welcome to join us.
