| Prod Model: |
BK-G20 |
| Laser Source: |
Max, Ipg |
| Marking Speed: |
7000mm/S |
| Marking Depth: |
0-1mm |
| Marking Range: |
100*100mm(Standard) |
| Min Character: |
0.3mm |
| Warranty: |
2 Years |
| OEM/ODM: |
Accepted |
| Operating System: |
Windows 7 |
| Color: |
Blue, White or Custom |
| Support Format: |
Plt, Ai, BMP, Psd, Dxf, etc. |
Product Description

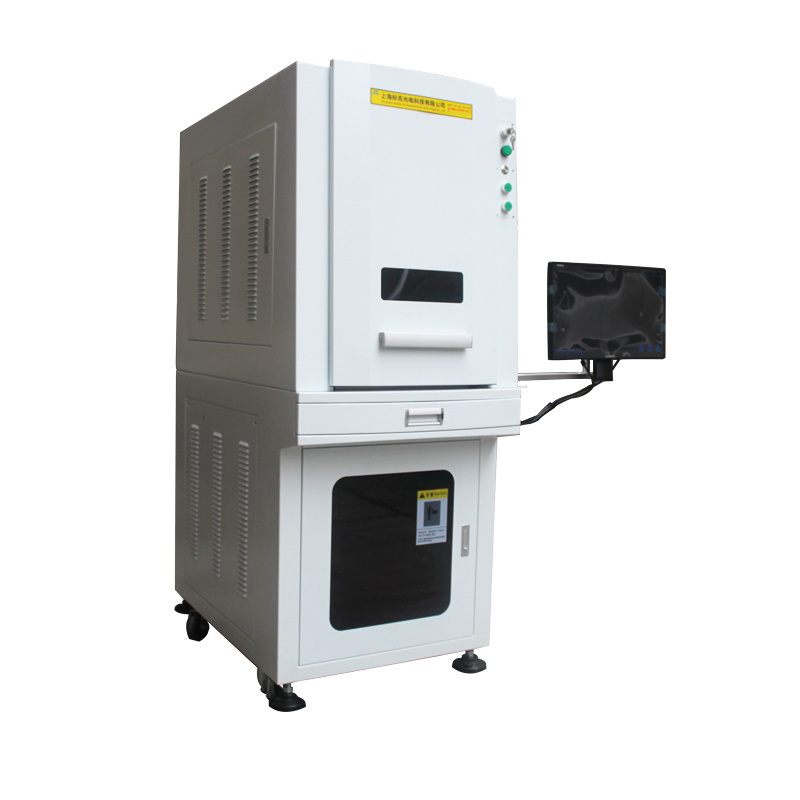

30W fiber laser marking machine on metal
Characteristics:1. The utility model can be applied to small or small size and easy moving workpiece. The utility
model can mark all metal materials and a part of non-metal materials, and the marking effect is
clear and beautiful, and the marking speed is 2-3 times as high as that of a traditional
semiconductor laser marking machine. The model does not need an external water cooling system,
and can be adapted to the environment where the environment is bad and the temperature drop is
great. 2. Processing speed is 2-3 times the traditional laser marking machine.3. Air cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate,
small power consumption (less than 800W), the use of low cost.4. Integrated pulley design with reasonable design which can be easy to moved, it adapt to a wide
range of factory layout and flexible product laser printing.5. It has strong environmental adaptability and it can work continuously under the environment of
shock, shock, dust and humidity. It is easy to realize the coupling with the optical fiber, and can
realize long distance work.6. It can mark bar code, two-dimensional code, text, graphics, regular and irregular transaction.7. Software runs on WINDOWS platform, Chinese / English interface, compatible with AUTOCAD,
CORELDRAW, PHOTOSHOP and other software file formats, such as PLT, PCW, DXF, BMP and
so on, and also can use SHX and TTF fonts directly.Technical Parameters| Model | BK-G10 | BK-G15 | BK-G20 | BK-G30 | BK-G50 |
| Power | 10W | 15W | 20W | 30W | 50W |
| Laser Wavelength | 1064nm |
| Frequency Range | 20-80KHZ |
| Beam Quality | <2 | <3 | <5 |
| Engraving Line Speed | ≤7000mm/s |
| Minimum Width | 0.03mm(Depends on the material) |
| Minimum Character | 0.3mm(Depends on the material) |
| Repeat Accuracy | ±0.003mm |
| Power supply | 90-260V/50Hz-60Hz |
| The Highest Marking Workpiece | 300mm(Select 170*170mm ,Highest 250mm) |
| Power Consumption | 500W | 1000W |
| Engrave Depth | ≤0.3mm | ≤0.5mm | ≤1.0mm |
| Operation System | WinXP/Win7 |
| Cooling Mode | Built in air cooling |
| Engrave Range | Standard 110*110mm(optional 140*140mm 200*200mm-300x300mm) |
| File Formats | All fonts in WINDOWS system |
| Contour Size of The Unit(s) | Contour Size :650*800*1450mm(width*Depth*Height)
Movements itinerary :500mm
operating platform :320*280mm |
| Machine Total Weight | 95Kg |

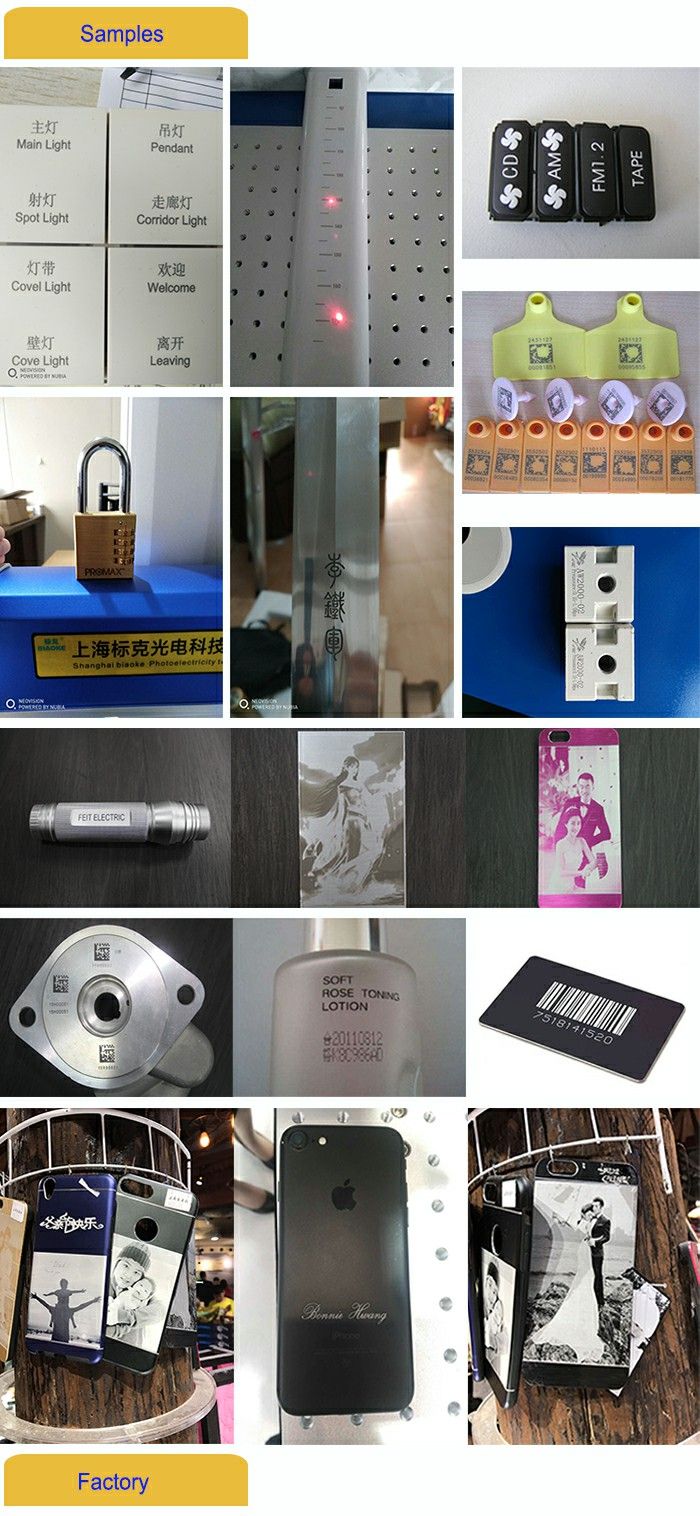

Our Fiber Laser Marking Machine is widely applied in many areas.
| 1. Sheet metal fabrication | 6. Elecrical cabinet | 11. Elevator |
| 2. Automotive parts | 7.Aviation&Aerospace | 12. Lighting lamps |
| 3. Metal carfts & decoration | 8. Hardware | 13. Advertising |
| 4. Furniture | 9. Kitchen ware equipment | 14. Fitness equipment |
| 5. Medical equipment | 10. Agricultural machinery | 15. watches & glassware |

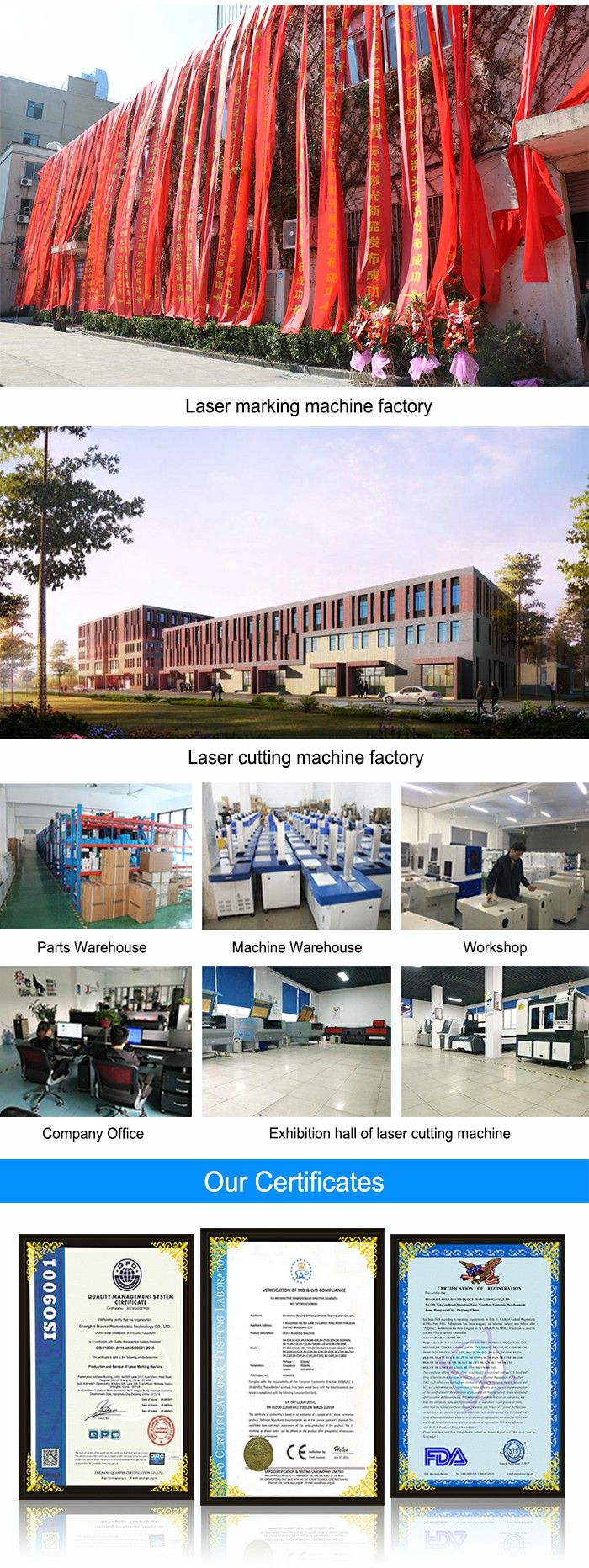

Biaoke Laser Technology(Hangzhou) Co., Ltd. is a national high-tech enterpriseintergrating
with R&D, manufacturing and selling. Our company has 12-year experience in lasermarking &
cutting machine. The main products: fiber laser marking machine, CO2 laser markingmachine, UV
laser marking machine, fiber laser cutting machine, co2 laser cutting machine, etc. We have the
CE, ISO, FDA, SGS Cerficate. So our machine used around the golbe in a myriad of markets, such
as Germany, Korea, France, Italy, India, Brazil, Arab, Egypt, etc.
Our Service
Pre-sales services
a. Inquiring and consulting support;
b. Sample testing support;
c. Visiting our factory.
After-sales services
a. 2 year guarantee period for product quality;
b. Free training for machines installation and operation;
c. Lifelong maintenance and spare parts supply.
Q: I know nothing about the laser marking machine, what kind of machine I should choose?
A: Just tell us what you want to do using this machine. And sending us a sample picture is
better. Then we will send you a perfect solutions and suggestions.
Q: Are you a factory or trading company?
We are a factory, we also have a trading company and another factory.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation,
we will send detail training video, user's manual along with the machine. 95% customers can
learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by
yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the
machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine
is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping
agent have full experienced in safe transportation. We have exported to 180 countries worldwide.
So please don't worry, you will receive the parcel in good condition.
