| Prod Model: |
V30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channel: |
220 |
| GPS: |
L1c/a, L2c, L2e, L5 |
| Glonass: |
L1c/a, L1p, L2c/a (Glonass M Only), L2p |
| Sbas: |
L1 C/a, L5 |
| Galileo: |
L1 Boc, E5a, E5b, E5altboc |
| Bds: |
B1, B2 |
| Qzss: |
L1 C/a, L1 Saif, L2c, L5 |
| Rtk Horizontal: |
8mm+1ppm RMS |
| Vertical: |
15cm+1ppm RMS |
| Dimensions: |
19.50cm X 10.40cm(7.68 in X 4.09 in) |
| Type: |
GPS Navigator |
| Use: |
Automotive&Hand Held |
| Screen Size: |
2.5" |
| Brand: |
Hi-Target |
Product Description

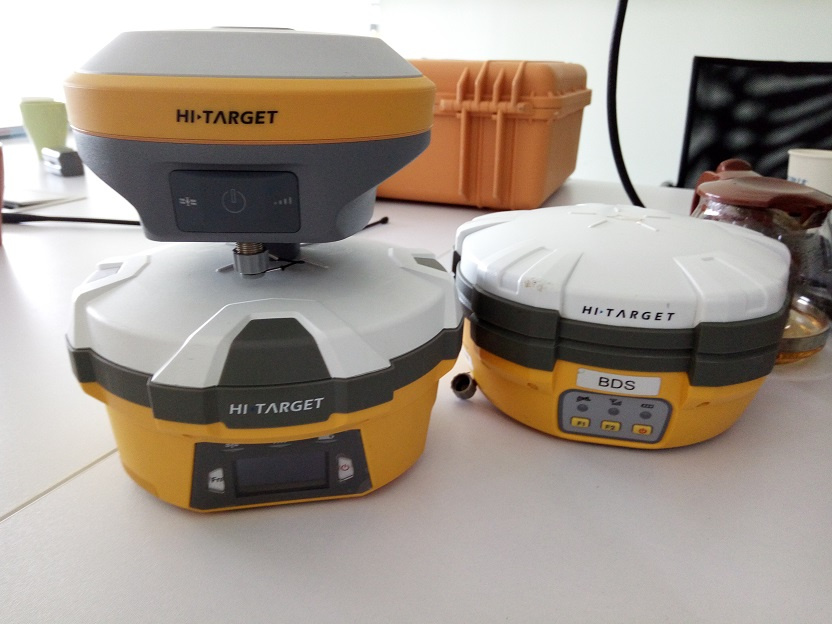

Hi-target V30 GPS Surveying Equipment Centimeter-level Accuracy GPS Best Navigation GPS Rtk Rtk GnssV30 GNSS RTK system
The V30 GNSS RTK system is designed to meet high quality standards at an affordable price. It is outstanding in its class, with a rugged design and user-friendly functions
Ten Unique Innovatins of V30 GNSS RTK SURVEYING SYSTEM GPS1 Internationally leading PCC BD970 multi-satellite,multi-system kernel
2 built-in transmitter-receiver,exchangeable base and rover
3 ORIGINAL 1+x MULTI-MODULE COMMUNICATION UNITS IN THE INDUSTRY
4 eXTREME Distance plug in radio station optional
5 Strongest waterproof,dustproof, broken-resistantperformance in the industry
6 With intelligentialized self-diagnosis function
7 Double battery capacity,with 4400 mAh capacity fo a single battery
8 Original double GPRS communication function in the industry optinal
9 Comfig multi-function RT controlle iHand 10 series
10 Original voice navigation RTK controller software in the industry | Technical Parameters |
Measurements |
220 tracking channels |
| Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology |
| High precision multiple correlator for GNSS pseudo range measurements |
| Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response |
| Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth |
| Signal-to-Noise ratios reported in dB-Hz |
| Proven Pacific Crest low elevation tracking technology |
Satellite signals tracked simultaneously | GPS: Simultaneous L1C/A, L2C, L2E, L5 |
| GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P |
| SBAS: Simultaneous L1 C/A, L5 |
| Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC |
| BDS: B1, B2 |
| QZSS: L1 C/A, L1 SAIF, L2C, L5 |
Positioning
Accuracy |
Static and Fast Static GNSS surveying | Horizontal: 2.5mm+0.5ppm RMS
Vertical: 5mm+0.5ppm RMS |
| Stop & Go GNSS surveying | Horizontal: 1cm+1ppm RMS
Vertical: 2.5cm+1ppm RMS
Initialization time: typically 10 minutes for base while 5 minutes for rover
Initialization reliability: typically > 99.9% |
| Realtime Kinematic(RTK) surveying | Horizontal: 8mm+1ppm RMS
Vertical: 15mm+1ppm RMS
Initialization time: typically < 8 seconds
Initialization reliability: typically > 99.9% |
| | Code Differential GNSS positioning | Horizontal: 25cm+1ppm RMS
Vertical: 50cm+1ppm RMS
SBAS[iv]:0.50mHorizontal,0.85m Vertical |
Hardware
|
Physical | 1.Dimensions (W x H): 19.50cm x 10.40cm(7.68 in x 4.09 in)
2.Weight: 1.3kg (2.86lb) with internal battery, internal radio, standard UHF antenna
3.Operating temperature: -45ºCto +65ºC (-49ºF to +149ºF)
4.Storage temperature: -55ºC to +85ºC (-67ºF to +185ºF)
5.Humidity: 100%, considering
6.Water/dustproof: IP67 dustproof, protected from temporary
7.immersion to depth of 1m (3.28ft).
8.Shock and Vibration: Designed to survive a 3m(9.84ft) natural fall onto concrete.
9. Storage: 64M |
Electrical | 1.Power 6V to 28V DC external power input
2.Power consumption 2.5W
3.Automatic Switching between internal power and external power
4.Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment
5.Internal battery life, Static 13 - 15 hours, RTK Rover (UHF/GPRS/3G) 10 - 12 hours and RTK Base 8 - 10 hours
|
| | | | | |
Communication
| GPRS/GSM or 3G |
Fully integrated, fully sealed internal GPRS/GSM or 3G Network RTK (via CORS) range20-50km |
| HI-TARGET internal UHF radio (standard) | Frequency: 460 MHz with 116 channels
Transmitting Power: 0.1W, 1W, 2W adjustable
Transmitting Speed: Up to 19.2Kbps
Working Range: 3~5Km typical, 8~10km optimal |
PacificCrest XDL micro Internal UHF Radio
(Optional) | Frequency: 403~473 MHz
Transmitting Power: 0.5W, 1.0W, 2.0W adjustable
Transmitting Speed: Up to 19.2Kbps
Support most of radio communication protocol
Working Range: 3~5km typical, 8~10km optimal |
| HI-TARGET External UHF radio (standard) | Frequency: 460 MHz with 116 channels
Transmitting Power: 5W, 10W, 20W, 30W adjustable
Transmitting Speed: Up to 19.2Kbps
Working Range: 8~10Km typical, 15~20km optimal |
Pacific Crest ADL Vantage Pro External UHF radio
(Optional) | Frequency: 390~430 MHz or 430~470 MHz
Transmitting Power: 4W to 35W adjustable
Transmitting Speed: Up to 19.2Kbps
Support most of radio communication protocol
Working Range: 8~10Km typical, 15~20km optimal |
| | | | |
Features:1. Built-in transmit-receive UHF, exchangeable Base and Rover.
2. The radio power is adjustable to be 0.1w, 1w, 2w.
3. 1+X multi-module communication units.
4. PCC Radio module (optional) compatible with Trimble/Leica RTK.
5. Double battery capacity as 4400mAh, 12 hours for RTK operating.
6. The highest performance in waterproof, dustproof and anti-drop.
7. Trimble BD970 mother board, multi-satellite, multi-system kernel.
8. Supper long distance external radio(optional).
9. With the intelligentialized self-diagnosis function
10. Config Multi-function RTK controller iHand1 series. Voice navigation of RTK handheld software.
The combination of the top GNSS industry's technologies, V30 gives you completely innovative user experiene.

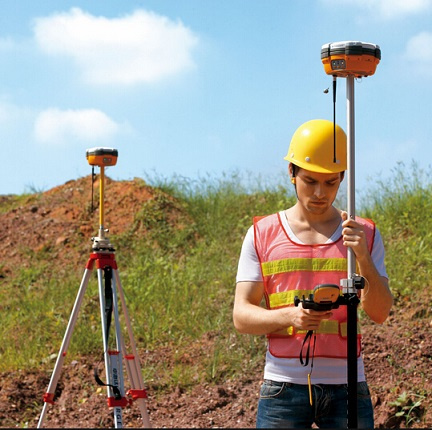

Application: Construction Lay Out
Abundant point and line lay out function, assistant by graph operation instruction, save your expenditure in practical construction.
Electricity and Transportation
Friendly function on power line route direction survey, distance survey and angle calculation; comprehensive survey functionality on road survey, center line, offset survey, profile and cross-section survey.
CORS Application
Seamlessly compatible with CORS system, only one RTK rover can receive CORS difference signal and carry out data collection, construction lay out work.
CORS Station Establishment
HD-CORS apply profound experience and mutual technology, stable on operation, long distance on data transmission, is yur first choice for city continuous reference stations system.
Control Survey
Only one investment you can get list of function, v30 dual frequency static survey accuracy can satisfy any requirements, config with mutual professional data solution software. You can easily accomplish various high precision control survey work.
Data conllection
Cotroller operation software designed for GIS application, convenient coding function, meets all your requirements in field data collection work.
