Hi-Target Gnss Rtk GPS Surveying for Land Surveying Grps/GSM for Vrs System Dual Frequency GPS Receiver
Price: |
US $ 0.1/Set |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Prod Model: |
V90 Plus |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gnss Solutions: |
Gnss Antenna |
Surveying And Construction: |
Mapping and Gis |
Environment Studies: |
Geomarking |
Archaeology: |
Accident Reconstruction |
As-Built Surveys: |
Topographic Surveys |
Right-of-Way Surveys: |
Tentative Maps |
Electrical Distribution: |
Traffic Control Planning |
Traffic Signal Design: |
GPS Navigator |
GPS Navigation: |
Gnss Antenna |
Gnss Receive: |
Data Collector |
Type: |
GPS Navigator |
Use: |
Automotive&Hand Held |
Screen Size: |
2.5" |
Brand: |
Hi-Target |
Product Description

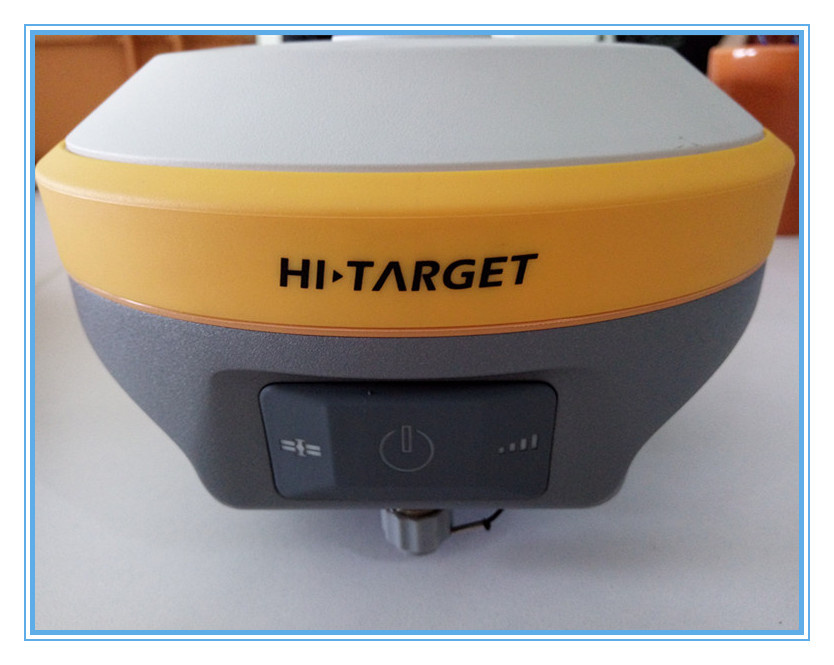

Hi-Target Gnss Rtk GPS Surveying for Land Surveying GRPS/GSM for VRS System Dual Frequency GPS ReceiverV90 Plus GNSS RTK System
With a hi-tech, fully integrated design, the conveniently sized V90Plus is one of the most flexible choices for any measuring task. Built-in Linux3.2.0 operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration, NFC and voice DIY, V90Plus GNSS system provides surveyor industry-leading GNSS solutions.
![](/proimages/44f3j00vTFQnqeKMibS/hi-target-gnss-rtk-gps-surveying-for-land-surveying-grps-gsm-for-vrs-system-dual-frequency-gps-receiver.jpg)
Features:
Small and lightweight Only weighs 950g.
Measures Diameter 153mm x Height 83mm.Multi-constellation Tracking 220 tracking channels
Supports GPS, GLONASS, GALILEO, BDS, SBAS

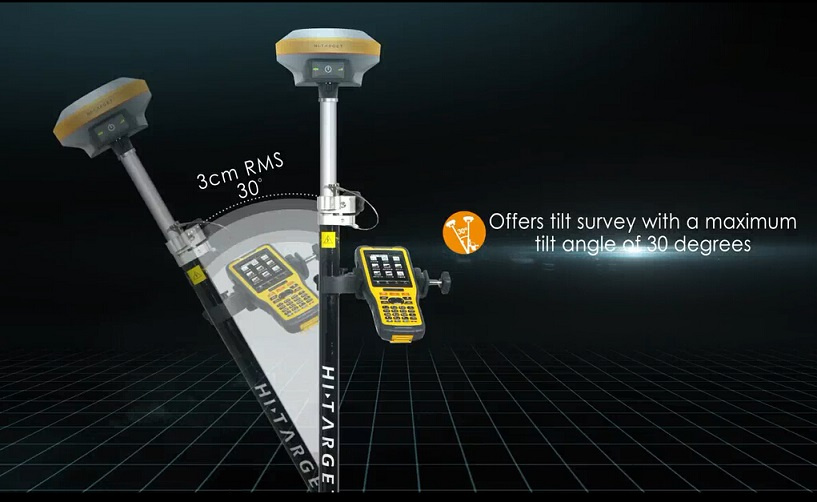

NGS approved full-band GNSS antennaSmart Application Offers tilt survey with a maximum tilt angle of 30 degrees.
Supports electronic bubble calibration
The internal NFC module makes Bluetooth communication quick and easy.Intelligent voice assistance guides field operations. Voice can be DIY.Standard Rinex data and HI-TARGET raw data recorded simultaneously.
Optional Transceiver UHF Radio The transceiver UHF radio enables switchable working modes between base and rover.
Three types of internal UHF radio provide different frequencies based on users requirements. The Pacific Crest TrimTalk© internal UHF radio is compatible with other radios.Multi-network ConnectionSupports GPRS, GSM and WCDMA
Supports WIFI
Powerful Battery
Powered by high-capacity (5000mAh) Li-ion battery to ensure full day operationRugged DesignIP67 dustproof and waterproof
Able to survive a 3-meter natural fall onto concrete
![](/proimages/44f3j00eENQyMvSSloK/hi-target-gnss-rtk-gps-surveying-for-land-surveying-grps-gsm-for-vrs-system-dual-frequency-gps-receiver.jpg)
Technical Parameters:Satellite Signals Tracked Simultaneously 220 Channels GPS...….. Simultaneous L1C/A, L2C, L2E, L5 GLONASS......…..Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P SBAS............. Simultaneous L1 C/A, L5 Galileo............ Simultaneous L1 BOC, E5A, E5B, E5AltBOC BDS..............................…. B1, B2 QZSS.............. L1 C/A, L1 SAIF, L2C, L5 POSITIONING PERFORMANCE Static and Fast Static GNSS Surveying Horizontal............2.5mm+0.5ppm RMS Vertical................ 5mm+0.5ppm RMS Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying Horizontal............….. 1cm+1ppm RMS Vertical............... 2.5cm+1ppm RMS Initialization time...….Typically 10 minutes for base while 5 minutes for rover Initialization reliability...Typically > 99.9% Real Time Kinematic (RTK) Surveying Single Baseline Horizontal............….. 8mm+1ppm RMS Vertical................ 15mm+1ppm RMS Network RTK Horizontal............….. 8mm+0.5ppm RMS Vertical................. 15mm+0.5ppm RMS Initialization time.....…Typically < 8seconds Initialization reliability....Typically > 99.9% Code Differential GNSS Positioning Horizontal............…. 25cm+1ppm RMS Vertical...............… 50cm+1ppm RMS SBAS ...… 0.50m Horizontal, 0.85m Vertical HARDWARE Physical Dimensions (W x H)....153mm x 83mm (6.02inch x 3.27inch) Weight...…950g (2.09lb) without internal battery Operating temperature...…. -40ºCto +65ºC (-40ºF to +149ºF) Storage temperature....... -40ºC to +75ºC(-40ºF to +167ºF) Humidity............…. 100%, considering Water/dustproof........... IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft). Shock and vibration......…Designed to survive a 2m(9.84ft) natural fall onto concrete. Electrical Power 6V to 28V DC external power input Power consumption ≤3.5W Automatic switching between internal power and external power Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery in internal battery compartment Internal Battery Life Static 12hours RTK rover (UHF/GPRS/3G) 8-10 hours RTK base 8 hours I/O Interface 1 xBluetooth, NFC 1 x standard USB2.0 port 1 x TNC antenna connector 1 x RS232 serial port 1 x DC power input (5-pin) Tilt Survey System Electronic Bubble COMMUNICATION Network Communication Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM Wifi frequency is 2.4G, supports 802.11b/g/n protocol Network RTK (via CORS) range20-50km HI-TARGET Internal UHF Radio(Standard) Frequency… 450~470MHz with 116 channels Transmitting power…0.5W, 1W, 2W adjustable Transmitting speed...….9.6Kbps, 19.2Kbps Working range.......3~5km typical, 8~10kmoptimal Pacific Crest XDL Micro Internal UHF Radio Frequency...............….403~473MHz Transmitting power......... 0.5W, 2W adjustable Transmitting speed......….. Up to 19.2Kbps Support most of radio communication protocol Working range............… 3~5km typical, 8~10km optimal HI-TARGET External UHF Radio (Standard) Frequency...... 460MHz with 116 channels Transmitting power.... 5W, 10W, 20W, 30W adjustable Transmitting speed......… Up to 19.2Kbps Working range.........…. 8~10km typical, 15~20km optimal Pacific Crest ADL Vantage Pro External UHF Radio Frequency…. 390~430MHz or 430~470MHz Transmitting power….. 4W to 35W adjustable Transmitting speed......….. Up to 19.2Kbps Support most of radio communication protocol Working range…. 8~10km typical, 15~20km optimal SYSTEM CONFIGURATION System Data storage.........…16GB Internal storage (Support up to 32GB external SD card) Record GNS and RINEX format simultaneously Data Formats 1Hz positioning output, up to 20Hz CMR: CMR, CMR+, sCMRx input and output RTCM: RTCM 2.1, 2.3, 3.0, 3.1, 3.2 input and output Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS Navigation outputs binary: GSOF Configuration List:V90 Plus Base List |
Item | Unit | Quantity | Remarks |
V90 Plus Mainframe | PCS | 1 | Mainframe |
BL-5000 Battery | PCS | 2 | Mainframe battery part |
CL-1220B adapter | PCS | 1 |
adapter cable | PCS | 1 |
CL-8410 charger | PCS | 1 |
TB-1 connector | PCS | 2 | Accessories |
UHF-46D Receiving antenna | PCS | 1 |
3G antenna (TNC type) | PCS | 1 |
TB-10 connecting pole | PCS | 1 |
Ruler for surveying antenna height | PCS | 1 |
3M ruler | PCS | 1 |
DDTHPB-46030 extrenal radio | PCS | 1 | Chinese external transmitting radio and related accessories |
PW-4 power cable for external radio | PCS | 1 |
DG-3 (3M) cable(3 meters) connecting base and radio | PCS | 1 |
UHF-460HN transmitting antenna | PCS | 1 |
RF-705T antenna cable | PCS | 1 |
Blue accessory bag | PCS | 1 |
Plastic case | PCS | 1 | Base package case |
CD | PCS | 1 | Manual |
V90 Plus Rover List |
Item | Unit | Quantity | Remarks |
V90 Plus mainframe | PCS | 1 | Mainframe |
BL-5000 battery | PCS | 2 | Mainframe battery part |
CL-1220B adapter | PCS | 1 |
Adapter cable | PCS | 1 |
CL-8410 charger | PCS | 1 |
iHand 20 controller | PCS | 1 | iHand20 controller and related accessories |
BL-6300A battery | PCS | 1 |
CL-6300B charger | PCS | 1 |
USB A-MINI CABLE | PCS | 1 |
HDT-4 controller try | PCS | 1 |
A3 TouchPen | PCS | 1 |
TB-1 connector | PCS | 1 | Accessories |
3G antenna (TNC type) | PCS | 1 |
UHF-46D receiving antenna | PCS | 1 |
Ruler for surveying antenna height | PCS | 1 |
survey pole(2.5m) | PCS | 1 |
Yellow plastic case | PCS | 1 | Rover package case |
CD | PCS | 1 | Manual |
HGO Manual | PCS | 1 |
V90 Plus electronic manual | PCS | 1 |
