| Prod Model: |
Qmini MP Handheld GIS Collector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation System: |
Microsoft Windows Mobile6.5 |
| Display: |
3.7 Inch LED |
| Camera: |
5 Million Pixel |
| RAM Storage: |
256m RAM |
| Flash Memory: |
8g |
| Satellite: |
Bds,GPS |
| Ttff: |
35 Seconds |
| Single Point Positioning Accuracy: |
5m |
| Communicatin Interface: |
Bluetooth,USB,WiFi,SD Card,3G Module |
| Weight: |
315g |
| Use: |
Hand Held |
| Type: |
Handheld GPS |
| Screen Size: |
3.7" |
| Chip: |
Contact for Details |
| Brand: |
Hi-Target |
| Certification: |
CE,FC |
Product Description

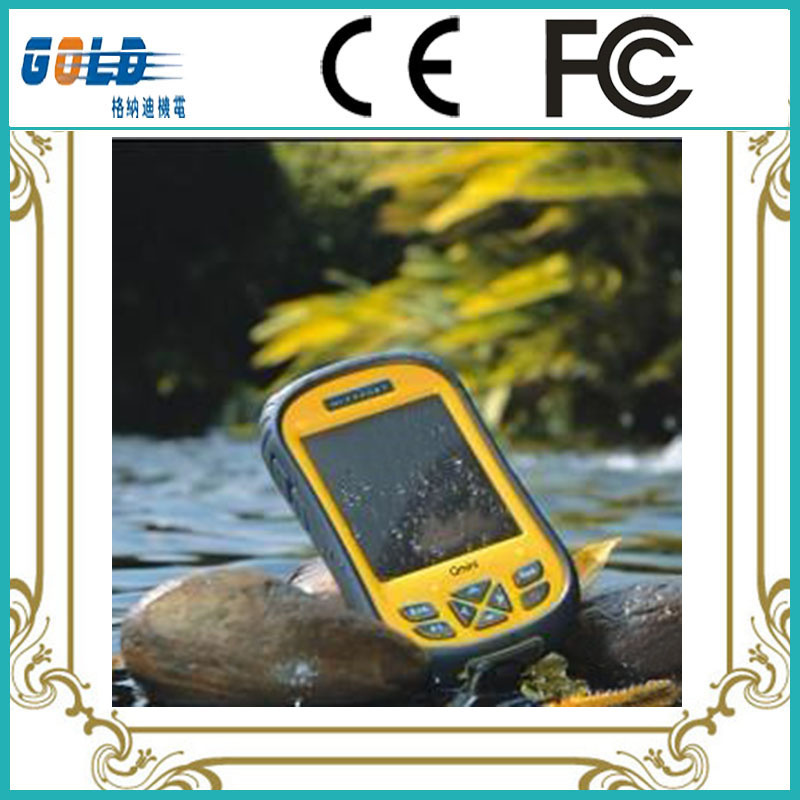

Cheap and Fine Land Survey Handheld Gis Collector/GPS ReceiverWith Windows Mobile 6.5 you may upload necessary utilities or software on your Qmini MP,to suit your next job.You can collect GIS/GPS points and maps via the GIS application of your choice,either a third-party software such as ESRI,ArcPad or the proprietary HI-TARGET application.
*Technical parameter of the portable GPS receiver:| Model | Qmini MP |
| | Operation system: Windows Mobile 6.5 | √ |
| | Processor: 806 MHZ | √ |
| | RAM: 256MB RAM | √ |
| System Configuration | Flash Memory: 8GB | √ |
| | Display: 3.7 inch LED, 640×480 resolution | √ |
| GNSS Features | Single frequency GPS positioning technology | √ |
| Support Compass system | √ |
| Integrate SBAS (WAAS, EGNOS, MSAS) | √ |
| Time for the first fix(TTFF) | 35s |
| Update rate: 1HZ (support higher frequency) | √ |
| Position Accuracy | Single point positioning | 5m |
| Application functions | Integrated 3G communication module | √ |
| 5 million pixel camera with LED | √ |
| Built-in microphone & speaker | √ |
| Integrated G-sensor | √ |
| keys and camera key | 8keys |
| Data communication | Bluetooth | √ |
| Mini USB | √ |
| WIFI:802.11b/g | √ |
| MicroSD card slot, support up to 32GB | √ |
| Power supply | Lithium battery, online charging | 3100mAh |
| Continuous work | 8 hours |
| Physical properties | Size | 152mm x 82mm x 32mm |
| Weight(with battery) | 315g |
| Operating temperature | -20ºC ~ +70ºC |
| Storage temperature | -30ºC ~ +80ºC |
| Dustproof/waterproof: IP67 | √ |
| Anti-shock: 1.5m free fall | √ |
*Main features of the new condition handheld GPS receiver:1.Rugged design;
2.Microsoft Windows Mobile 6.5;
3.806MHz high-speed CPU;
4.Embedded high sensitivity GPS+GLONASS receiver;
5.3.7 inch QVGA TFT,sunlight-readable color touch screen;
6.5 Megapixel auto-focus camera with LED;
7.Field swappable long life Li-Ion battery.
