Tension and Compression Force Sensor (B323)
Price: |
US $ 18-20/Piece |
Min Order: |
2/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
B323 |
Capacity: |
5,10,20,50,100,200,250,5001000,2000,3000,5000kg |
Out-Wire: |
5 Wires |
Feature: |
High Accuracy |
Production Process: |
Strain Gauge |
Material: |
Alloy Steel |
IP Rating: |
IP66 |
Product Description
1. Name: Miniature Tension And Compression Load Cell with high accuracy
2. Capacity:
5,10,20,50,100,200,250,5001000,2000,3000,5000kg3. Material/production class: Stainless steel

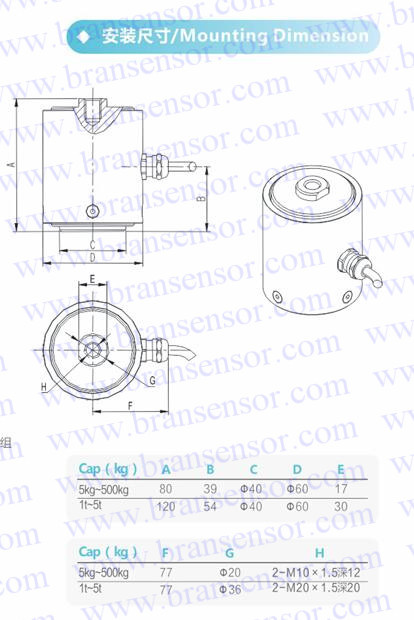

![](/proimages/44f3j00QgsaNTMIszkV/tension-and-compression-force-sensor-b323-.jpg)
4. Datasheet | Specifications | Technique |
| Capacity | 5,10,20,50,100,200,250,5001000,2000,3000,5000kg |
| Rated output | 2.0±0.25%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.03%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.03%F.S. |
(30min) | Creep(30min) | ±0.03%F.S./10ºC |
| Temp.effect on output | 0.025%F.S./10ºC |
| Temp.effect on zero | 0.025%F.S./10ºC |
| Input impedance | 350±10Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40ºC |
| Operation temp range | -30~70ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ3×4000mm |
| Material | 5-500kg Aluminum; 1-5t Alloy Steel |
| IP Class | IP66 |
5. Advantages:
Fully sealed up to IP66
High Accuracy
High Endurance
Built in Overload Protection
High Capacity / Low Capacity
Compact designs available for tight environment
In both Tension and Compression

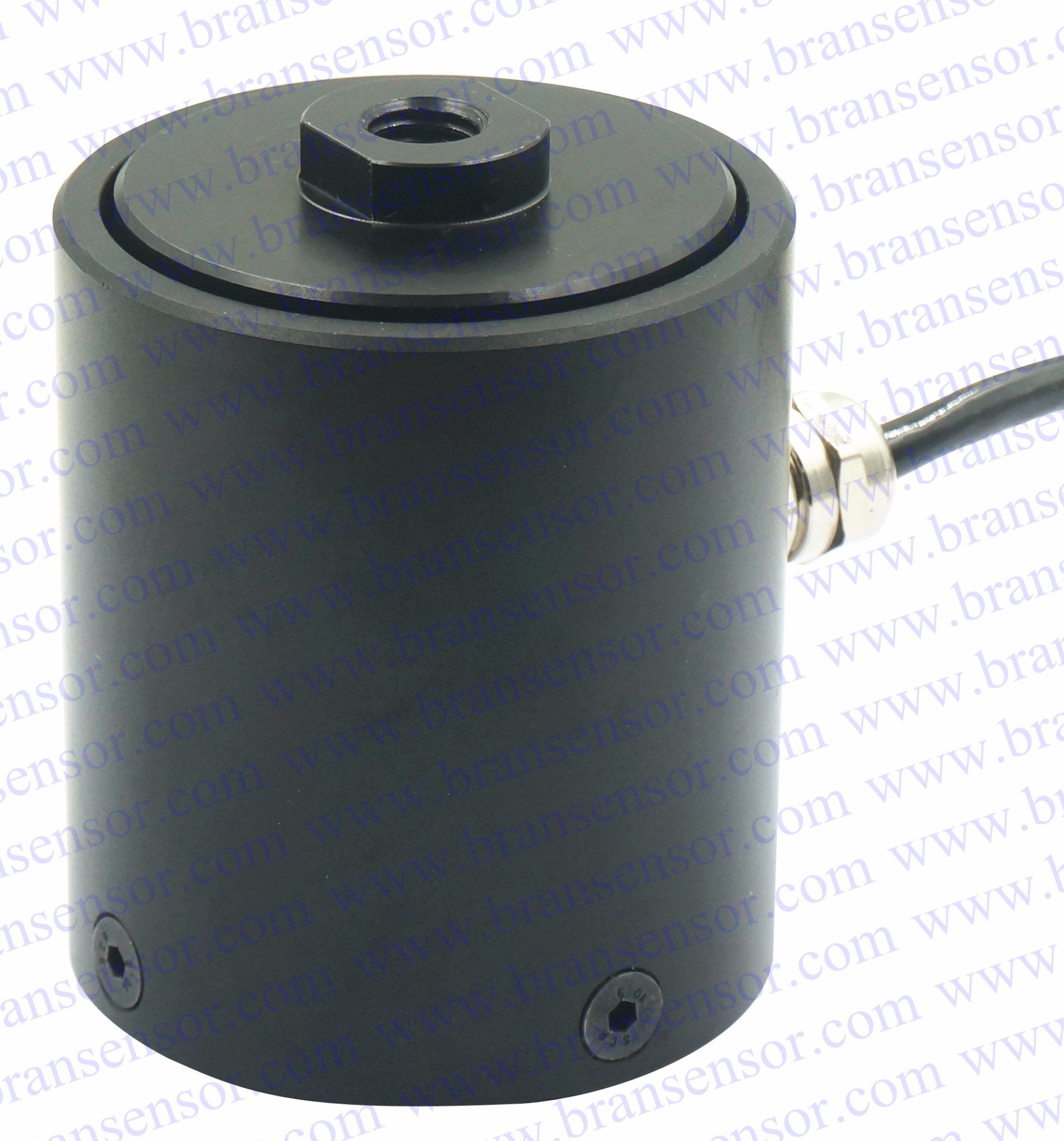

Single Point ConstructionMiniature load cell,low profile,small deflectionMade of stainless steelMainly used for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system, High dynamic response frequency![](/proimages/44f3j00tzKTNfMJhrbl/tension-and-compression-force-sensor-b323-.jpg)
6. Instruction:
The instruction of this type is S beam. So the accuracy is very high for both tension and compression applications. But this one is very small miniature force sensor.
Brans S-Beam Load Cells combine compact structure with enhanced precision and rigorous testing to form a reliable and durable tension and compression force transducer. The one-piece design achieves an accuracy of ±0.02 % full scale.
What you could get from Brans?
Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.
Why choose Brans?
Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.
We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.
Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.
Who Brans cooperate with?
Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
