Micro Compression Compression Miniature Load Cell (B101)
Price: |
Negotiable/Piece |
Min Order: |
2/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
B101 |
Measurement Force: |
Compression Force Measurement |
Size: |
50mm*25mm(Diameter*Height) |
Product Type: |
Miniature Force Sensor |
Pattern: |
Load Button |
Feature: |
High Accuracy |
Production Process: |
Put on Strain Gauge |
Product Description
1. Name: 10KN Miniature load button load cells
2. Type: B101 force sensor

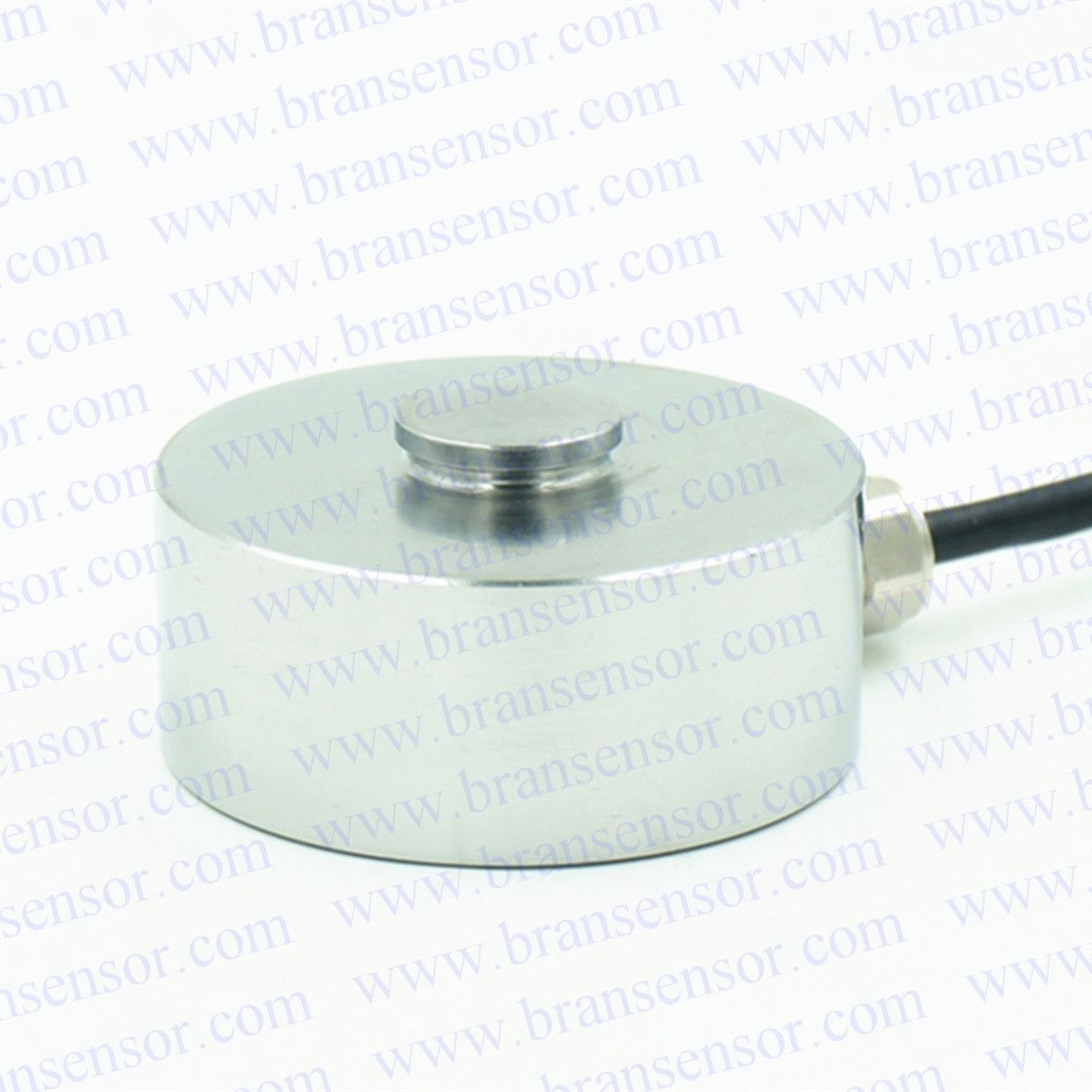

![](/proimages/44f3j00EUGaJQRLRbqB/micro-compression-compression-miniature-load-cell-b101-.jpg)

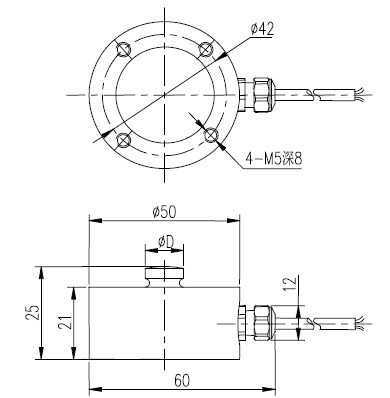

![](/proimages/44f3j00tRGQJUfmObcC/micro-compression-compression-miniature-load-cell-b101-.jpg)
3. Specification
The B101 force transducer can be used to measure static compressive force. Nominal forces ranging from 1KN to 100 kN are available as well as variable cable lengths and, on request, Transducer Electronic Data Sheet.
The compressive force transducer is mechanically and electrically compatible with its predecessor model and can easily be installed in existing systems. Its extremely compact design further facilitates the integration.
Providing 0.2 accuracy, this offers higher precision than its predecessor. The force sensor is based on high strain gauge technology. Force is applied via a special load application point.
Brans force transducer offers IP67(IP68) protection. Precise measurement results are guaranteed even in adverse environments thanks to the hermetically sealed housing from stainless steel and rugged cable. Compact, precise, rugged - these characteristics make our load button highly versatile. Possible fields of application include:
Cost-effective test benches for a wide range of applications control and monitoring of production processes measurement tasks in development, when other sensors are too big, e. g. for measuring braking forces directly in the brake caliper. Furthermore, the compressive force transducer adapts to the application - cable lengths and connectors are variable. The sensor's identification number will be automatically detected and the amplifier automatically configured.
4. Key Features
Compact design
Direction of force: Compression
Accuracy class 0.2
Nominal rated forces: 1KN to 100kN
Configurable with different cable lengths, plug assembly
5. Datasheet1 | Specifications | Technique |
2 | Capacity | 1, 2, 5, 10, 20, 50, 75, 100 kN |
3 | Rated output | 1.5±10%mV/V |
4 | Zero balance | ±0.03 mV/V |
5 | Non-linearity | 0.2%F. S. |
6 | Hysteresis | 0.1%F. S. |
7 | Repeatability | 0.1%F. S. |
8 | Creep(30min) | 0.05%F. S. |
9 | Temp. effect on output | 0.05%F. S. /10ºC |
10 | Temp. effect on zero | 0.05%F. S. /10ºC |
11 | Input impedance | 780±20Ω |
12 | Output impedance | 700±10Ω |
13 | Insulation | ≥5000MΩ/100VDC |
14 | Recommended excitation | 10V |
15 | Maximum excitation | 15V |
16 | Compensated temp range | -10~60ºC |
17 | Operation temp range | -20~80ºC |
18 | Safe overload | 150%F. S. |
19 | Ultimate overload | 300%F. S. |
20 | Cable size | φ3.6×4000mm |
21 | Material | Stainless Steel |
22 | IP Class | IP67 |
All of these load button load cells could be customized. The accuracy could be 0.1% for force measuring and controlling progress. www.bransensor.com
