High Accuracy S Load Cell for Tension and Compression (B313)

Name: High Accuracy S Load Cell for Tension and Compression (B313)
Brand: all-electronics-online.com
SKU: 809827375
Availability: InStock
Rating: 4.8 (110 reviews)

Price:	US $ 30-34/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B313
Size:	176.819.1mm(LWH)
Capacity:	2.5n to 1000n
Out-Wire:	5 Wires
Feature:	Miniature Size

Product Description

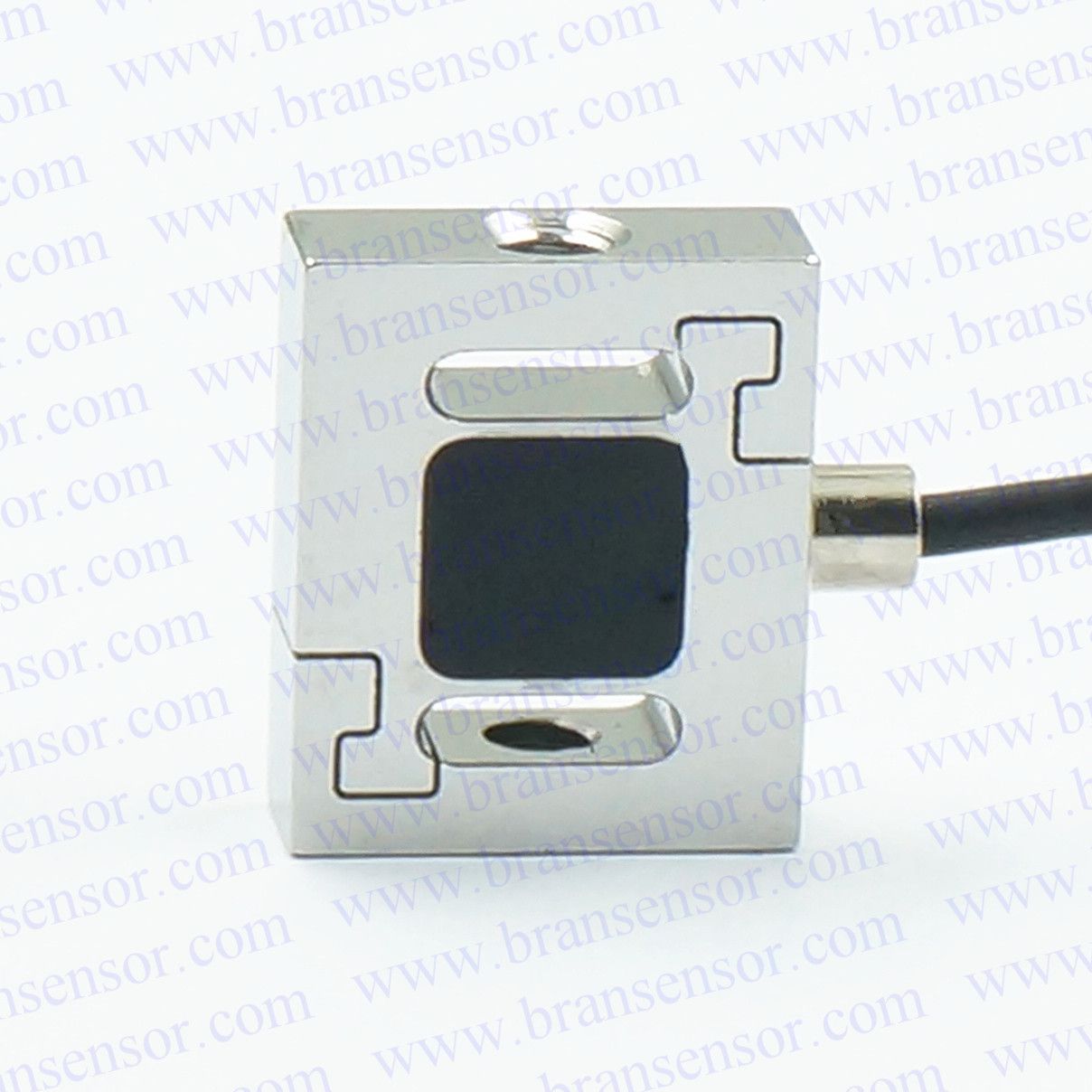

1. Product Name: Brans B313 miniature stainless steel force sensors and micro S load cells

2. Material and Capacity: 17-4PH stainless steel with 2.5N to 1000N capacity
3. Datasheet:

Number	Specifications	Technique
1	Capacity	2.5,5,10,20,50,100,200,300,500N
2	Rated output	2.0±10%mV/V
3	Zero balance	±0.02 mV/V
4	Non-linearity	0.05%F.S.
5	Hysteresis	0.05%F.S.
6	Repeatability	0.05%F.S.
7	Creep(30min)	0.05%F.S.
8	Temp.effect on output	0.05%F.S./10ºC
9	Temp.effect on zero	0.05%F.S./10ºC
10	Input impedance	350±30Ω
11	Output impedance	350±5Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	5V
14	Maximum excitation	15V
15	Compensated temp range	-10~60ºC
16	Operation temp range	-20~80ºC
17	Safe overload	150%F.S.
18	Ultimate overload	300%F.S.
19	Cable size	φ2×4000mm
20	Weight approx.	0.1kg
21	Material	Stainless Steel
22	IP Class	IP66

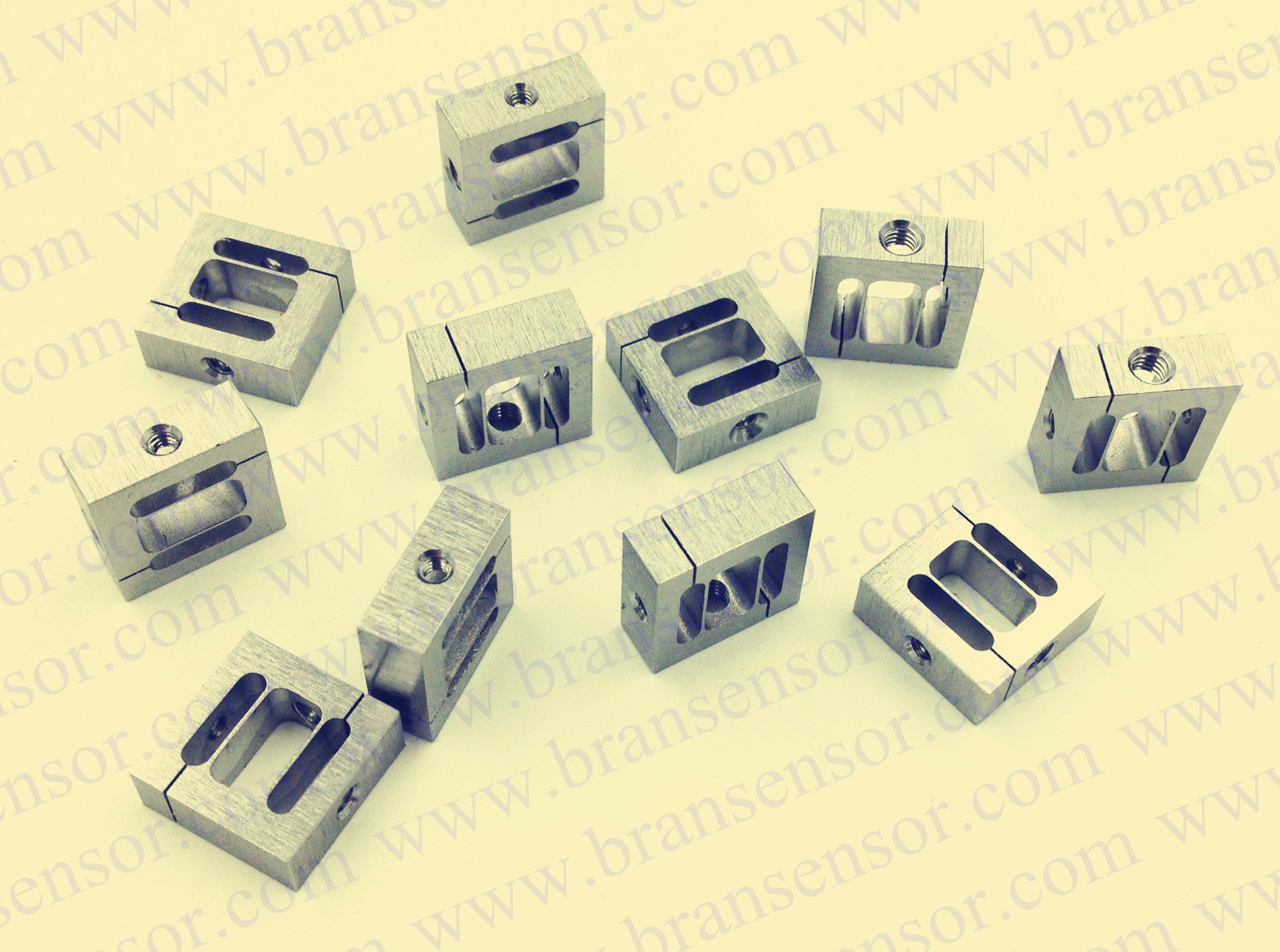

Brans could OEM and make miniature load cells and force sensors according to most of our clients' requirements. All of these mini-load cells could be made with 17-4PH high grade stainless steel and beautiful outlook and good performance.

Let's work together with Brans to build more perfect wighing products.

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
