| Prod Model: |
NTC10K, B=3950 |
| Power: |
110V or 220V |
| Plug: |
Europe, Japan, America etc. |
| Size: |
210 mm X 145mm X 40mm |
| Intelligent Heating: |
Less Than 3000W |
Product Description

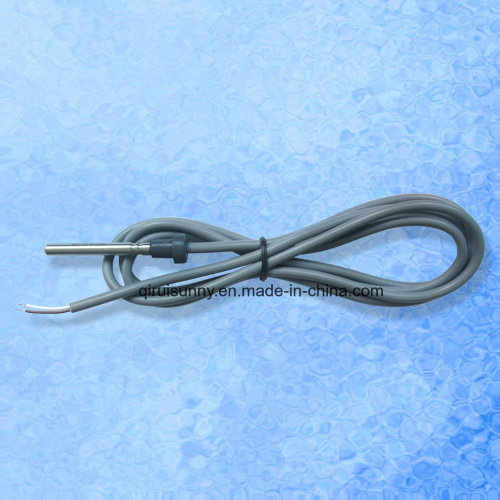

Separated pressure solar water heater' water tank temperature sensor Specifications
Solar controller
1.Model:SN868C8
2.Automatic operation
3.With many functions
4.Use separated pressurized solar system
SR868C8 Solar Water Heater Controller, solar system controller
Introduce
solar controller suitable for separated pressurized solar system
| Model | SR868C8 sensor |
| Power | 110V DC or 220V AC |
| Function | separated pressure solar water heating system |
Main technical data:
APPLICATIONS CAPACITY
Max.number of collectors:1
Max.number of storage tanks:1
Max.number of relays:4
Max.number of sensors:5
Max.number of visualization application system: 1
FRT:1* Rotary vane type electron flow meter
Size of Keypad:120mm x 120mm x 18mm
Size of Controller(1.5KW version): 187mm x128mm x46mm
Size of Controller(3KW version): 218mm x165mm x55mm
Size of Controller(4KW version): 218mm x165mm x55mm
Power supply: AC100-240V,50-60Hz. .
Power consumption: < 2.5W
Rated impulse voltage: 2.5KV
Housing: Plastic ABS
Protection type: IP41
Mounting: Wall mounting
Operation: 10 push buttons at the front cover.
Accuracy of temperature measuring: ± 0.1oC
Range of collector temperature measuring: -10oC ~220oC
Range of tank temperature measuring: 0oC ~110oC
Suitable power of pump: 3 pump possible to be connected
Suitable power of HK (backup heating):
1pc(1.5KW version) <1.5KW
1pc(3KW version)< 3KW
1pc(4KW version) <4KW
Inputs: 5 sensors,
1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC),
4pcs*NTC10K, B3950 sensor (≤ 135oC) for tank, (PVC cable ≤105oC),
1*FRT Rotary vane type electron flow meter
Outputs: 4 relays, for circulation pump and backup heating
3*Electronmagnetic relay, Max.current 2A
HK relay(1.5KW version):10A
HK relay(3KW version):15A
HK relay(4KW version):20A
Ambient temperature: -10oC ~ 50oC.
Water proof grade: IP41
Main functions:
DATE---Date setting
Timed heat---backup heating
Circle---Hot water circulation
LOAD---Setup Loading tank1
COL---Collector1
PUMP---Pump control mode
COOL---Cooling function
AUX---Auxiliary function
MAN---Manual mode
BLPR---Blocking protection function
OTDI---Thermal disinfection function
FS---Flow meter type selection.
UNIT---C-F unit switch
RST---factory setting
PASS--- password set
Holiday function
Screen Protection
Trouble Protection
Trouble Checking

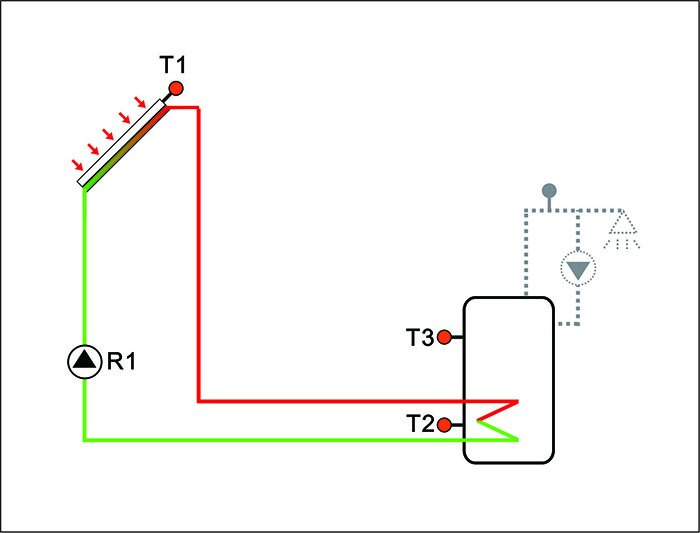

System:
