Name: Solar Water Heater Controller Sensor for Tk-7
Brand: all-electronics-online.com
SKU: 814670545
Availability: InStock
Rating: 4.6 (24 reviews)

Price:	US $ 6-11/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TK-7 sensor
Ntc10k,:	B=3950
Plug:	Europe, Japan, America etc.
Size:	20133.6cm
Intelligent Heating:	Less Than 2000W

Product Description

sensor for low pressure solar water heater intelligent controller TK-7 and TK-8A
Suitable for open loop solar water heater: low pressure solar water heater(CNP-58) and Pre-heated solar water heater.

Model	TK-7 and TK-8A sensor
NTC10K,	B=3950
Function	water level, temperature etc.

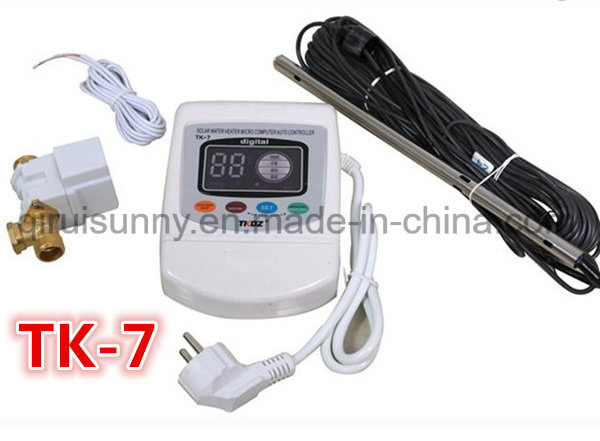

The device type TK-7is fully automatically controlled by micro computer inside as well as designed with human personality.its sensor is adopted the advanced foreign technology which is avoid water leaking.water temperature and water level is displayed with large aized LCD.loading water can be automatically operated by its own.its main functions are water lever preset,low lever alarm,low water pressure loading,timer and manual control which makes this device safe convenient and practical.
1, Technical datas:

<1> Power: 220VAC±10%
<2> Size: 17x12.5x5cm
<3> Temperature detective precision: ±2°C
<4> Temperature detect range: 0~90°C
<5> Water level: 4 level
<6> Power loss: <5W
<7> Auto control supercharging pump/Electric heating belt ≤ 500W
<8> Electric heating ≤ 2000W
<9> Electric leakage cut off current: < 10mA/0.1s
<10> Solenoid Valve: DC12V for pressurized and non pressurized valves
<11> Pressurized working pressure: 0.02~0.8Mpa, for direct water supply
<12> Non pressurized: working pressure: 0 Mpa, for water supply and low pressure water supply

2, Main functions:

<1> Water level preset
<2> Leakage protection
<3> Intelligent water loading
<4> Constant water level loading
<5> Insufficiency water loading
<6> Pipe heat prevention
<7> Constant temperature heating
<8> Low water pressure water loading
<9> Auto control supercharging pump
<10> Dry heating prevention
<11> Power off memory
<12> All-weather water supply
<13> Intelligent heating
<14> Water temperture preset
<15> Temperature control water loading
<16> Water insufficiency alert
<17> Manual control

Haining Qiruite Photoelectric Co., Ltd. was founded in 2001 and specialized in producing of solar water heaters(mainly), solar lights. In addition, we also have the capacity of researching, developing, designing, manufacturing and installing large scale solar-heat-collector projects and its central-control system. Our factory covers an area of 28, 000 square meters and has an annual production capacity of 100, 000 solar water heaters.
We trust product quality is our life. Therefore, we have got the certificates of Solar keymark, CE, ISO9001: 2000 and CCC. Our production line include over fifty working procedures, and we manipulate strictly under the measure requirements and working order. Our products are exported to many countries with good honor, such as EU, North America, Middle East, South Africa, Southeast Asia and etc.
We can guarantee high product quality. According to different individual requirements such as area, climate and consumption level, more and more productions come into the market from Qiruire. All our successes are based on the research and analysis of the market. If you are interested in any of our products, please feel free to contact us without hesitation. and we are looking forward to having opportunities to become your future honor supplier.
