Integrated Pressure Solar Water Heater System Controller Sr609c with Ce

Name: Integrated Pressure Solar Water Heater System Controller Sr609c with Ce
Brand: all-electronics-online.com
SKU: 814527745
Availability: InStock
Rating: 5 (119 reviews)

Price:	US $ 22/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR609C
Power:	110V or 220V
Plug:	Europe, Japan, America etc.
Size:	210 mm X 145mm X 40mm
Intelligent Heating:	Less Than 3000W

Product Description

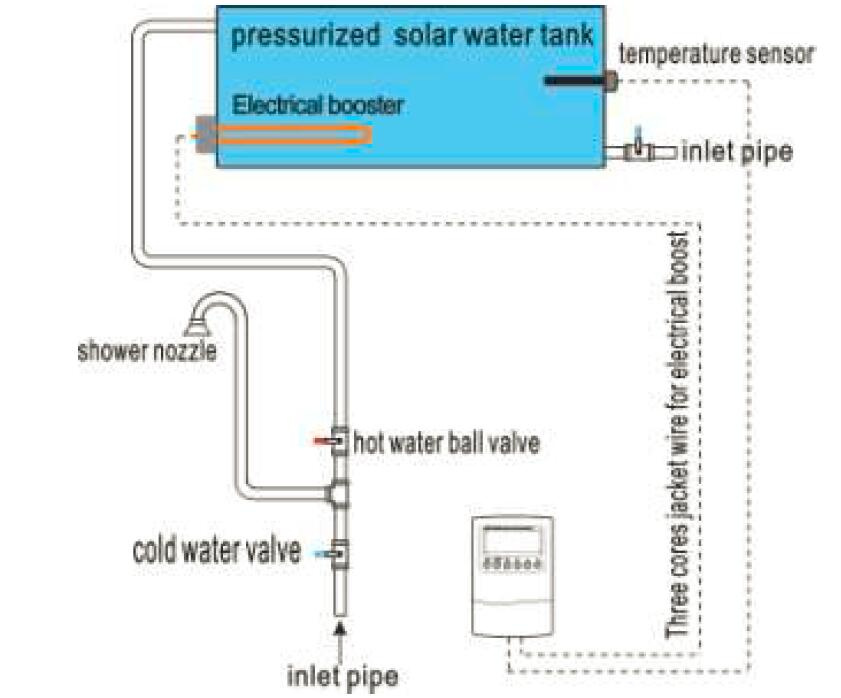

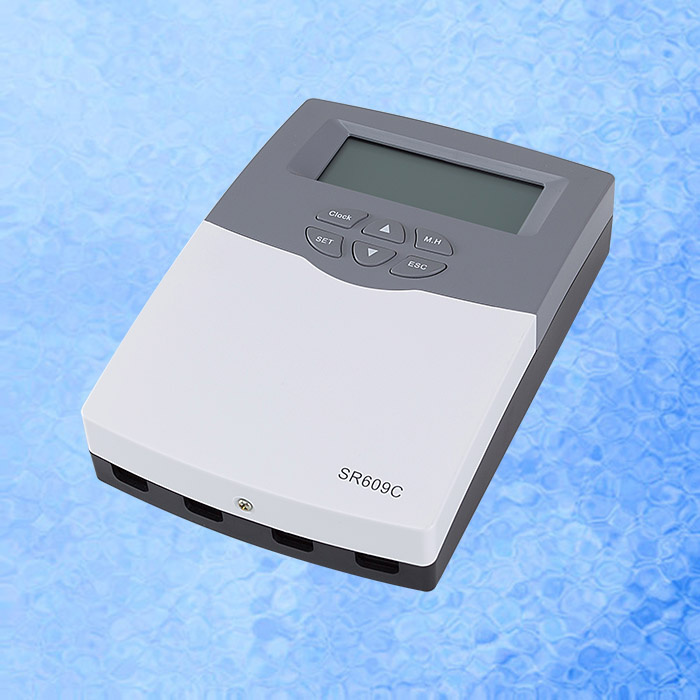

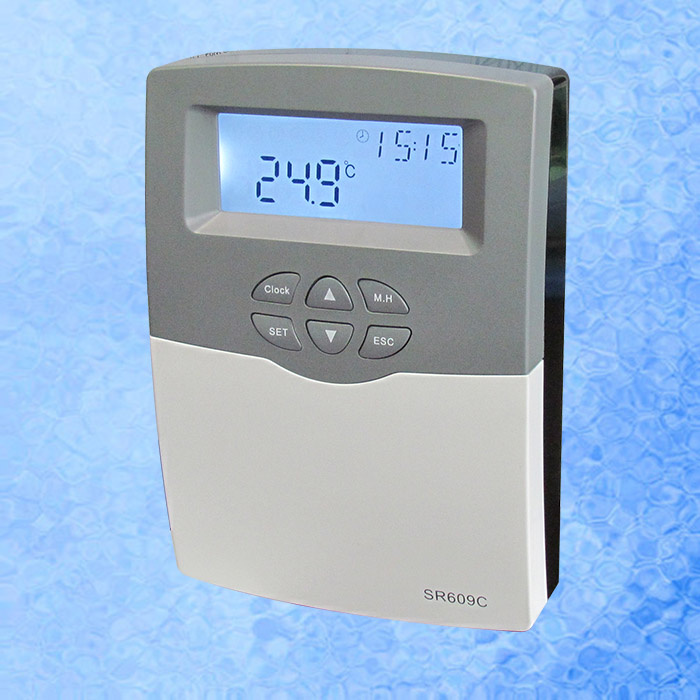

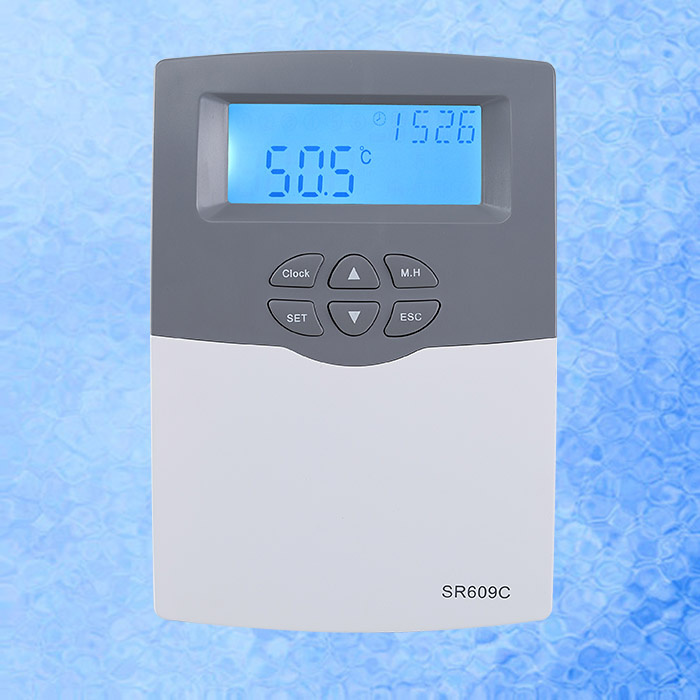

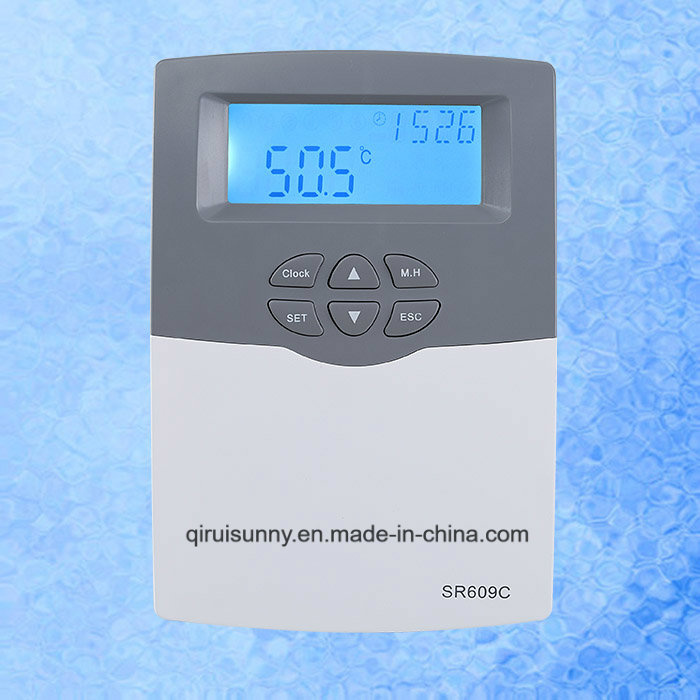

Integrated pressure solar water heater system controller SR609C with CE
Suitable for colse loop solar water heater: Integrated pressure solar water heater system controller.

Model	SR609C
Power	110V DC or 220V AC
Function	control electric heater automatically; show water temperature in water tank

Introduce:

Suitable for integrated un-pressurized solar system

Main technical data:

1,Dimension: 210 mm x 145mm x 40mm
2,Self power consumption: <3W
3,Measuring accuracy of temperature: ±2ºC
4,Temperature range of measurement: 0~99ºC
5,Maximum power of controlled pump: ≤600W
6,Power of accompanied electrical heating wire: ≤800W
7,Power of auxiliary electrical booster ≤2000W ( standard collocation),
≤3000W (not standard selection available )
8,Electromagnetic valve parameter: DC 12V AC 220V pressurized
valve and un-pressurized valve are available for selection
operation pressure of pressurized valve: 0.02Mpa ~ 0.8Mpa
suitable for providing water directly
operation pressure of un-pressurized valve: 0.0Mpa
connected with water tank or low pressure water providing

Main functions:

1, Time display
2, Water temperature display
3, Water level display
4, Auto mode
5, Water level pre-setup
6, Manual water loading
7, Temperature controlled water loading
8, Timing water loading
9, Water loading when tank is lack of water
10,Compulsive water loading
11,Increasing Water pressure during water is loaded.
12,Manual heating
13,Timing heating
14,Hot water circulation
15,Hot water pipe insulation
16,Low pressure protection
17,Collector tube protection
18,Memory protection when power is failure
