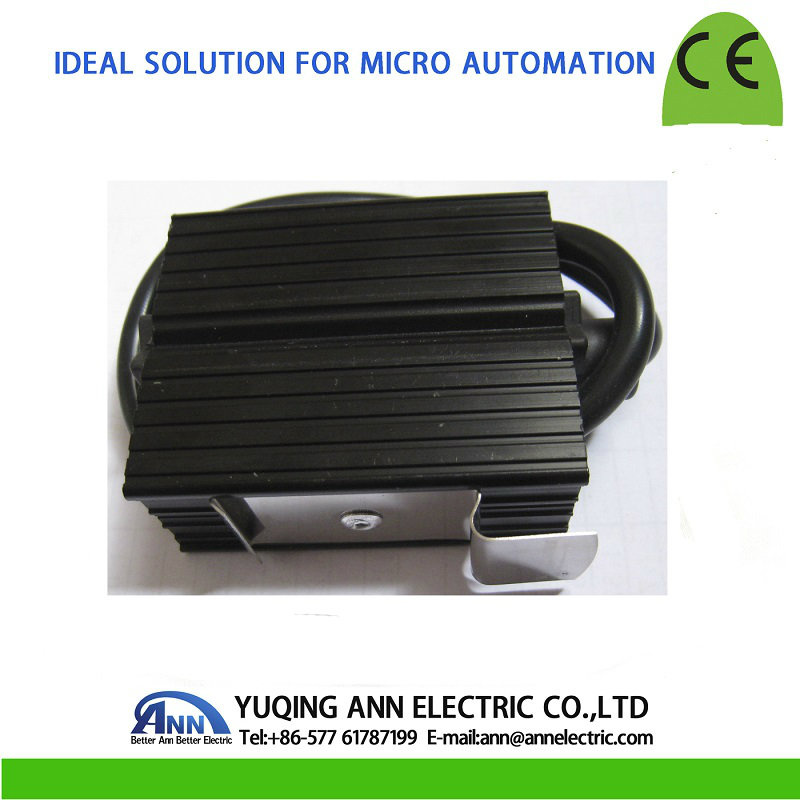

Small Semiconductor Heater Hgk 047

Name: Small Semiconductor Heater Hgk 047
Brand: all-electronics-online.com
SKU: 792965575
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HGK 047
Heating Capacity:	15-150W
IP:	IP20

Product Description

Product Description:
Small semiconductor Heater HGK 047 Series
Dynamic heating up
Energy saving
Wide voltage range
Clip fixing
The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.

Technique parameter:
Technical Data

Heating element	PTC resistor - temperature limiting
Heater body	extruded aluminium profile, anodised
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP44 / I (earthed)
Accessoires	screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)
Note	other voltages on request

Art. No.	Operating voltage	Heating capacity⊃1;	Inrush current max.	Pre-fuse T (time delay)	Length (L)	Weight (approx.)	Connection
04700.0-00	120-240V AC/DC⊃2;	10W	1.0A	1A	52mm	0.1kg	3 x 0,5mm⊃2; x 300mm cable (silicone)
04701.0-00	120-240V AC/DC⊃2;	20W	2.5A	2A	60mm	0.2kg	3 x 0,5mm⊃2; x 300mm cable (silicone)
04702.0-00	120-240V AC/DC⊃2;	30W	3.0A	2A	70mm	0.2kg	3 x 0,5mm⊃2; x 300mm cable (silicone)
04700.9-00	110-120V AC/DC	10W	1.0A	1A	52mm	0.1kg	3 x AWG 20 x 300mm cable
04701.9-00	110-120V AC/DC	20W	1.5A	2A	70mm	0.2kg	3 x AWG 20 x 300mm cable
04702.9-00	110-120V AC/DC	30W	1.5A	2A	100mm	0.2kg	3 x AWG 20 x 300mm cable

⊃1;at 20°C (68°F) ambient temperature;
⊃2;(min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
