Semiconductor Heater Hg 140

Name: Semiconductor Heater Hg 140
Brand: all-electronics-online.com
SKU: 792963095
Availability: InStock
Rating: 4.4 (65 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HG 140
Heating Capacity:	15-150W
IP:	IP20

Product Description

Product Description:

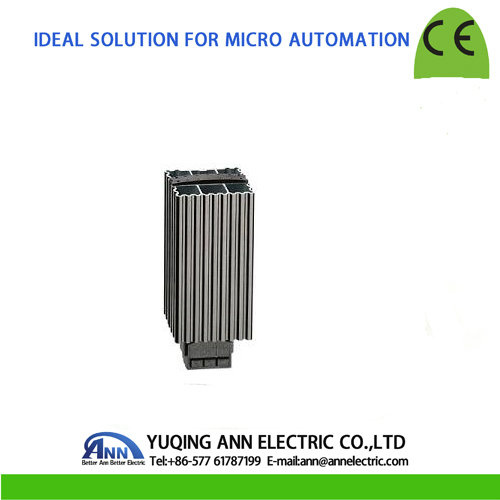

Semiconductor Heater HG 140 Series
Pressure clamp connectors
Dynamic heating up
Wide voltage range
Energy saving
Clip fixing
Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

Technique parameter:

Technical Data

Operating voltage	120-240V AC/DC* (min. 110V, max. 265V)
Heating element	PTC resistor - temperature limiting
Heater body	extruded aluminium profile, anodised
Connection	3 pressure clamps for stranded wire 0.5-1.5mm⊃2; (with wire
	end ferrule) and rigid wire 0.5- 2.5mm⊃2;
Connection casing	plastic according to UL94 V-0, black
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / I (earthed)
Approvals
Accessoires
Note	other voltages on request

Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

Technical Data

Art. No.	Heating capacity*	Inrush current max.	Pre-fuse T (time-delay)	Length (L)	Weight (approx.)
14000.0-00	15W	1.5A	1A	65mm	0.3kg
14001.0-00	30W	3.0A	2.5A	65mm	0.3kg
14003.0-00	45W	3.5A	2.5A	65mm	0.3kg
14005.0-00	60W	2.5A	2.5A	140mm	0.4kg
14006.0-00	75W	4.0A	4A	140mm	0.5kg
14007.0-00	100W	4.5A	4A	140mm	0.5kg
14008.0-00	150W	9.0A	6.3A	220mm	0.7kg
