Semiconductor Fan Heater Cr 027

Name: Semiconductor Fan Heater Cr 027
Brand: all-electronics-online.com
SKU: 792960505
Availability: InStock
Rating: 4.3 (106 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CR 027
Heating Capacity:	250-400W
IP:	IP20

Product Description

Product Description:

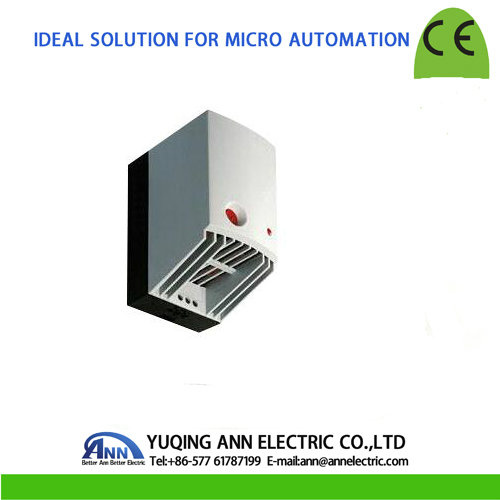

Semiconductor Fan Heater CR 027
Compact heater Integrated thermostat Clip fixing Optical indicator Temperature safety cut-out Semiconductor fan heater prevents formation of condensation and frost and provides an evenly distributed
interior air temperature in enclosures with electric/electronic components. The integrated thermostat is used to set the desired temperature.

Technique parameter:

Technical Data

Heating element	PTC resistor - temperature limiting
Temperature safety cut-out	to protect against overheating in case of fan failure,
	automatic reset
Axial fan, ball bearing	airflow see table
	service life 50,000h at 25°C (77°F)
Connection	2-pole clamp 2.5mm⊃2;, clamping torque 0.8Nm max
Casing	plastic according to UL94 V-0, light grey
Optical indicator	thermostat control lamp
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical airflow (air outlet up) - other fitting positions possible
Dimensions	100 x 128 x 165mm
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / II (double insulated)
Approvals

Art. No.	Operating voltage	Heating capacity (50Hz)	Heating capacity (60Hz)	Inrushcurrentmax	Pre-fuseT(time-delay)	Airflow,freeflow	Settingrangethermostat	Weight(approx.)
02700.0-00	220-240VAC,50/60Hz	475W	550W	11A	6.3A	35m⊃3;/ h	0to+60°C	0.9kg
02701.0-00	220-240VAC,50/60Hz	550W	650W	13A	8A	45m⊃3;/h	0to+60°C	1.1kg
02700.9-00	100-120VAC,50/60Hz	400W	550W	14A	8A	35m⊃3;/h	+32to+140°F	0.9kg
02701.9-00	100-120VAC,50/60Hz	510W	650W	15A	8A	45m⊃3;/h	+32to+140°F	1.1kg

at 20°C (68°F) ambient temperature
