Miniature Column Load Cell with Big Capacity (B114)
Price: |
US $ 30-40/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
B114 |
Size: |
16.5*15.9mm(H*D) |
Capacity: |
150kn |
Accuracy: |
0.5% |
Load Direction: |
Compression |
Type: |
Sub-Miniature Tension & Compression Load Cell |
Pattern: |
Tension and Compression |
Out-Wire: |
5 Wires |
Feature: |
High Accuracy |
Production Process: |
Stain Gauge |
Product Description
1. Name: High accuracy miniature Compression Load Cells
2. Material and Capacity: 17-4PH S.S 10 to 150N

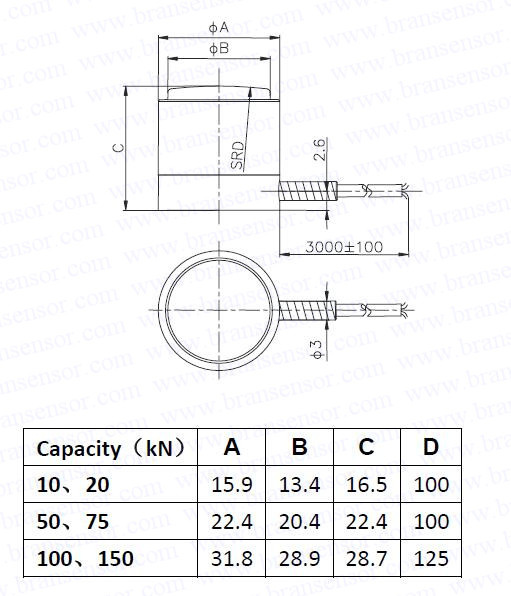

3. Details of Design (Design could be customized)
4. DatasheetSpecifications | Technique |
Capacity | 10,20,50,75,100,150kN |
Rated output | 2.0±10%mV/V |
Zero balance | ±0.05 mV/V |
Non-linearity | ≤0.50%F.S. |
Hysteresis | 0.50%F.S. |
Repeatability | 0.20%F.S. |
Creep(30min) | 0.20%F.S. |
Temp.effect on output | 0.05%F.S./10ºC |
Temp.effect on zero | 0.05%F.S./10ºC |
Input impedance | 380±10Ω |
Output impedance | 350±5Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5V |
Maximum excitation | 10V |
Compensated temp range | -10~60ºC |
Operation temp range | -20~80ºC |
Safe overload | 200%F.S. |
Ultimate overload | 300%F.S. |
Cable size | Φ3×4000mm |
Weight approx. | 0.1kg |
Material | Stainless Steel() |
IP Class | IP65 |
5. Application detailsBrans B114 Miniature Column Load Cell offers an impressive compact design for high capacity applications. With a diameter of 15.9mm, it is ideal for tight spaces. The B114 is offered in 17-4 PH stainless-steel in 10KN to 150KN capacities with a raised surface radius to lower the possibility of off center loading.
![](/proimages/44f3j00hQDaVpNWuRGb/miniature-column-load-cell-with-big-capacity-b114-.jpg)

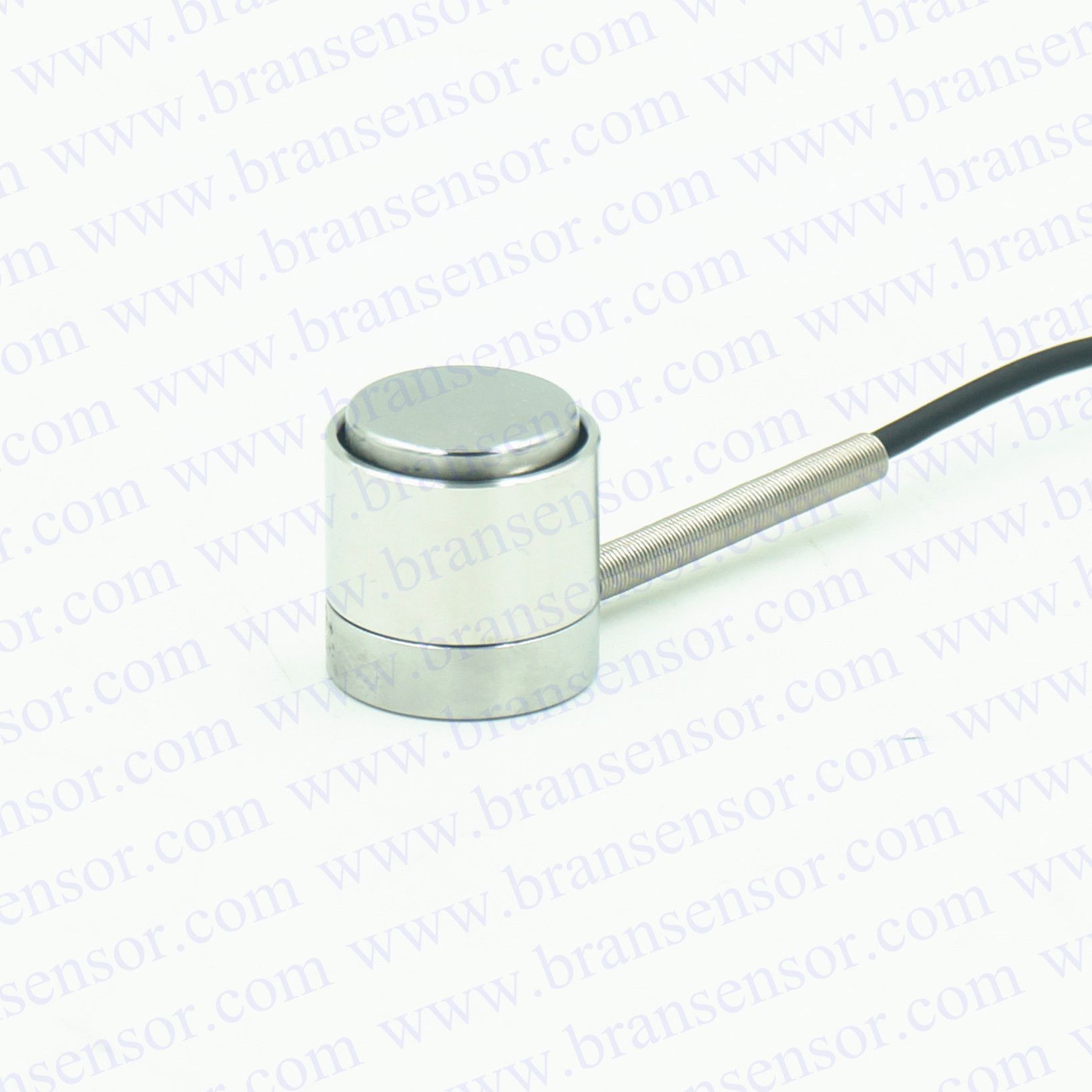

The B114 Miniature Column Load Cell is designed to measure loads in compression. This model is manufactured in China and uses metal foil strain gauge technology. Additional design features include the use of a strain relief, which provides much greater protection when pulled.
