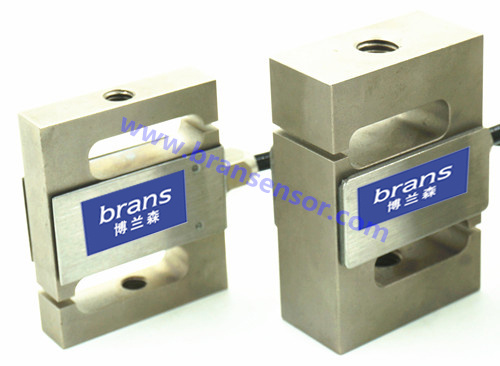

High Accuracy S Load Cell (B319)

Name: High Accuracy S Load Cell (B319)
Brand: all-electronics-online.com
SKU: 810592545
Availability: InStock
Rating: 4.8 (116 reviews)

Price:	US $ 18-20/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B319
Capacity:	250n-100kn
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Strain Gauge
Material:	Alloy Steel

Product Description

Name: S Beam Tension and Compression Load Cells with high accuracy load cells
Capacity:5-50kg, 100-500kg, 1-5T, 7.5-10T, 15-20T
Material/production class: Alloy steel or Stainless steel

	Specifications	Technique
	Capacity	100kg,200-750kg, 1t-1.5t,2-5t,10t
	Rated output	3.0mV/V±0.1%
	Zero balance	±1.0% F.S.
	Non-linearity	±0.03%F.S.
	Hysteresis	±0.03% F.S.
	Repeatability	±0.03%F.S.
(30min)	Creep(30min)	±0.03%F.S./10ºC
	Temp.effect on output	0.002%F.S./10ºC
	Temp.effect on zero	0.002%F.S./10ºC
	Input impedance	387±20Ω
	Output impedance	350±5Ω
	Insulation	≥5000MΩ/100VDC
	Recommended excitation	10V
	Maximum excitation	15V
	Compensated temp range	-10~40ºC
	Operation temp range	-10~70ºC
	Safe overload	150%F.S.
	Ultimate overload	300%F.S.
	Cable size	Φ5.4×6000mm
	Material	Alloy Steel()
	IP Class	IP67

Advantages:
Fully sealed up to IP67
High Accuracy
High Endurance
Built in Overload Protection
High Capacity / Low Capacity
Compact designs available for tight environment
In both Tension and Compression
Single Point Construction
5. Instruction:
Brans S-Beam Load Cells combine compact structure with enhanced precision and rigorous testing to form a reliable and durable tension and compression force transducer. The one-piece design achieves an accuracy of ±0.02 % full scale.

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
