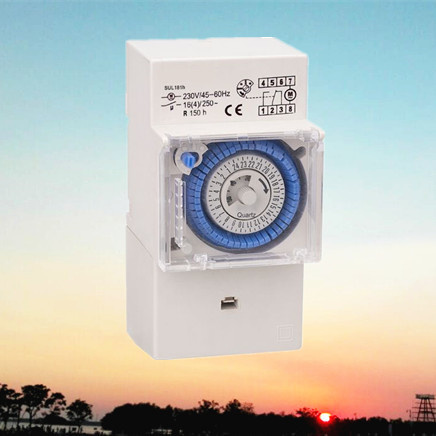

Daily Programmable Mechanical Analog Timer Switch (SUL181H, SYN161H)

Name: Daily Programmable Mechanical Analog Timer Switch (SUL181H, SYN161H)
Brand: all-electronics-online.com
SKU: 714734092
Availability: InStock
Rating: 4.7 (112 reviews)

Price:	US $ 4.6-11.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUL181h, SYN161h
Set Unit:	30 Min Setting Unit
Installation:	35 mm DIN Rail or Installed in Distrubution Board.
Optional:	Sul 181h with Battery,Syn 161h Without Battery
Output:	6AMP, Spdt @ 250VAC, Volt-Free Output.
Power Voltage:	AC110V/AC220V
Frequency:	45~60Hz
Power:	2W
Drive Mode:	Quartz Motor

Product Description

The products according to the time set by the user, automatically turn on and turn off the variety of electrical equipment. Control object can lights, light boxes, neon lights, production equipment, agriculture, aquaculture, automatically preheat. Optimal control products, such as radio and television equipment. Contact rating: Resistor 16A

Incandescent 10A

Reactance (cosφ=0.7) 12A
Motor (cosφ=0.7) 110VAC 750W,220VAC 1500W

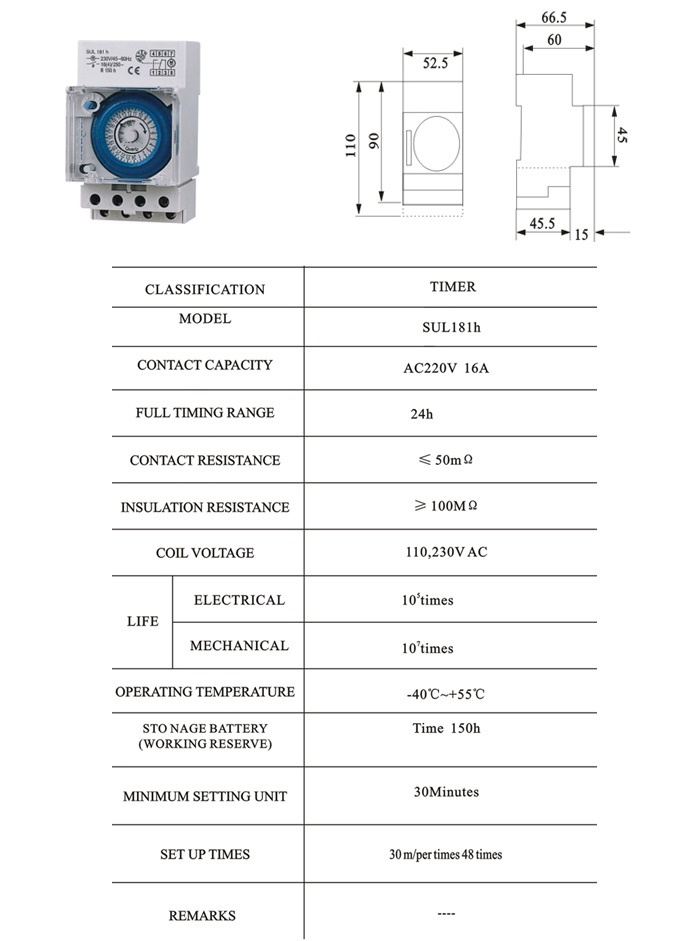

Technical Data

Classification		Timer
Model		SUL181h	SYN161h
Contact Capacity		AC220V 16A
Full Timing Range		24h
Contact Resistance		≤50mΩ
Insulation Resistance		≥100mΩ
Coil Voltage		110, 230V AC
Life	Electrical	100000times
	Mechanical	10000000times
Operating Temperature		-40ºC~+55ºC
Storage Battery(Working Reserve)		150h	Without Battery
Min. Setting Unit		30 Minutes
Set Up Times		30m/per times, 48 times
Remarks		--
