New Product 6-30VDC Max 10A Timer Switch Mt316s-G

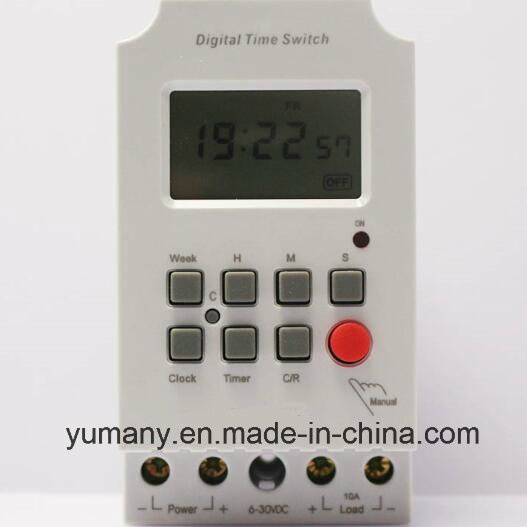

Name: New Product 6-30VDC Max 10A Timer Switch Mt316s-G
Brand: all-electronics-online.com
SKU: 729340602
Availability: InStock
Rating: 4.7 (134 reviews)

Price:	US $ 7-16/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MT316S-G
Usage:	Timer Switch
Theory:	Digital
Charge Method:	on Solar Panel or Battery
Enclosure:	Can Be Supplied as Per Clients' Request
Power Voltage:	6~30V DC
Display:	LCD
Installation:	Rail
Setting:	Max 28 Times on/off
OEM Or ODM:	Accepted

Product Description

♦Features

1- It widely applies to the time control of the equipments,streetlight,warehouse,

farming, heating and TV.

2- The battery inside, of the industrial clall chips, is precisely control,highly against disturb.

♦Characteristics

Power Voltage	6-30VDC,other voltage could be made
Inside Battery	1.2VDC/40MAH (It could work 90 days without battery,rechargeable)
Electricity Consumption	Appr.1.5VA
Output Control	16A,60VDC(resistance onload)
Time error	less than 0.2 second per day
Time on/off	max 28 times recycle per day
Environment Temperature	minus 25 degree until 60 degree
Environment Humidity	45-85% RH
Mechanical Lifetime	3,000,000 times
Weight	Appr.125g

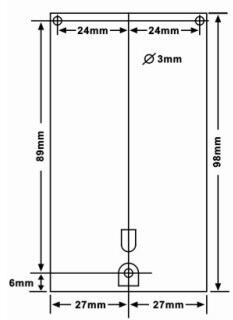

Dimension	985544mm
Installation	with screw M3,3pcs

♦Opertion ways

1- Press the buttom of clock,meanwhile press"date,hour, min" to adjust the time

2- Set on/off time

Step	Button	The program set
1	Press(manuel)button	The screen show"auto-on-auto-off-suto"
2	Press(set)button	Start to set the on.(show 1 on)
3	Press(week)button	Set the week
4	Press(hour)button	Set "hour"
5	Press(min)button	Set "min"
6	Press(sec)button	Set "sec"
7	Press(set)button	Start to set the off
8	Repeat step2-6	Set more on/off time
9	Press(clock)button	After setting,return to the local time

"If set mistake or cancel,plases press the (cancel) button.It could not set when show"-----"

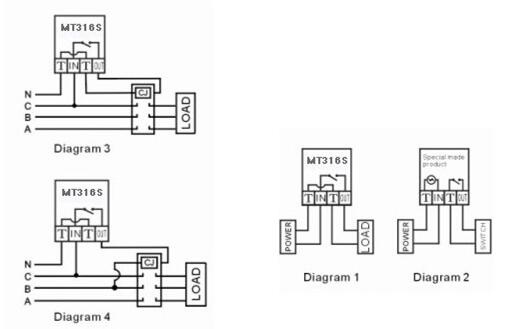

♦Wiring and Installations

1- diagram 1:direct control

2- diagram 2:control the switch output, the special made product

♦Attention

1- It should tighten the screw, to against the contact heating when the big current.

2- Control input wires is 6-30VDC.

3- The voltage 12V,24V,AC110V,380V, could be made.

4- The control is on red light when the electricty is on.Red light and green light is on the same time when the load has the eletricity output.

5- The time set, it could not be mixed to set.It should follow the time sequence.

Packaging & Shipping

Packaging Details: Standard exportation packing

Delivery Details: Within 5-25 days after your order confirmed
