1 Channel Programmable LCD DIN Rail Digital Timer Switch (AHC811)

Name: 1 Channel Programmable LCD DIN Rail Digital Timer Switch (AHC811)
Brand: all-electronics-online.com
SKU: 722455222
Availability: InStock
Rating: 5 (82 reviews)

Price:	US $ 10-23/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	AHC811
OEM:	Available

Product Description

Description:
- Digital time switch with weekly program
- Display: LCD
- Text-oriented user guidance in the display
- ON/OFF operation: 44 on & 44 off
- Holiday switching and random function
- Pluse (44 times pulse) and cycle program
- 4 year power reserve (lithium battery)
- ON-OFF switching times
- Permanent ON/OFF switching
- PIN coding
- Automatic summer/winter time changeover
- 1 channels
- There are six national languages (English, German, Italian, Portuguese and Italian), which can choose and change the language.

Technical Data:

Operating voltage	230 - 240 V AC
Frequency	50-60 Hz
Width	2 modules
Installation type	DIN-rail
Power reserve	4 years
Max. switching capacity at 250 V AC, cos φ = 1	16 A
Max. switching capacity at 250 V AC, cos φ = 0.6	10 A
Incandescent/halogen lamps	2300 W
Shortest switching time	1 min
Time accuracy	≤ ± 2 s/day(Quartz)
Power consumption	5VA
Test approvals
Type of protection	IP 20
Protection class	II in accordance with EN 60 730-1
Ambient temperature	-10 °C … +50 °C

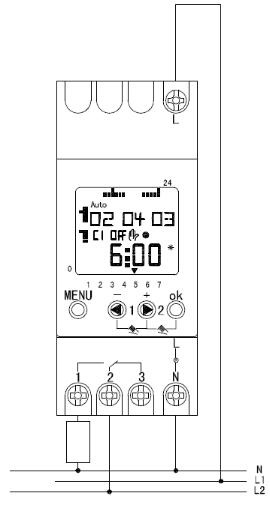

Connection Example:
