Prod Model: |
BK-G30 |
Product Name: |
30W Color Laser Marking Machine |
Warranty: |
2 Years |
Marking Speed: |
1-7000mm/S |
Power Supply: |
90-260V/50Hz-60Hz |
Machine Total Weight: |
90kg |
Certificate: |
Ce FDA SGS ISO |
Operation System: |
Windows System |
Marking Content: |
Bar Code, Two-Dimensional Code, Text ,Photo, Logo |
Operation: |
Video Teaching |
Laser Source: |
Max/Ipg/Raycus |
Product Description

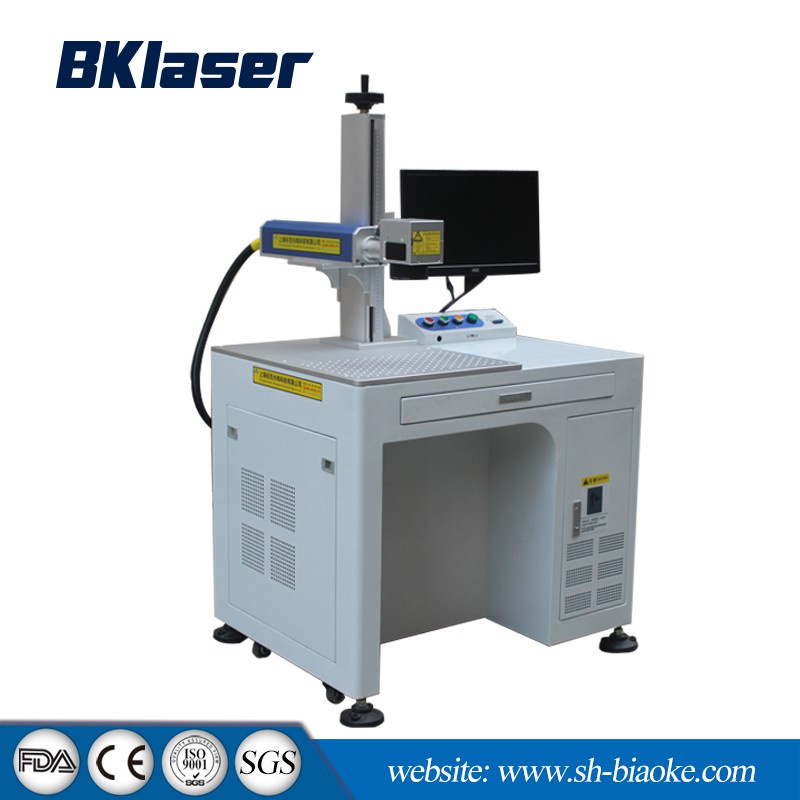

30W Color Laser Marking Machine
What's The Machine Information?Model | BK-G10 | BK-G20 | BK-G30 | BK-G50 | BK-G100 |
Power | 10W | 20W | 30W | 50W | 100W |
Iterm | 30W Color Laser Marking Machine |
Laser Wavelength | 1064nm |
Frequency Range | 20-80KHZ |
Beam Quality | <2 | <3 | <5 |
Engraving Line Speed | ≤7000mm/s |
Minimum Character | 0.3mm(Depends on the material) |
Repeat Accuracy | ±0.003mm |
Engrave Depth | ≤0.3mm | ≤0.5mm | ≤1.0mm |
Operation System | WinXP/Win7/win8 |
Cooling Mode | Built in air cooling |
Engrave Range | Standard 110*110mm(optional 140*140mm 200*200mm-300x300mm) |
File Formats | All fonts in WINDOWS system |
What industries can be applied to?
1. Sheet metal fabrication | 6. Elecrical cabinet | 11. Elevator |
2. Automotive parts | 7. Aerospace | 12. Lighting lamps |
3. Metal carfts & decoration | 8. Hardware | 13. Advertising |
4. Furniture | 9. Kitchenware | 14. Fitness equipment |
5. Medical equipment | 10. Agricultural machine | 15. watches & glassware |
What materials can be marked?
Material | CO2 Laser machine | Material | fiber laser machine |
Wood | √ | Aluminum | √ |
Acryic | √ | Stainless Steel | √ |
Fabric | √ | ABS | √ |
Glass | √ | Brass | √ |
Leather | √ | alloy | √ |
Bamboo | √ | Metal | √ |
Cloth | √ | Copper | √ |
plastic | √ | plastic | √ |
![](/proimages/44f3j00QzNEIgZcgpqn/china-manufacture-30w-color-laser-marking-machine.jpg)
Pre-sales services
a.Inquiring and consulting support.
b.Sample testing support.
c.visiting our factory
After-sales services
a. 2 year guarantee period for product quality;
b. Free training for machines installation and operation;
c. Lifelong maintenance and spare parts supply.
![](/proimages/44f3j00azFtPWZGapkN/china-manufacture-30w-color-laser-marking-machine.jpg)

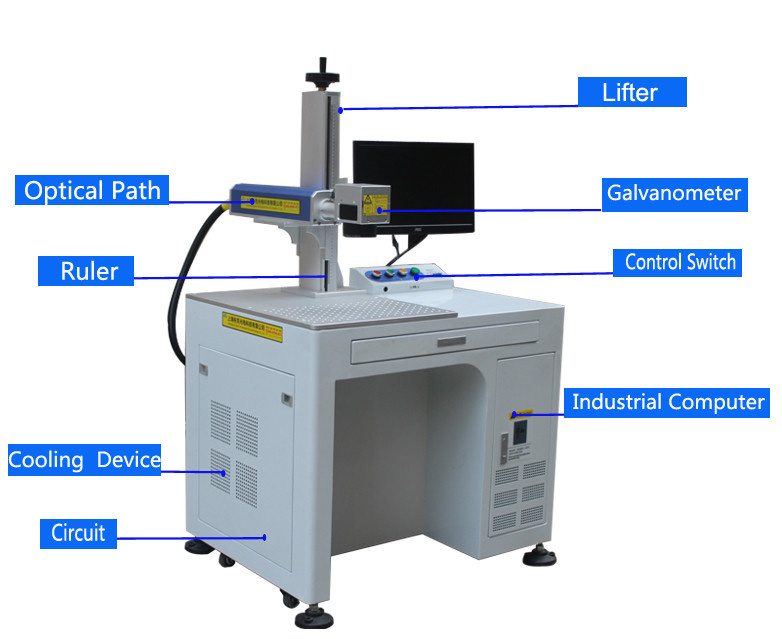

The Main Feature About The Marking Machine
1. High speed with galvanometer.
2. Small volume,light weight.
3. Low power,consumption power is less than 500w.
4. completely air cooling,low power consumption.
5. No influence of the severe environment temperature change.![](/proimages/44f3j00tzOEPqKnngoy/china-manufacture-30w-color-laser-marking-machine.jpg)
Hangzhou Nuoen Precision Instrument & Equipment Co.,Ltd.
Mainly engaged in Marking machine,Cutting machine ,Cleaning machine ,Welding machine etc.
![](/proimages/44f3j00EzOQHBZFAgky/china-manufacture-30w-color-laser-marking-machine.jpg)
![](/proimages/44f3j00tpNQHZSqZgkO/china-manufacture-30w-color-laser-marking-machine.jpg)
Packing
E: We have 3 layers package.For the outside, we adopt wood craft case.In the middle, the marking machine is covered by foam.For the inside layer, the Portable machine is covered by thickening plastic bag for waterproof.
Transportation
E: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation.We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Installing the marking machine
E: will senwed detail training video,95%customers can learn by themselves.
How can I do if the marking machine goes wrong?
E: If confronted with such problems, please contact us ASAP and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Main business: Laser marking machine, laser cutting machine, laser welding machine, Laser cleaning machine and a series of testing machine.
Our products exported to Japan, South Korea, Spain, Italy, Brazil, Chile, Jordan, India, Ukraine and other countries.
We have CE ISO FDA SGS Cerficate about our laser products.
We will serve better service for our company.
Welcome to join us.
