Prod Model: |
Bk-G20w 30w 50w |
Products Name: |
20W 30W 50W CO2 T Shirt Printing Machine |
Marking Speed: |
1-5000mm/S |
Power Supply: |
90-260V/50Hz-60Hz |
Marking Materials: |
T-Shirt Bamboo Paper PCB Board Acrylic Marble |
Cooling Method: |
Air Cooling or Water Cooling |
Laser Source: |
Max/Raycus/Ipg, |
Machine Warranty: |
2 Years |
Control Board: |
Jcz/Ezcad |
File Formats: |
Plt, Pcw, Dxf, BMP,Shx, Ttf |
Marking Content: |
Bar Code, Two-Dimensional Code, Text ,Photo, Logo |
Product Description
20W 30W 50W Co2 T Shirt Printing Machine
![](/proimages/44f3j00RzpEWIrPVlcF/20w-30w-50w-co2-t-shirt-printing-machine.jpg)
What's the technology parameters? Model | BK-G10 | BK-G15 | BK-G20 | BK-G30 | BK-G50 |
Power | 10W | 15W | 20W | 30W | 50W |
Iterm | 20W 30W 50W Co2 T Shirt Printing Machine |
Laser Wavelength | 1064nm |
Frequency Range | 20-80KHZ |
Beam Quality | <2 | <3 | <5 |
Engraving Line Speed | ≤5000mm/s |
Minimum Width | 0.03mm(Depends on the material) |
Minimum Character | 0.3mm(Depends on the material) |
Repeat Accuracy | ±0.003mm |
Power supply | 90-260V/50Hz-60Hz |
The Highest Marking Workpiece | 300mm(Select 170*170mm ,Highest 250mm) |
Power Consumption | 500W | 1000W |
Engrave Depth | ≤0.3mm | ≤0.5mm | ≤1.0mm |
Operation System | WinXP/Win7 |
Cooling Mode | Built in air cooling |
Engrave Range | Standard 110*110mm(optional 140*140mm 200*200mm-300x300mm) |
File Formats | All fonts in WINDOWS system |
Contour Size of The Unit(s) | Contour Size :650*800*1450mm(width*Depth*Height) Movements itinerary :500mm operating platform :320*280mm |
Machine Total Weight | 95Kg |
What industries can be applied to?
1. Sheet metal fabrication | 6. Elecrical cabinet | 11. Elevator |
2. Automotive parts | 7. Aviation&Aerospace | 12. Lighting lamps |
3. Metal carfts & decoration | 8. Hardware | 13. Advertising |
4. Furniture | 9. Kitchenware equipment | 14. Fitness equipment |
5. Medical equipment | 10. Agricultural machinery | 15. watches & glassware |
What materials can be marked?
Material | CO2 Laser machine | Material | fiber laser machine |
Wood | √ | Aluminum | √ |
Acryic | √ | Stainless Steel | √ |
Fabric | √ | ABS | √ |
Glass | √ | Brass | √ |
Coated Metals | √ | Carbon Fiber | √ |
Ceramic | √ | Carbon Nanotube | √ |
Delrin | √ | Cobait Chorme Steel | √ |
Cloth | √ | Copper | √ |
Leather | √ | Colored Delrin | √ |
Marble | √ | Diallyl Phthalate | √ |
Matte Board | √ | Gless Filled PPEK | √ |
Melamine | √ | Gless Filled Telfon | √ |
Paper | √ | Magnesium | √ |
Mylar | √ | Metal Plated Ceramics | √ |
Press Board | √ | Molybdenum | √ |
Rubber | √ | Mild Steel | √ |
Wood veneer | √ | Nylon | √ |
Fiber Glass | √ | Polybutylene Terephthalate | √ |
![](/proimages/44f3j00cpFTNPMhrgbJ/20w-30w-50w-co2-t-shirt-printing-machine.jpg)
Pre-sales services
a.Inquiring and consulting support.
b.Sample testing support.
c.visiting our factory
After-sales services
a. 2 year guarantee period for product quality;
b. Free training for machines installation and operation;
c. Lifelong maintenance and spare parts supply.
![](/proimages/44f3j00ognaNivPrucm/20w-30w-50w-co2-t-shirt-printing-machine.jpg)

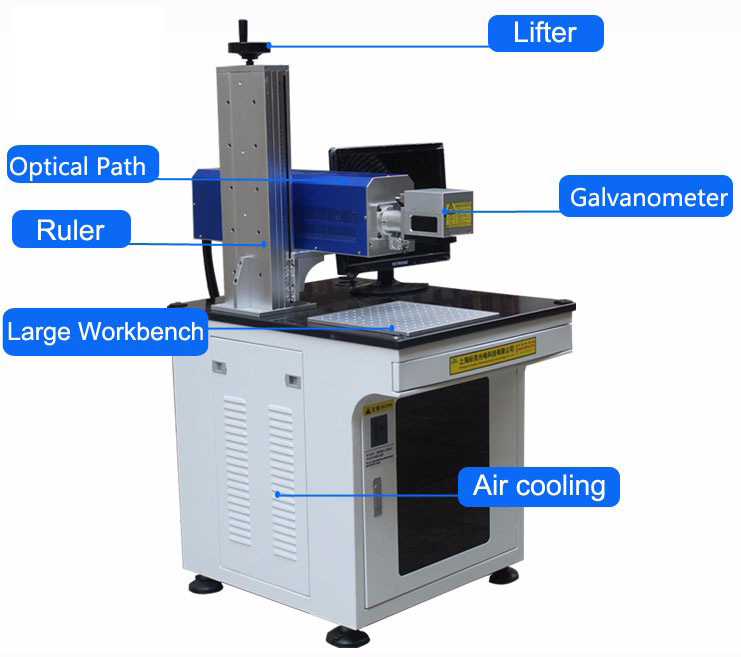

The Main Feature About The Marking Machine
1. High speed with galvanometer.
2. Small volume,light weight.
3. Low power,consumption power is less than 500w.
4. completely air cooling,low power consumption.
5. No influence of the severe environment temperature change.
Hangzhou Nuoen Precision Instrument & Equipment Co.,Ltd.
Mainly engaged in Marking machine,Cutting machine ,Cleaning machine ,Welding machine etc.
![](/proimages/44f3j00cpOTNeMwQrkJ/20w-30w-50w-co2-t-shirt-printing-machine.jpg)
![](/proimages/44f3j00krOtNjeULpqm/20w-30w-50w-co2-t-shirt-printing-machine.jpg)
Packing
E: We have 3 layers package.For the outside, we adopt wood craft case.In the middle, the marking machine is covered by foam.For the inside layer, the Portable machine is covered by thickening plastic bag for waterproof.
Transportation
E: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation.We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Installing the marking machine
E: will senwed detail training video,95%customers can learn by themselves.
How can I do if the marking machine goes wrong?
E: If confronted with such problems, please contact us ASAP and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
