Prod Model: |
EW03 |
Name: |
Home Use Electrical Wire |
Payment: |
L/C T/T |
Trade Terms: |
Fob CFR |
Port: |
Qingdao |
Type: |
Insulated |
Conductor Type: |
Solid |
Conductor Material: |
Copper |
Insulation Material: |
PVC |
Certification: |
UL |
Application: |
Home Use |
Brand: |
Dayuan |
Product Description
2.5 square meter electrical pvc insulated wire450/750v household Building wire pvc insulated copper cable wires factory price
Product introduction :

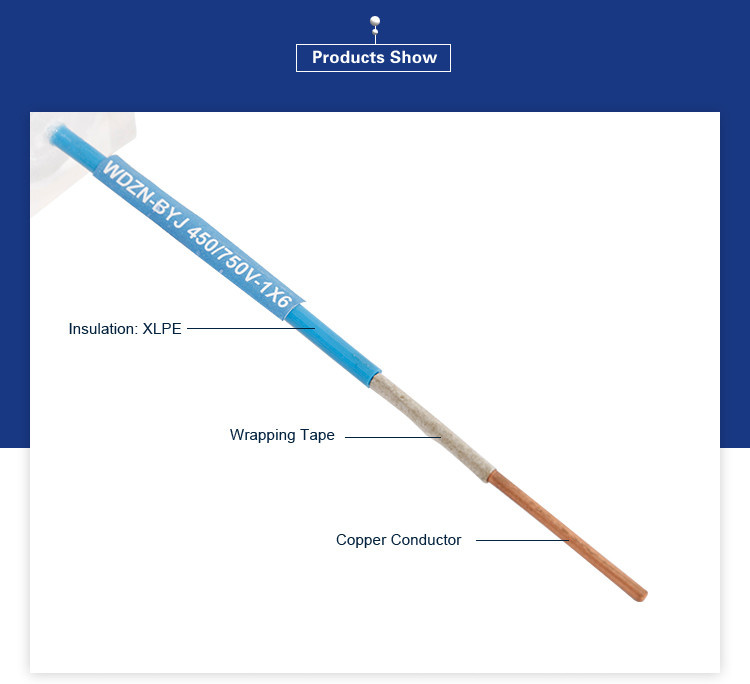

1) Conductor: Copper; Solid, Stranded & Flexible; 1~5 Cores
2) Insulation: Polyvinyl Chloride (PVC), Flame-Retardant or Halogen Free Polyolefin, Rubber, XLPE, etc.
3) Sheath: Non-Sheathed or PVC, PE, etc.
4) Features: Solid, Flexible, Round, Flat, Flame-Retardant, Fire-Resistant, Heat-Resistant, Low Smoke and Fume, Low Smoke Zero Halogen, High Temperature Resistant, etc.
5) Rated Voltage: 450/750V or 300/500V
6) Work Temperature: 70°C / 90°C / 105°C / 120°C / 150°C / 200°C / 250°C
7) Colors: Red, Blue, Brown, White, Black, Yellow, Two Colors, etc

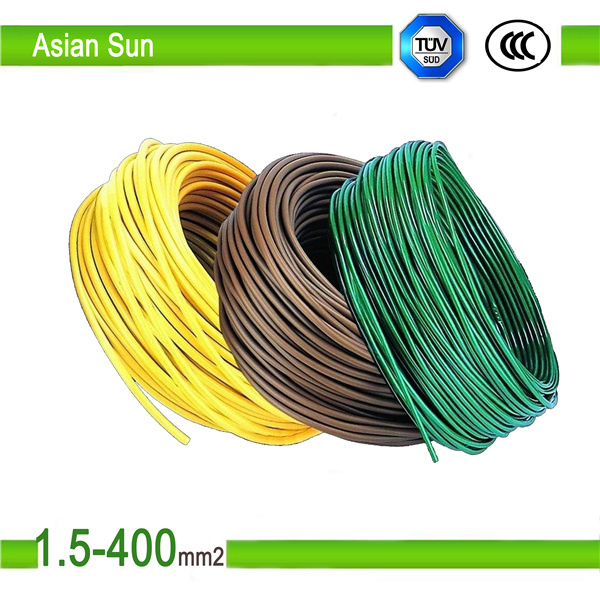

![](/proimages/44f3j00gtuEfMDlBWpr/25-square-meter-electrical-pvc-insulated-wire.jpg)
Nominal Cross-sectional Areas
1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 ,
95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 , 500 mm2 , 630 mm2 ,
800 mm2
Model | YJV YJLV YJY YJLY |
Rated Voltage KV | 0.6/1 | |
Laying Way | Light |
Conductor temperature | 90ºC |
Environment Temperature | 30ºC | 35ºC | 40ºC | 30ºC | 35ºC | 40ºC |
Nominal cross section mm2 | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
1.5 | 24 | - | 23 | - | 22 | - | - | - | - | - | - | - |
2.5 | 32 | 24 | 30 | 23 | 29 | 22 | - | - | - | - | - | - |
4 | 43 | 33 | 41 | 31 | 39 | 30 | - | - | - | - | - | - |
6 | 51 | 43 | 49 | 41 | 47 | 39 | - | - | - | - | - | - |
10 | 71 | 55 | 68 | 52 | 65 | 50 | - | - | - | - | - | - |
16 | 94 | 73 | 89 | 70 | 86 | 67 | - | - | - | - | - | - |
25 | 125 | 95 | 120 | 90 | 115 | 87 | 136 | 104 | 130 | 99 | 125 | 95 |
35 | 153 | 120 | 146 | 114 | 140 | 110 | 164 | 125 | 156 | 120 | 150 | 115 |
50 | 185 | 142 | 177 | 135 | 140 | 130 | 196 | 153 | 187 | 146 | 180 | 140 |
70 | 234 | 180 | 224 | 172 | 215 | 165 | 240 | 185 | 229 | 177 | 220 | 170 |
95 | 283 | 218 | 270 | 208 | 260 | 200 | 338 | 256 | 322 | 244 | 310 | 235 |
120 | 327 | 251 | 312 | 239 | 300 | 230 | 338 | 256 | 32 | 244 | 310 | 235 |
150 | 371 | 283 | 354 | 270 | 340 | 260 | 376 | 289 | 359 | 376 | 345 | 265 |
185 | 425 | 327 | 406 | 312 | 390 | 300 | 431 | 332 | 411 | 317 | 395 | 305 |
240 | 496 | 382 | 473 | 364 | 455 | 350 | 507 | 387 | 484 | 369 | 465 | 355 |
Production range
Single core cable: from 1.5 mm2 to 800 mm2,
Multi-core cable: from 1.5 mm2 to 400 mm2
