Prod Model: |
AS-PC-010 |
Standards: |
IEC, ASTM, DIN.BS |
Size: |
1-400mm2 |
Conductor: |
Annealed Copper |
Color: |
Yelow, Red, Blue, Green or Requirement |
Application: |
Underground |
Voltage: |
Low and Medium Voltage Cable |
Insulation Material: |
PVC |
Certification: |
RoHS |
Model: |
BV Bvr |
Brand: |
Asian Sun |
Product Description
Product Description

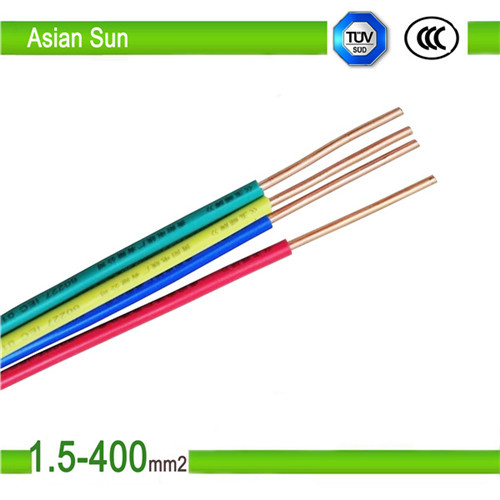

State Grid Copper BV Power Cable
Type THW is a single conductor ground wire suitable for non-grounded multiconductor cables. Compatible with twisted, heavy-duty,jacketed, or parallel cables. These wires are manufactured to UL standard Type THW. The solid bare copper conductor is insulated with a moisture-resistant, polyvinyl chloride (PVC) insulation .
1.For installation in conduits and other raceways
2.Oil and grease resistant insulation
3.Abrasion and crush resistant
4.THW insulation is flame retardant PVC and meets the UL VW-1 flame test
5.Maximum continuous conductor temperature: 75°C Dry, 75°C Wet
UL1007 Pvc Insulated Electrical Cable Wire
AWG or kcmil | Strand | Nominal Insulation Thichness Inch/mm | Nominal Overall Diameter Inch/mm | Cable Weight Lbs/kft kg/km |
14 | 1 | 0.030 | 0.76 | 0.169 | 4.3 | 22 | 33 |
12 | 1 | 0.030 | 0.76 | 0.189 | 4.8 | 32 | 47 |
10 | 1 | 0.030 | 0.76 | 0.213 | 5.4 | 46 | 68 |
8 | 1 | 0.045 | 1.14 | 0.240 | 6.1 | 67 | 100 |
14 | 7 | 0.030 | 0.76 | 0.177 | 7 | 101 | 151 |
12 | 7 | 0.030 | 0.76 | 0.201 | 4.5 | 24 | 36 |
10 | 7 | 0.030 | 0.76 | 0.228 | 5.1 | 34 | 50 |
8 | 7 | 0.045 | 1.14 | 0.291 | 5.8 | 49 | 73 |
6 | 7 | 0.060 | 1.52 | 0.335 | 7.4 | 79 | 118 |
4 | 7 | 0.060 | 1.52 | 0.386 | 8.5 | 117 | 174 |
2 | 7 | 0.080 | 2.03 | 0.445 | 9.8 | 172 | 256 |
1 | 19 | 0.080 | 2.03 | 0.531 | 11.3 | 263 | 391 |
1/0 | 19 | 0.080 | 2.03 | 0.575 | 13.5 | 339 | 505 |
2/0 | 19 | 0.080 | 2.03 | 0.622 | 14.6 | 418 | 622 |
3/0 | 19 | 0.080 | 2.03 | 0.677 | 15.8 | 515 | 767 |
4/0 | 37 | 0.080 | 2.03 | 0.740 | 17.2 | 638 | 950 |
250 | 37 | 0.095 | 2.41 | 0.823 | 18.8 | 792 | 1179 |
300 | 37 | 0.095 | 2.41 | 0.882 | 20.9 | 943 | 1404 |
350 | 37 | 0.095 | 2.41 | 0.937 | 22.4 | 1118 | 1664 |
400 | 37 | 0.095 | 2.41 | 0.984 | 23.8 | 1292 | 1923 |
500 | 61 | 0.095 | 2.41 | 1.079 | 25 | 1465 | 2180 |
600 | 61 | 0.110 | 2.79 | 1.197 | 27.4 | 1810 | 2694 |
Factory Information
UL1007 Pvc Insulated Electrical Cable Wire
Luoyang Asian Sun Industrial Group Co., Ltd. was established in 2006 with RMB 50 million registerde capital in Luoyang, Henan Province, China. Now our total assets is RMB 300 million. The company covers an area 61,081 square meters, and has 4 affiliates with more than 300 employees including 15 engineers and technicians.
