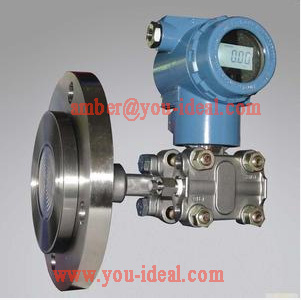

Uipt203/T213/T223 Flange Type Diaphragm Pressure Sensor- Pressure Transmitter
| Price: |
US $ 182/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
UIP-T |
| Housing Material: |
Al |
| Output Signal: |
4~20mA/Hart, |
| Diaphragm Material: |
Ss316L, Hastelloy C, etc |
| Pressure Range: |
0- 6MPa |
Product Description
Overview
It adopts two process connection: flat flange and extended flange. Hermetically sealed diaphragm can be made of many alloy materials. If installed with temperature isolator or capillary tube, Flange Type Diaphragm Pressure Transmitter can measure medium of as high temperature as 350ºC. Flange diaphragm pressure transmitter is well-adapted and available for pressure measurement of many strong corrosion and high viscosity medium, as well as the occasion that is easy to plug. Other technical performance is involved in the description of "UIP-T20 pressure transmitter."i"type is intrinsic safety type; "d"type is flame-proof type.
The data table | nominal diameter | overall height | Diaphragm Diameter | Convex body diameter | Hole center diameter | flange diameter | hole diameter | Flange thickness |
| DN | A | dM | d | K | D | n×L | C |
| 50 | 171 | 46 | 99 | 125 | 165 | 4×φ18 | 20 |
| 80 | 175 | 70 | 132 | 160 | 200 | 8×φ18 | 24 |
| selection code |
DN | extend diaphragm diameter
d1 | extend diaphragm length
B | nominal pressure
PN | weight
|
| B | 50 | - | 0 | 4MPa | 3.8 |
| M | 50 | 48.3 | 50 | 4MPa | 4.3 |
| E | 50 | 48.3 | 100 | 4MPa | 4.8 |
| K | 50 | 48.3 | 150 | 4MPa | 5.3 |
| P | 50 | 48.3 | 200 | 4MPa | 5.8 |
| L | 80 | - | 0 | 4MPa | 6.0 |
| S | 80 | 77.0 | 50 | 4MPa | 6.8 |
| G | 80 | 77.0 | 100 | 4MPa | 7.2 |
| N | 80 | 77.0 | 150 | 4mpa | 7.8 |
| C | 80 | 77.0 | 200 | 4MPa | 8.4
|
Model selection | Code | Transmitter type |
| UIP-T203 | Flange diaphragm pressure transmitter |
| UIP-T213 | Flange diaphragm pressure transmitter(Temperature segregation type) |
| UIP-T223 | Flange diaphragm pressure transmitter(Capillary remote type) |
| Code | Transmitting and Output |
| G | 4-20mA, linear, Analog/Damping-adjustable |
| S | 4-20mA, Intelligence, Hart protocol |
| Code | Diaphragm Material |
| 1 | 316L stainless steel |
| 2 | Hastelloy C |
| 5 | tantalum |
| 7 | 316L stainless steel with PTFE film |
| 9 | Special needs |
| Code | Process connecting |
| B | flangeGB9123.1-2000 DN50 PN4MPa |
| M | flangeGB9123.1-2000 DN50 PN4MPa extend50mm |
| E | flangeGB9123.1-2000 DN50 PN4MPa extend100mm |
| K | flangeGB9123.1-2000 DN50 PN4MP extend150mm |
| P | flangeGB9123.1-2000 DN50 PN4MPa extend200mm |
| L | flangeGB9123.1-2000 DN80 PN4MPa |
| S | flangeGB9123.1-2000 DN80 PN4MPa extend50mm |
| G | flangeGB9123.1-2000 DN80 PM4MPa extend100mm |
| N | flangeGB9123.1-2000 DN80 PN4MPa extend150mm |
| C | flangeGN9123.1-2000 DN80 PN4MPa extend200mm |
| Y | Special needs |
| Code | Mediation liquid |
| | The same as UIP-T202Screw-in type diaphragm pressure transmitter Model Selection(See page P13) |
| Code | Housing local display Protection class |
| | The same as UIP-T20pressure transmitter Model Selection(See page P7) |
| Code | Accuracy Class |
| | The same as UIP-T20 series pressure transmitter Model Selection See page P7 |
| Code | Measure range(For Code, please refer to standard range table 1 and standard range table 2 page 37.) |
| Y | Special needs |
| Code | sensor type |
| C | ceramic capacitance sensor |
| S | diffuse silicon piezo resistance sensor |
| Code | flameproof type of enclosure |
| i | intrinsic safety type, explosive-proof grade Exia II CT6 |
| D | anti-explosion type, explosive-proof grade Exd II BT6 |
| / | capillary tube length(m) [ limited to UIP-T223] |
