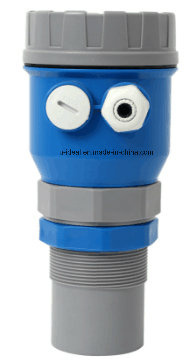

Low Cost Ultrasonic Level Sensor for Water, Fuel
| Price: |
US $ 110-119/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
UILB |
| Measuring Range: |
0-70m |
| Signal Output: |
4-20mA, Hart, RS232, RS485 |
| Process Pressure: |
-0.1 - 4.0MPa |
| Explosion Proof Grade: |
Exia LLC T6 GB |
| Output Signal Type: |
4-20mA, Hart, RS232, RS485 |
| Sensitivity: |
0.1-0.2% |
| Measuring Medium: |
Liquid, Solid |
Product Description
Application
Liquid level or material level measurement
Features2-wire series Ultrasonic levelmeterTechnical SpecificationsMeasuring Range: 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30mBlanking Distance: 2m: 0.25m 5m: 0.40m 8m: 0.50m 10m: 0.50m 12m: 0.60m 15m: 0.60m 20m: 1.0m 25m: 1.2m 30m: 1.50m Accuracy: 0.3% Full Span (In air)
Resolution Ratio Shown: 1mm
Mode of Indication:4 Digit LCD
Output Current: 4~20mA ; hart is selectable
Output Load: 0~1000Ω
Output Resolution Ratio: 0.03% full span
Parameter Set Up: 3 induction buttons
Temperature Range: -40ºC~80ºC
Temperature Compensation: The whole range is automatic compensation
Pressure Range: ±0.1MP (press definitely)
Power Supply: DC24V-32V; DC12V working temperature: -10 C~60C
Process connection port: M60x2
Electric entry: M20x1.5
Protection Class: IP65Crust Material: ABS
Sensor Material: PVC
Protect Grade: IP65
