Transformer Thermoregulator

Name: Transformer Thermoregulator
Brand: all-electronics-online.com
SKU: 688466762
Availability: InStock
Rating: 4.4 (129 reviews)

Price:	US $ 200-2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	VBWY-804 ATH/VBWY-804 DTH Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Constant Voltage Signal:	(0-5)V (1-5)V
Indicative Accuracy:	Direct Current Signal
Communication Interface:	RS232 or RS485
Certification:	ISO
Type:	Temperature Sensor
Control Type:	Digital
Display Type:	LED
Material:	Stainless Steel
Usage:	Transformer Temperature Controll

Product Description

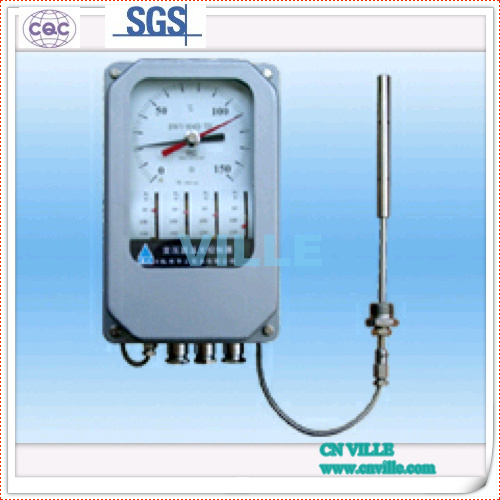

VBWY-804 Transformer Thermoregulator is a new generation product derived from Model BWY 802/803 one in compliance with JB/T 6302 Standard of Pressure-type Thermoregulator For Transformer issued by THE National Machinery Ministry. It is suitable for taking measurement and control of oil temperature in a medium-sized or Large-sized Transformer.
Main Technical Parameters:
1, Normal operating conditions: (-30~+55)º C
2, Measuring range: 0~100 0~120 0~150
3, Indicative accuracy: 1.5 grade
4, Control function:
(1). Setting range: Adjustable within the whole span
(2). Setting accuracy: ± 3
(3). Switch difference: 6± 2
(4). Rated power of switch: AC 250V/3A
(5). Standard set Point:
0-100: K1=55 K2=65 K3=80 K4=90
0-120: K1=55 K2=65 K3=80 K4=100
0-150: K1=55 K2=65 K3=80 K4=130
5, Output:
(1). Pt 100 platinum resistance signal
(2). DC (4-20) mA signal
(3). DC (0-5) V signal
6. Protection grade: IP55

4, Control point setting
4.1 Of VBWY-804 Thermoregulator:
The temperature control points of eachV BWS— 804 have been already set in accordance with JB/T6302-92 standard before its delivery. (refer to: 3. Main techuical parameters) If users need to change the value of set points, please follow below procedures:
4.1. 1 take off the meter cover with a supplied 10mm solid wrench;
4.1. 2 Unscrew switch fixed bolts with a supplied 6mm solid wrench (refer to figure 4 );
4.1. 3 stir the red setting needles to set value planned;
4.1. 4 screw back switch fixed bolts;
4.1.5 close the cover.
4.2 Of VXMT-288F/288FC digital display thermometer:
4.2. 1 shift the toggle switch to "set" position(Figure 3 );
4.2. 2 Adjust the regulating potentiometer until the temperature value planned;
4.2. 3 shift the toggle switch back to "measurement" position.

-10	96.09Ω	31	112.06Ω	72	127.84Ω	113	143.43Ω
-9	96.48	32	112.45	73	128.22	114	143.80
-8	96.87	33	112.83	74	128.61	115	144.18
-7	97.26	34	113.22	75	128.99	116	144.56
-6	97.65	35	113.61	76	129.37	117	144.94
-5	98.04	36	114.00	77	129.75	118	145.31
-4	98.44	37	114.38	78	130.13	119	145.69
-3	98.83	38	114.77	79	130.52	120	146.07
-2	99.22	39	115.15	80	130.90	121	146.44
-1	99.61	40	115.54	81	131.28	122	146.82
0	100.00	41	115.93	82	131.66	123	147.20
1	100.39	42	116.31	83	132.04	124	147.57
2	100.78	43	116.70	84	132.42	125	147.95
3	101.17	44	117.08	85	132.80	126	148.33
4	101.56	45	117.47	86	133.18	127	148.70
5	101.95	46	117.86	87	133.57	128	149.08
6	102.34	47	118.24	88	133.95	129	149.46
7	102.73	48	118.63	89	134.33	130	149.83
8	103.12	49	119.01	90	134.71	131	150.21
9	103.51	50	119.40	91	135.09	132	150.58
10	103.90	51	119.78	92	135.47	133	150.96
11	104.29	52	120.17	93	135.85	134	151.33
12	104.68	53	120.55	94	136.23	135	151.71
13	105.07	54	120.94	95	136.61	136	152.08
14	105.46	55	121.32	96	136.99	137	152.46
15	105.85	56	121.71	97	137.37	138	152.83
16	106.24	57	122.09	98	137.75	139	153.21
17	106.63	58	122.47	99	138.13	140	153.58
18	107.02	59	122.86	100	138.51	141	153.96
19	107.40	60	123.24	101	138.88	142	154.33
20	107.79	61	123.63	102	139.26	143	154.71
21	108.18	62	124.01	103	139.64	144	155.08
22	108.57	63	124.39	104	140.02	145	155.46
23	108.96	64	124.78	105	140.40	146	155.83
24	109.35	65	125.16	106	140.78	147	156.20
25	109.73	66	125.54	107	141.16	148	156.58
26	110.12	67	125.93	108	141.54	149	156.95
27	110.51	68	126.31	109	141.91	150	157.33
28	110.90	69	126.69	110	142.29
29	111.29	70	127.08	111	142.67
30	111.67	71	127.46	112	143.05
