| Prod Model: |
VWTYX-1032 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Constant Voltage Signal: |
(0-5)V (1-5)V |
| Indicative Accuracy: |
Direct Current Signal |
| Communication Interface: |
RS232 or RS485 |
| Certification: |
ISO |
| Control Type: |
Digital |
| Type: |
Temperature Controller |
| Material: |
Stainless Steel |
| Usage: |
Transformer Temperature Controll |
Product Description

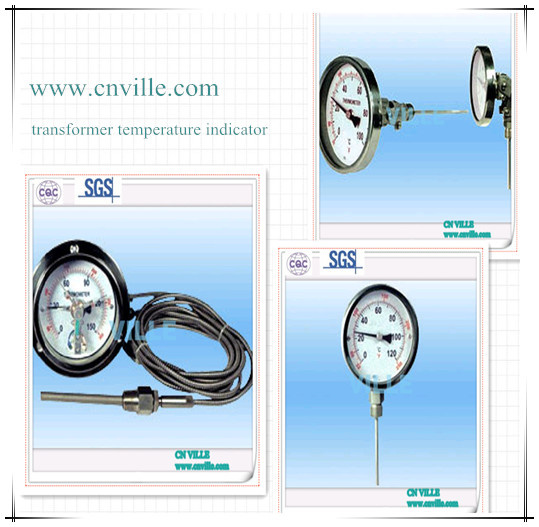

The BWS-11 Transformer Temperature & Level Indicator is a field meter designed to take the measurement of the oil temperature and level in the tank of a small-capacity oil-immersed transformer. The BWS-11 indicator is featured by firmness, vibration resistance, visual indication and no mercury danger as well. With directly mounted on the transformer instead of both glass mercury thermometer and oil gauge, the BWS-11 can reliably and safely detect the temperature and level changes of oil in the transformer.
In addition to the temperature indicating graduations, the dial of the indicator is marked in different colors, which correspond to their temperature ranges respectively.
The BWS-11 has adopted a weatherproof system, so it is available both indoors and outdoors.
The BWS-10 Transformer Oil Level Indicator is a field detector specially used for indicating the oil level in a miniature transformer. The indicator is featured by firmness, vibration resistance and clear reading. Being directly mounted on the transformer, It can reliably and safely detect the level changes of oil in the transformer.
The BWS-01 Transformer Temperature Indicator is a field temperature meter designed to measure the oil temperature in the tank of a small-capacity oil-immersed transformer. In comparison with a Glass Mercury Thermometer, the main features of the BWS-01 Indicator are its firmness, vibration resistance, visual indication and no mercury danger as well.
In addition to the temperature indicating graduations, the dial of the BWS-01 is marked in different colors, which correspond to their temperature ranges respectively. Therefore, it is possible for users to read the temperature value at a distance. BWS-01 has adopted a weatherproof system, so it is available both indoors and outdoors.
Main Technical Parameters:
BWS-11 Transformer Temperature & Level Indicator:
1, Temperature measuring range: (0~120)
2, Temperature measuring accuracy: Grade 2.5(i. E. The error allowed is ± 3)
3, Oil level indicating range: 20mm
4, Ambient temperature: (-40~80)
5, Ambient humidity: (0~100)%
6, The maximum compressive resistance of the protective tube: 1.6Mpa
7, Time constant of temperature measuring: <40s
8, Mounting screw: M48× 2
BWS-10 Transformer Oil Level Indicator:
1, Oil Level Indicating Range: 30mm(1.18in)
2, Ambient temperature: (-40~80)
3, Ambient humidity: (0~100)%
4, Mounting screw: M48× 2
BWS-01 Transformer Temperature Indicator:
1, Measuring range: (0~120)
2, Ambient temperature: (-40~80)
3, Ambient humidity: (-5~100)%
4, Measuring ac curacy: 2.5 grade (i. E. The error allowed is ± 3)
5, The maximum compressive resistance of the protective tube: 1.6Mpa
6, Mounting screw: M27× 2
| Measuring range | -10~120 |
| The maximum compressive resistance of the protective tube | 1.6Mpa |
| Measuring accuracy | grade2.5(i.e.the error allowed is±3) |
| Ambient humidity | -5~100% |
| Ambient temperature | -40~80 |
| Time constant of temperature measuring | <40s |
| Mounting screw | M27×2 |
|
|
|
|
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
