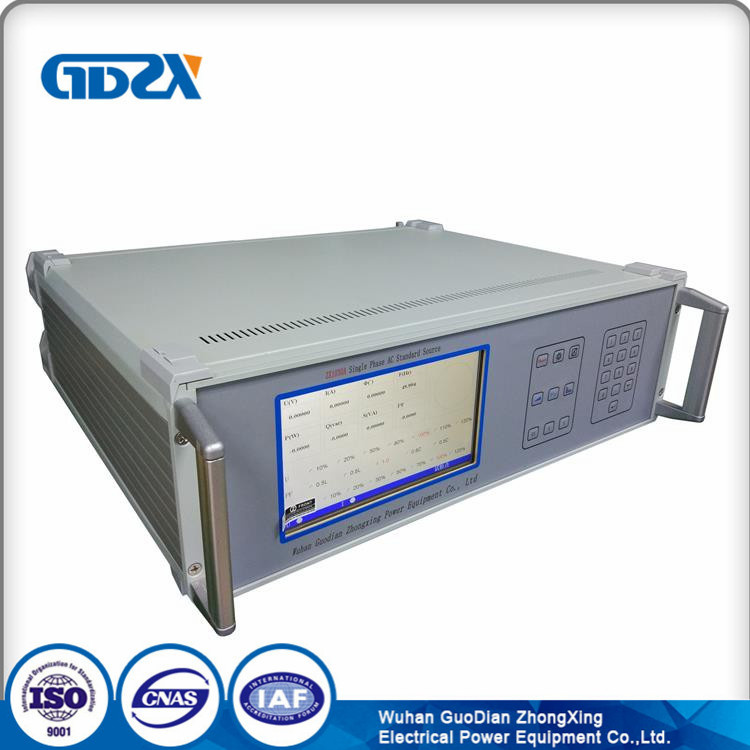

Single Phase AC Standard Testing Source Instrument Calibration Equipment
| Price: |
US $ 5000-8000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ZX1030A |
| Working Environment: |
20ºC±10ºC, ≤85%RH |
| Accuracy: |
0.1 |
| Output Voltage: |
0-280V |
| Output Current: |
0.025A,0.1A,1A,5A,25A,100A |
| Output Stability: |
≤0.05%/120S PF=1 |
| Frequency: |
45Hz~65Hz |
| Phase Range: |
-180.0° ~180.0° |
| Meter Positions: |
6 |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
Product Description

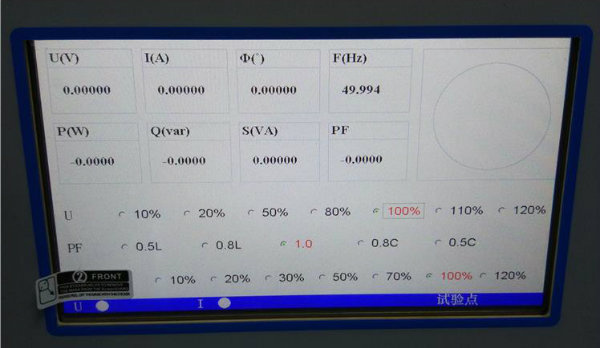

Features: 1. Built-in digital multi-function standard meter with Integrated structure of meter and power source, electrical parameters can be read via software2. adopts DDS technology, CPLD and RAM embedded system, featured with high stability of signal source output, small fineness, low distortion3. RAM system large color LCD display, massive information can be seen directly through screen4. use PWM digital power amplifier with above 90% efficiency and 300KHz carrier frequency, to have advantages of low distortion, little heating, high efficiency5. Perfect protection function: voltage short circuit alarm, open circuit and over load alarm6. Built-in OCXO for 50KHz high precision impulse output, which can be used to calibrate energy meter clock, also can test day
error/hour segment error when matching with meter calibration software (optional)7. With 485 communication interface, can do various communications test for universal meters (optional) Technique Parameters: 1. Instrument accuracy: 0.1%, built in meter accuracy: 0.1%2. Output voltage: 0~280V Rated voltage range: 100V~240V (any value can be set) Regulation amplitude: 0~120% each gear Regulation fineness: better than 0.01% Built-in 3 terminal independent voltage circuit, each terminal output capacitance ≤15VA3. Output current: 0.025A,0.1A,1A,5A,25A,100A Regulation range: 0~120% continuously adjustable, fineness: better than 0.01% Minimum output current: 5mA accuracy: ≤0.5%4. Output power: voltage circuit ≤100VA, current circuit ≤180VA5. Stability of output voltage current power : ≤0.05%/120S PF=1 6. Output voltage current waveform distortion: ≤ 0.5%7. Frequency range: 45Hz~65Hz regulation fineness: 0.1Hz8. Phase range: -180.0° ~180.0°regulation fineness: 0.1°9. Indicating instrument accuracy level: voltmeter,ammeter ±0.2% Phase meter accuracy ±0.3° Frequency meter accuracy: ±0.1Hz10. Test Meter numbers: 1 - 6 pcs11. Standard crystal oscillator 2×10-7 for options12. Power supply: AC 220V±10%~50Hz13. Maximum power consumption: 300VA14. Working environment: temperature 20ºC±5ºC relative humidity≤85%15. Size and weight: 450×156×500 mm, 20Kg
