Clamp Meter Tester Single Phase AC DC Testing Source

Name: Clamp Meter Tester Single Phase AC DC Testing Source
Brand: all-electronics-online.com
SKU: 819098225
Availability: InStock
Rating: 4.7 (142 reviews)

Price:	US $ 1800-2200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZX1030E
Display:	Five and a half bit digital
AC/DC Current Output Range:	0~20A
Three AC Frequency:	50Hz, 60 Hz,400 Hz
Test Coil Range:	500-1000A
Power Supply:	AC DC 220V±10%, 50 Hz
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V

Product Description

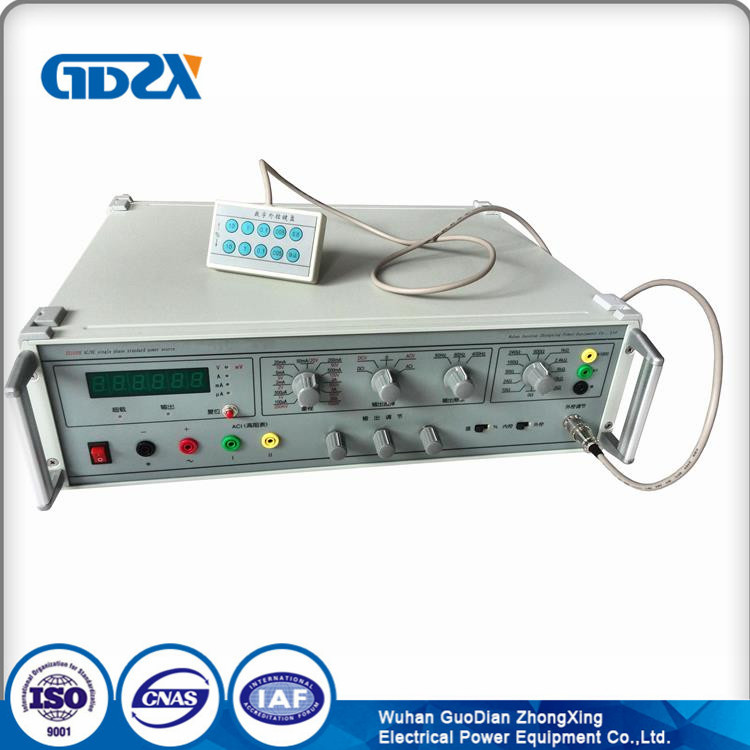

This device is used for testing and calibrating all kinds of ammeter, voltmeter, ohmmeter under 0.2 level. It can also be used as testing power source, matching with high level standard meters to calibrate ammeter, voltmeter, ohmmeter at 0.2 or higher level. There are two regulation modes: analog regualtion (potentiometer) and digital regulation (keyboard).

Features:

5 ^1/2 LED digitally display output by actual value or by percentage
AC/DC current output range: 0~100 uA ~500uA ~2mA~5mA~20mA ~50mA ~200mA ~500mA ~2A~5A~20A
AC/DC voltage output range: 0~200mV~1V~2V~5V~10V~20V~50V~100V~200V~500V~1000V
Three AC frequency for option: 50Hz,60 Hz,400 Hz
Auto protection or manual reset function for over load
Over load rang is 10% for each level of voltage, current
Clamp meter measurement: matching with our company standard coil, measuring range AC 0~750A ( above 1000A for some meters) DC 0~1000A, error: ±0.3%

Technique Parameters:

1. Stablity: DC < 0.01% of full range / 2 min, AC < 0.03% of full range / 2 min
2. AC distortion: <0.5%
3. DC ripple coefficient: <0.1%
4. Output frequency and accuracy: 50 Hz,60 Hz,400 Hz: <1%

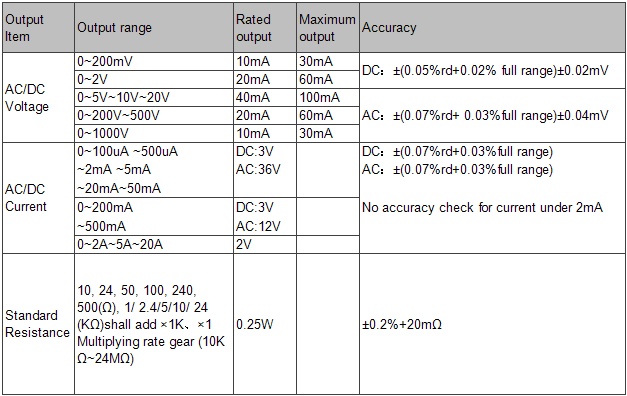

5. Voltage Current Output range and accuracy: (23ºC±2ºC > 10% range)
6. Power supply consumption: AC 220V±10%, 50 Hz±1Hz, <180VA
7. Working environment: temperature 5ºC~35ºC relative humidity ≤80%
8. Working time: continuous
9. Size and weight: 135×480×420mm 16KG

Clamp meter test coil

Applies to frequency: DC 50Hz (60Hz, 400Hz)
Conversion accuracy: ±0.2%
Parameters

Index	DC internal resistance	Jaw opening	Power supply request
Index	DC internal resistance	Jaw opening	DC	AC
500A (10A 50 turns)	0.2Ω	>16mm	10A/2V	10A/2.5V
1000A(10A 100 turns)	0.24Ω	>28mm	10A/2.5V	10A/5V
1000A(20A 50 turns)	0.065Ω	>28mm	20A/1.3V	20A/3V
2000A(20A 100 turns)	0.16Ω	>35mm	20A/3.2V	20A/5V

Wuhan GuoDian ZhongXing Electrical Power Equipment Co., Ltd ( GDZX ) is located in DongHu High Technology Development Zone, Wuhan City, People's Republic of China. The company established in 2012 and the factory area 6000 square meters. Good quality and customer satisfaction are always the goal here.

Our main products are Hipot Test sets, Standard Power Source, Circuit breaker analyzer, Protection relay tester, Resistance Tester, voltage generator, Transformer testing series, Oil tester, Cable and Ground fault testing series, Power quality analyzer, Storage battery tester, Lightning arrester tester and other instruments. Most of the products are featured with Intelligent design, compact structure, simple operation, which make the on site work very convenient.

Not only we are the supplier of China Power Grid System but also we are extending our business to all over the world. In the last two years we made business relationship with customers from Indonesia, Kenya, Ecuador, Japan, Korea, and we are keeping growing. It is exciting to work with your partners from every different countries.

Your any requirement is our pursuit. Welcome to Visit Us
