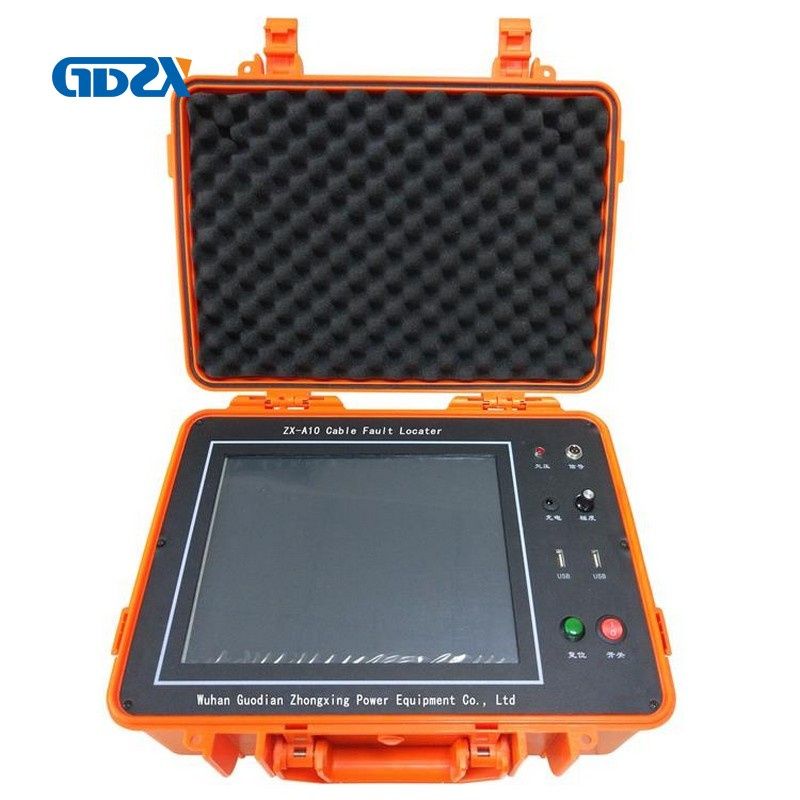

ZX-A10 Cable Fault Tester/Integrated Cable Fault Finder with High Quality

Product Description

1. Testing faults of various power cables, HF coaxial cable, local telephone cable, evenly laid buried wires.

2. Auto calculate the fault distance in case of low-voltage pulse method.

3. Applies to cable voltage under 35kV.

4. Impulse flashover voltage test method, or low-voltage pulse method.

5. Clear screen touch panel operation.

6. High success rate, high accuracy, super convenient.

7. Large LCD screen, strong data processing ability and friendly user interface.

8. Safe protection from sampling high voltage.

9. Screen display capture function, can be used for waveform printing.

10. Simple buttons, high test speed.

11. Built-in power supply for testing open circuit and low impedance short circuit fault.

12. USB interface for data transfer.

13. Ethernet interface for remote data transmission.

1. Test Methods: Impulse high-voltage current sampling method; low-voltage pulse method

2. Impulse voltage: less than 35kV

3. Data sampling rate: 120MHz, 90MHz, 60MHz, 30MHz, 15MHz

4. Test distance:> 40Km

5. Reading resolution: <0.5m

6. System test accuracy: <50cm

7. Test pulse amplitude: about 400VP-P

8. Tested waveform storage function

9. Different tested waveform comparing in one screen and overlay function

10. Built-in power: 2 hours of continuous work after fully charged

11. Working conditions

1) Ambient temperature: -10ºC ~ +45ºC
2)Relative humidity: <90%
12. Atmospheric pressure: 750 ± 30mmHg
