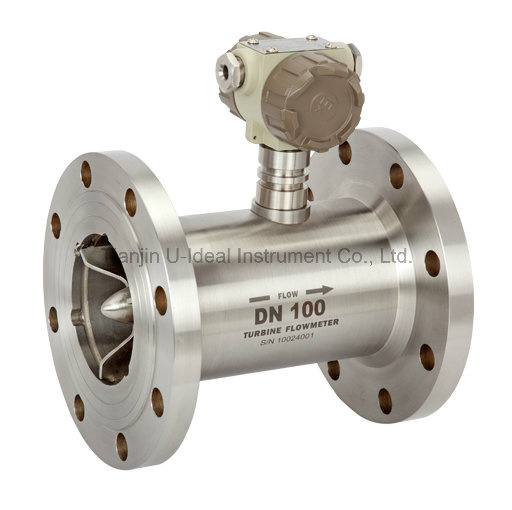

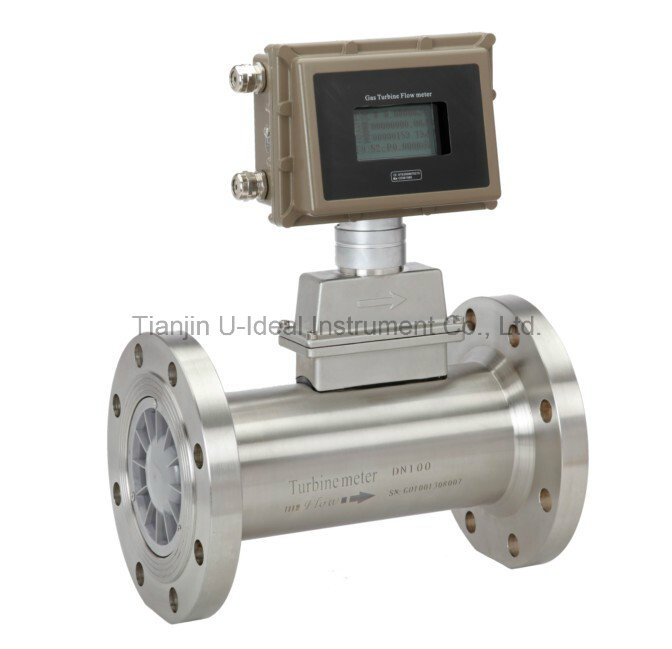

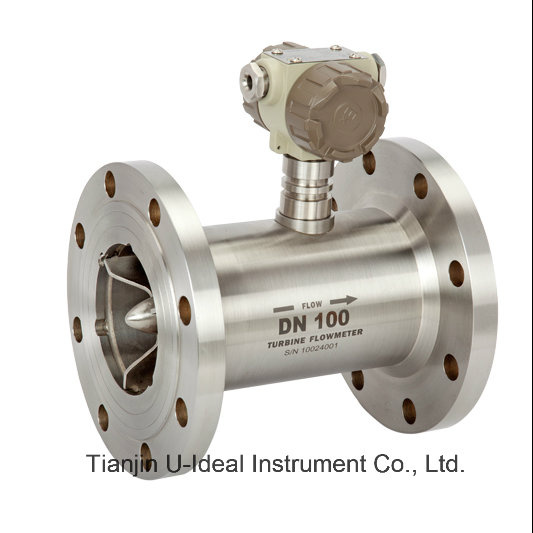

Pulse Signal Turbine Flow Meter- Turbine Flow Sensor
| Price: |
US $ 110/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LWGY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal Type: |
Pulse, RS485, 4-20mA, LCD |
| Service: |
More Stable |
| Medium: |
Liquid, Air, Gas, Water |
| Pressure: |
Suitable for Very High Pressure |
| Measuring Medium: |
Gas, Air, Water, Diesel Fuel, Liquid |
Product Description
Liquid/water flow switch/ water flow sensor/water flow meter; Turbine Flow meter Pulse Signal Turbine Flow Sensor outputing sinal types have: pulse signal, 4~20mA current signal, RS485, LCD. U-ideal Instrument Turbine flow sensor is good in high pressure application. is a type of economical turbine flow sensor.
We are China competitive supplier of steam vortex flowmeter, turbine flowmeter, electromagnetic flow meter, rotameter, flow sensor.
1. turbine flowmeter and flow sensor Product FeaturesMedium temperature: -20~+120º C, 150º C
Ambient temperature: -20~+55º C

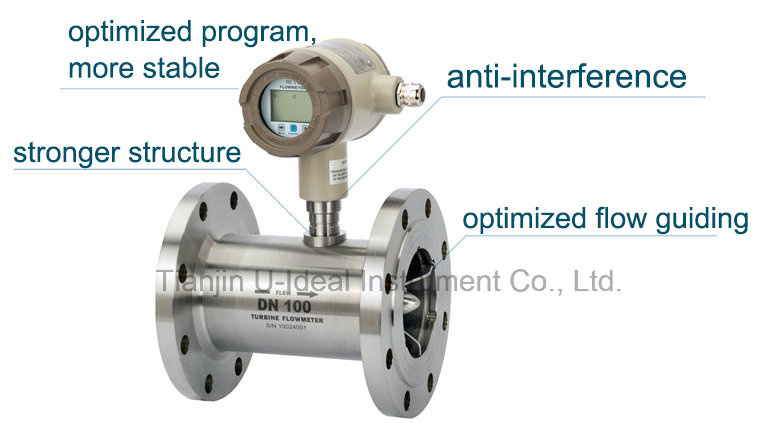

High quality turbine resulting in wider measurement range than conventional ones
Various types of transducers for different applications
The unique Multi-point intelligent non-linear correction to the instrument coefficient
Accuracy assurance due to the standard flow calibration facilities
100% pressure experiment, 100% products quality inspection
Power-Off Protection: The instrument coefficient and the accumulative flow value can be saved for ten years without power

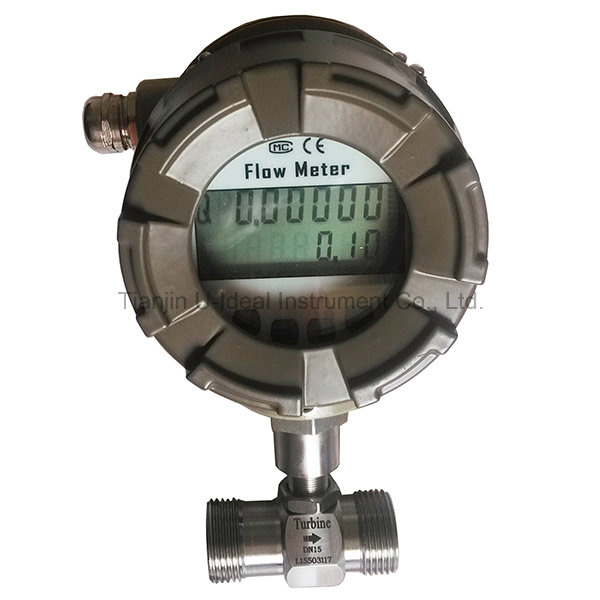

2. flow sensor Basic ParametersSensors of which diameter ranges from DN4 to DN40 are screw thread connection and the maximum pressure tolerance is 6.3Mpa
Sensors of which diameter ranges from DN50 to DN200 are flanged connection and the maximum pressure tolerance is 6.3Mpa
Sensors of which diameter ranges from DN4 to DN40 have straight pipes and filters upstream and downstream.
Our company supplies upstream and downstream straight pipes for the sensors with their diameters lager than DN15
| Meter diameter and connection method | 4,6,10,15,20,25,32,40 apply thread connection |
| (15,20,25,32,40)50,65,80,100,125,150,200 apply flange connection |
| Accuracy class | ± 1%R ,±0.5% |
| Measuring scale ratio | 1:10;1:15;1:20 |
| Material | 304 stainless steel,316(L)stainless steel and others |
| Fluid temperature | -120~+ 12 0ºC |
| Environment | Temperature-10~+ 5 5ºC,relative humidity5%~90%,air pressure86~106Kpa |
| Output signal | Impulse signal,low leve l≤0.8V high level ≥8V |
| Power supply | +12VDC,+24VDC(selective) |
| Signal transmission line | STVPV3*0.3(Three line system)or 2*0.3(2-line system) |
| Transmission distant | ≤ 1000m |
| Signal wire connection | Inner thread M20*1.5 |
| Explosion proof class | ExdIIBT6 |
| Protection class | IP65 |
3. Thchnique feature| Meter diameter and connection method | 4,6,10,15,20,25,32,40 apply thread connection |
| (15,20,25,32,40)50,65,80,100,125,150,200 apply flange connection |
| Accuracy class | ±1%R,±0.5% |
| Measuring scale ratio | 1:10;1:15;1:20 |
| Material | 304 stainless steel,316(L)stainless steel and others |
| Fluid temperature | -120~+120ºC |
| Environment | Temperature-10~+55ºC,relative humidity5%~90%,air pressure86~106Kpa |
| Output signal | Impulse signal, low level≤0.8V high level ≥8V |
| Power supply | +12VDC,+24VDC(selective) |
| Signal transmission line | STVPV3*0.3(Three line system)or 2*0.3(2-line system) |
| Transmission distant | ≤1000m |
| Signal wire connection | Inner thread M20*1.5 |
| Explosion proof class | ExdIIBT6 |
| Protection class | IP65,
IP67 |
Our other related products: Level gauges, flow meters, pressure transmitters, indicators, industrial system.
Welcome to contact if have enquiry.
