| Prod Model: |
level transmitter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Features: |
Anticorrosion Type |
| High Temperature Type: |
-50~200~300 C |
| Kind: |
Liquid Level Transmitter |
| Structure: |
All in One |
| Range: |
>0-30m |
| Principle: |
Piezoelectric Type |
Product Description

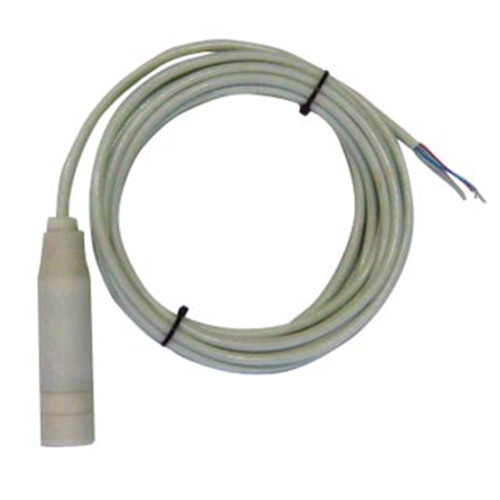

PTFE anti-corrosion type liquid level transmitter, all the wetted parts are made of PTFE material, have characters of high temperature resistance, corrosion resistance and anti clogging. And it is widely used in any liquid level measurement of atmospheric pressure (except for material corrode PTFE).
1. Characteristics
Ø Good stability, high precision, high temperature resistant, corrosion resistant, anti clogging.
Ø Directly input to the measured medium, installation and usage are very convenient.
Ø Compact structure, no moving parts, high reliability, long service life.
Ø It is widely used in any liquid level measurement (except for material corrode PTFE).
Ø Can measure from the water, oil, acid, alkali, salt to larger paste viscosity fluid with high precision measurement, and are affected by foaming of the measured medium, deposition, the influence of the electric property.
Ø Have reverse polarity power supply and overload current protection function.
2. Technical Parameters
Ø Measuring range: 0 ~ 30 meters.
Ø Output signal: 4 ~ 20 mA/DC.
Ø Power supply: 24V+- 5 VDC.
Ø Accurate rating: 0.5%FS.
Ø Long term stability: Plus or minus 0.2% FS/year
Ø Medium temperature: - 50 ~ 100º C( state of not clotting)
Ø High temperature type: -50~200~300º C( state of not clotting)
Flange Connection type
Features: Flange connection LCD type input level sensor use diffusion silicon piezoresistive core body, SS316 meter, Flange: SS304. Explosion-proof shell, are widely used in river, open channel, water reservoir and water tower etc. Liquid level measurement and controlling.
Main technique parameters:
Measuring medium: Water and oil
Pressure type: Meter press, Absolute Pressure (default meter pressure)
Measure range: 0 ~ 300 m
Comprehensive accuracy: 0.1% FS
Output signals: 4 ~ 20 ma (two-wire system), 0 ~ 5 v, 1 ~ 5 v, 0 ~ 10 v (three-wire system)
The power supply voltage: 12 ~ 36 VDC
Medium temperature: - 30 ~ 60 º C
Ambient temperature: - 40 ~ 85 º C
Zero temperature drift: Plus or minus 0.05% FS º C or less
The range of temperature drift, plus or minus 0.05% FS º C or less
Compensation temperature: 0 ~ 70 º C
Sampling frequency: 2 ms or less
Seal level: IP68
Long-term and stable performance: 0.1% FS/year
Vibration impact: In mechanical vibration within 20 hz ~ 1000 hz frequency, output variation is less than 0.1% FS
| onnection mode | Flange |
| Load capacity | current) 250 ~ 1425 Ω , (voltage) 2 kΩ Or more |
| Limit overload: | 200% FS |
| Safety overload | 150% FS |
