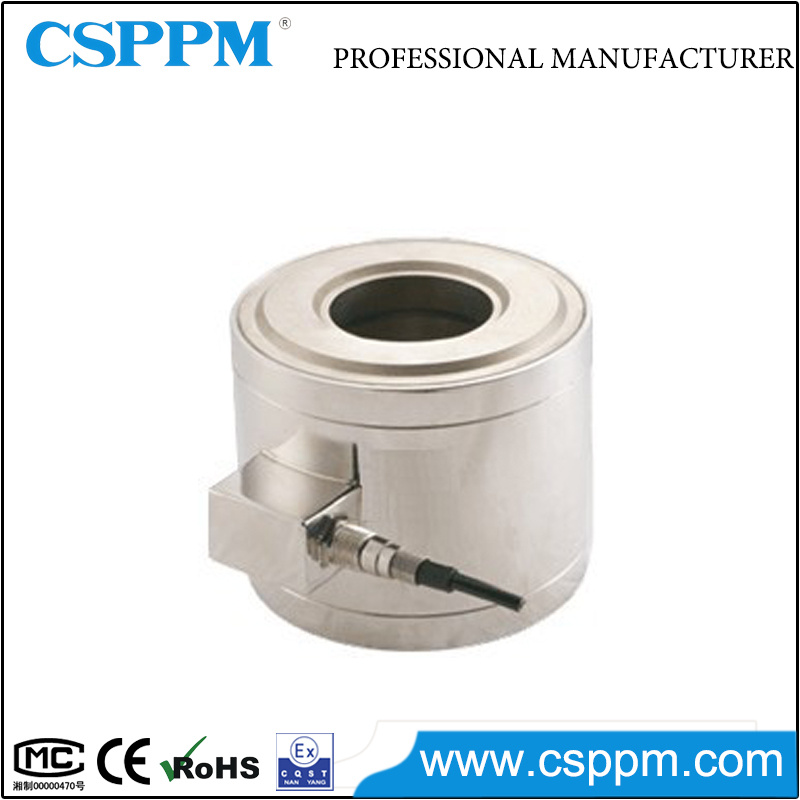

Ppm-Ty04 Hollow Cylinder Load Cell for Hopper Scale

Name: Ppm-Ty04 Hollow Cylinder Load Cell for Hopper Scale
Brand: all-electronics-online.com
SKU: 836114605
Availability: InStock
Rating: 4.9 (107 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ppm-Ty04
Certification:	CMC

Product Description

Description
PPM-TY04 load cells are available in the capacities from 0.5t to 300t. Rugged all Alloy construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board in the cable. It features high accuracy and strong character of anti deviated load.
PPM230-TY02 load cells are suitable for truck scale, Storage scale, Tank scale, Hopper scale, DCS system and other large tonnage measurement.

Specification

Rated Load	0.5t, 1t, 2t, 3t, 5t, 10t, 20t, 50t, 100t, 200t, 300t
Sensitivity	1±0.05mV/V
Linearity	0.1%FS
Repeatability	0.1%FS
Creep	±0.05%FS/30min
Temperature effect on zero	±0.05%FS/10ºC
Temperature effect on output	±0.04%FS/10ºC
Operating temperature range	-30ºC~+70ºC
Input resistance	350±10Ω
Insulation resistance	>2000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Alloy steel
Ingress protection	IP65
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

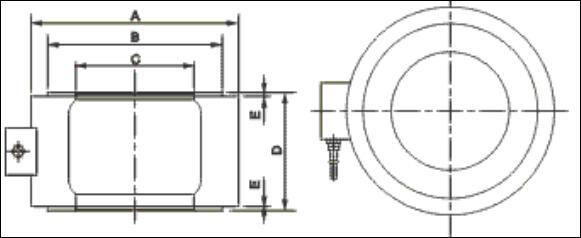

Dimensions: mm

Dimension (mm)	Measuring Range
Dimension (mm)	0.5t	1t	2t	3t	5t	10t	20t	50t	100t	200t	300t
A	40	62	62	62	60	60	90	115	166	236	236
B	35	55	55	55	36	36	68	109	141	190	195
C	10	18	18	18	18	18	43	80	85	120	120
D	50	74	70	70	70	80	80	110	110	120	120
E	1	2	2	2	2	2	3	3	3	3	3
