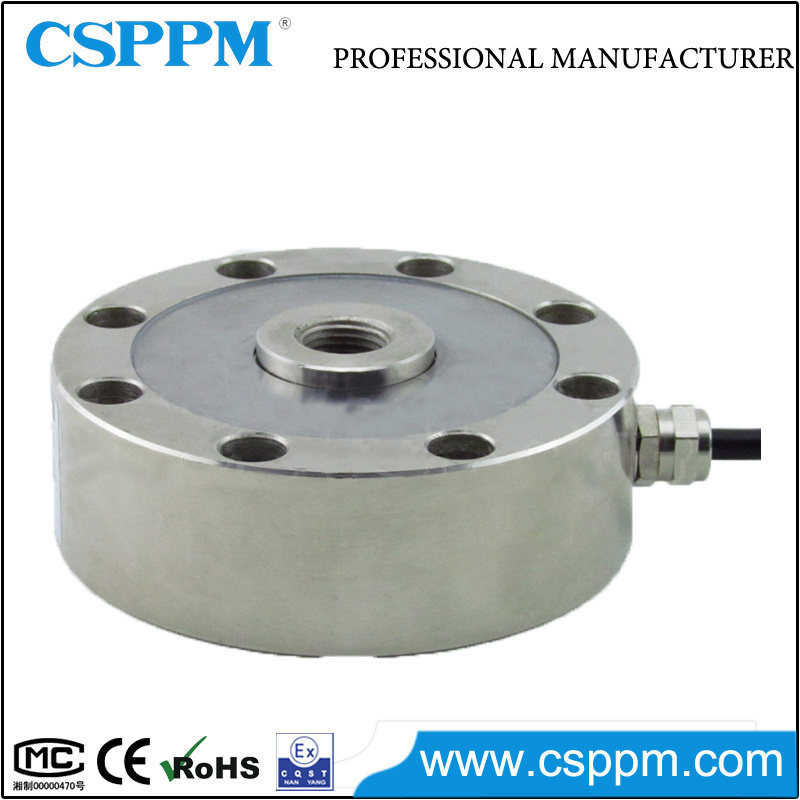

Ppm227-Ls3-2 Spoke Type Load Cell

Name: Ppm227-Ls3-2 Spoke Type Load Cell
Brand: all-electronics-online.com
SKU: 828538015
Availability: InStock
Rating: 4.4 (102 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM227-LS3-2
Certification:	CMC

Product Description

Description
PPM227-LS3-2 load cells are available in the capacities from 0.5t to 100t. Rugged all stainless steel construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board in the cable.
PPM227-LS3-2 load cells are suitable for Belt scale, Hopper scale, truck scale and other electronic weighing devices.

Specification

Capability	0.5~100 t
Comprehensive precision	0.05%FS
Sensitivity	2 mV/V
Creep	±0.05%FS/30min
Zero Output	±1%FS
Temperature effect on zero	±0.05%FS/10ºC
Temperature effect on output	±0.05%FS/10ºC
Operating temperature range	-20ºC~+65ºC
Input resistance	380±10Ω or 750±15Ω
Output resistance	350±3Ω or 700±5Ω
Insulation resistance	>5000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Stainless steel or Alloy steel
Protection class	IP 65
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

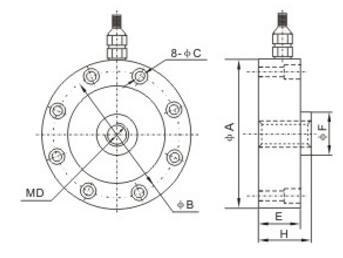

Dimensions: mm

Capacity	Dimensions
t	ΦA	ΦB	ΦC	ΦF	MD	H	E
1~7	105	88.9	6.5	32	M16*1.5	37	34
10~25	125	101.6	8.5	39	M32*1.5	52	48
30~50	145	116.8	10.5	50	M40*1.5	58	54
60~100	205	162	12.5	80	M60*2	85	78

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
