| Prod Model: |
CY-IP918 |
| Service: |
OEM |
| Warranty: |
3 Years |
| Item: |
IP Network Public Address System |
| Usage: |
School |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Voice |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

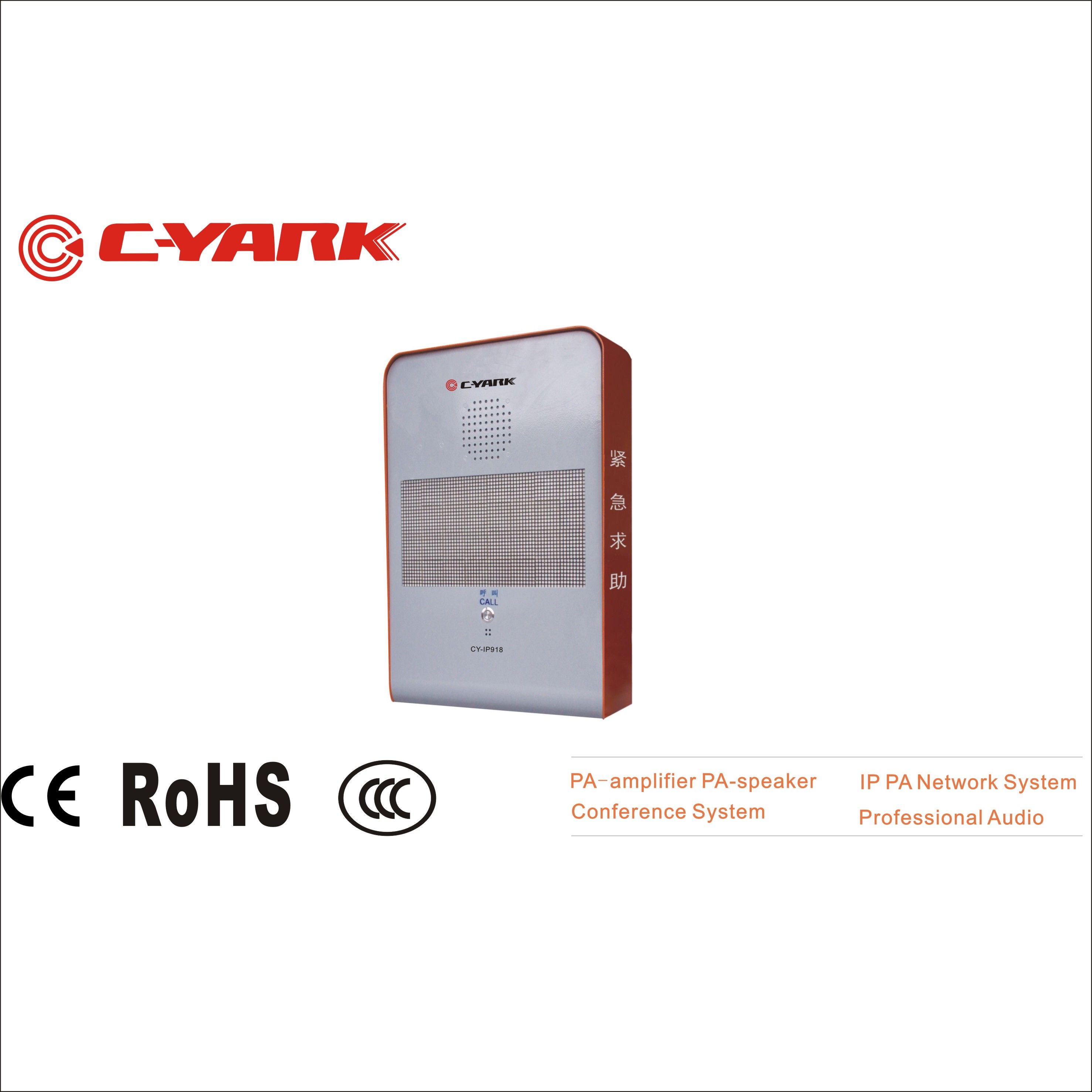

Outdoor LED IP network intercom terminal
Usage:
1. Professional outdoor one button seeking help IP network intercom terminal. With LED screen and one button for bi-directional talking back.
2. It's design for park, tunnel, mine and more. It can broadcast and play background music in the same time.
Description:
1. With high light and wide screen LED display lattice, the location name and number can be seen clearly.
2. It can show the real-time operation state such as showing " calling" when press the button.
3. Inserted computer technique and DSP audio treating technique with high speed industrial core to lower the starting time in 1 second.
4. Sturdy and durable full metal shell is explosion-proof and water-proof. It can be stick on the montant.
5. Built in high sensitive microphone and monitoring speaker to pick up the sound and monitor in real time. And it can support hand free call.
6. It can be set with 8Ω/60W digital power amplifier for broadcast requirement of different occasion.
7. 1 AUX input and 1 AUX output is suitable for broadcasting and picking up sound from special occasion.
8. It has short circuit output interface for monitoring linkage.
9. High protection level design. It's made of alloy and anti-dismantle screw for explosion-proof, water-proof and puncture-resistant.
10. It support overlay IP and cross-layer routing.
Specification:
Outdoor LED IP network intercom terminalNetwork port: 1 standard RJ45 network portScreen: LED screen
4.Transmission rate: 10/100Mbps
5.Audio format: MP2/MP3
6.Supported protocol: TCP/IP, UPP, IGMP
7.Sampling rate: 8K-48KHz
8.Audio mode: 16 stereo CD sound quality
9.S/N ratio: >75db
10.Harmonic distortion ≤ 0.3%
11.Frequency response: 20Hz-16KHz
12.Short circuit output: 1 group
13.Line input electronic level: 1 group with 350mV
14.Line output electronic level: 2 group with 775mV
15.Built in loudspeaker's power rate and impedance: 2W, 8Ω
16.Working temperature: 5ºC~+45ºC
17.Environment humidity: 10%~90%
18.Protection level: IP54
19.Size: 124x202x40mm
20.Input power: DC12V
21.Power dissipation: ≤10W
FAQ:
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 24 months. We will give 1% easy-worn accessories to you before shipment.
4. What's your payment terms?
We accept Western Union and Bank Transfer. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Our main customers are from Southeast Asia, South America, North America, Western Europe, Africa and other countries.
6. How many days do you need to prepare the goods?
We need about 30 working days for large order.
Company Introduction:
1.Our Products & Certifications:
Guangzhou C-yark Electronic Technology Co., Ltd. is a professional public address system manufacturer. Covering power amplifier series , ceiling speaker, indoor and outdoor speaker series,MP3 public broadcasting system, conference system and IP
PA system. All of Our products have received CCC, CE and ISO9001 approvals
2. Our Mission:
C-yark owns best equipment, normative management, professional design and technology. With an aim of providing our customers the most stable and excellent performance products, and to satisfy customer with perfect service, we stick to improving our existing products and developing new products every year. We successfully launch various new products to domestic and foreign market;
So, OEM or ODM order is welcomed.
3. Our Goals and Project Cases:
With 10-year effort, C-yark has achieved great successful in domestic and foreign market. Our products are exported to all over the world, such as India, Pakistan, Poland, Serbia, Australia etc. We have also cooperated with a group of domestic agents and provided superior qualified PA system equipment to a lot of big projects , such as Beijing Olympic games in 2008, Guangzhou Asian Games in 2010 and Shenzhen 2011 The 26th Summer Universiade.
We sincerely hope to establish a long term business cooperation relationship with customers from all over the world.
Guangzhou C-yark Electronic Technology Co., Ltd. is a professional public address system manufacturer. Our products cover power amplifier series, ceiling speaker, indoor and outdoor speaker series, MP3 public broadcasting system, conference system and IP system. All of Our products have received CCC, CE and ISO9001 approvals
C-yark owns best equipment, normative management, professional design and technology. With an aim of providing our customers the most stable and excellent performance products, and to satisfy customer with perfect service, we stick to improving our existing products and developing new products every year. We successfully launch various new products to domestic and foreign market; So, OEM or ODM order is welcomed.
With 10-year effort, C-yark has achieved great successful in domestic and foreign market. Our products are exported to all over the world, such as India, Pakistan, Poland, Serbia, Australia etc. We have also cooperated with a group of domestic agents and provided superior qualified PA system equipment to a lot of big projects, such as Beijing Olympic games in 2008, Guangzhou Asian Games in 2010 and Shenzhen 2011 The 26th Summer Universiade
We sincerely hope to establish a long term business cooperation relationship with customers from all over the world.
