| Prod Model: |
CA-010DU |
| OEM/ODM: |
Accepted |
| Warranty: |
2 Years |
| Panel: |
Iron Panel |
| Certification: |
Ce, 3c, CAS, RoHS |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Type: |
PA Amplifier |
| Used For: |
Hotel, School, Airport, Market, Church, Subway |
| Usage: |
Public Address System |
| Output Number: |
6+3+1 |
| Sound Channel: |
1.0 |
Product Description

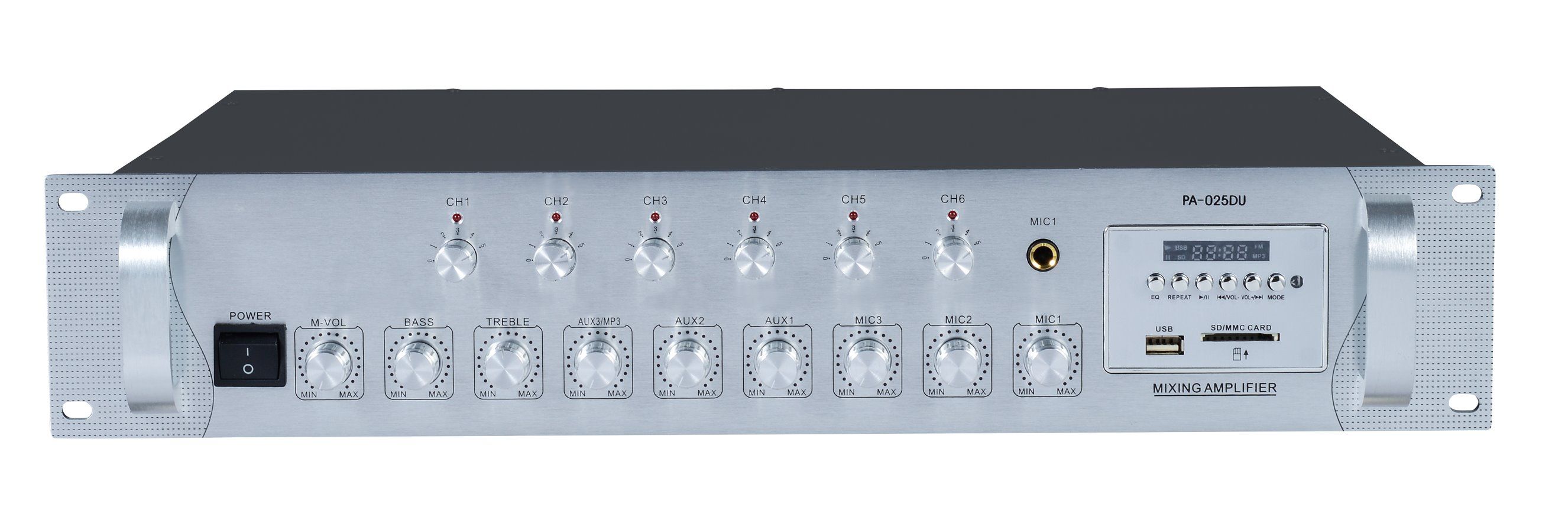

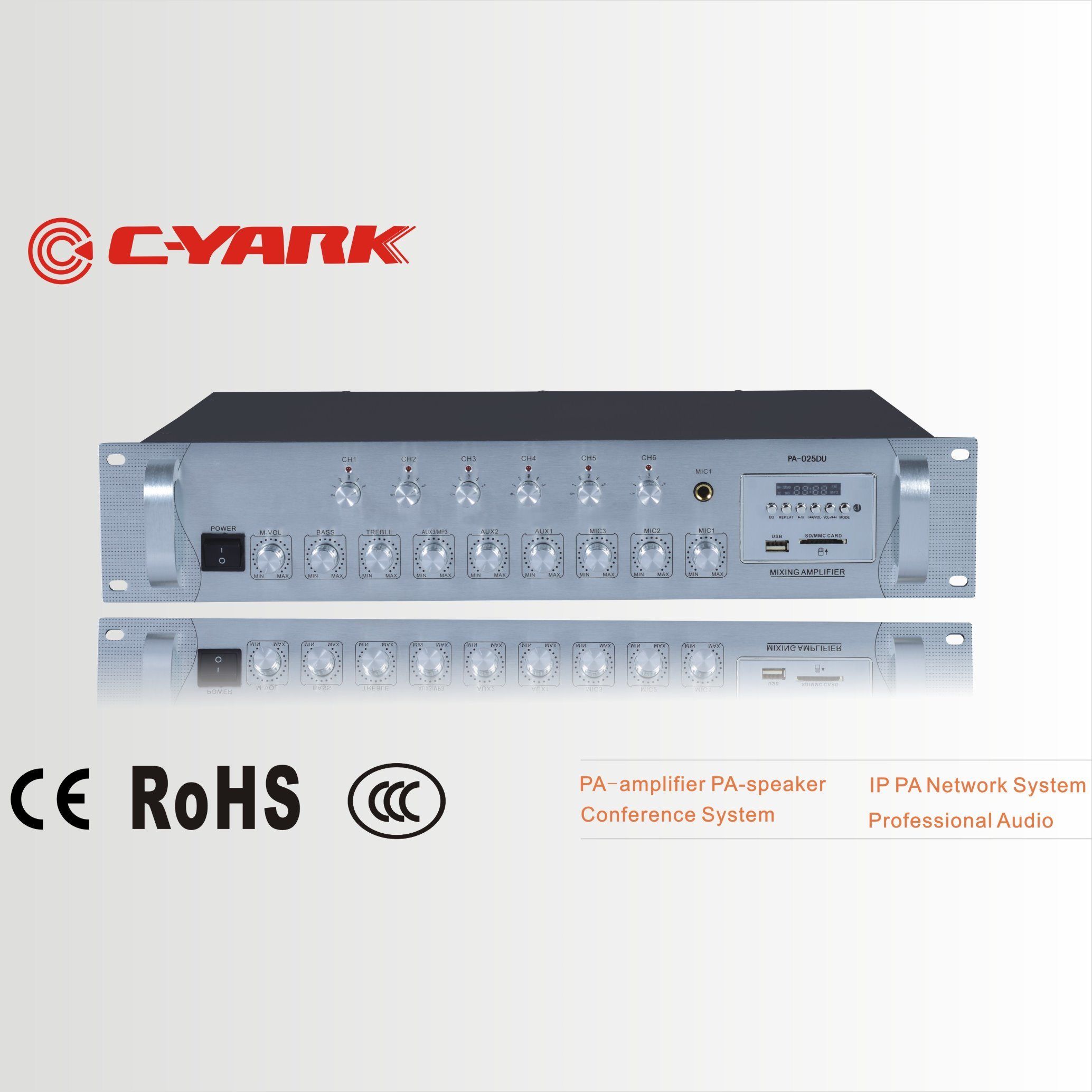

PA Amplifier with 6zones Separately Control Volume Function
Specifications
| Model | CA-010DU | CA-015DU | CA-020DU | CA-025DU | CA-035DU | CA-050DU |
| Rated Power | 100W | 150W | 200W | 250W | 350W | 500W |
| Output Model | 70V 100V 4-16 |
| Input Sensitivity | 500mv |
| S/n Radio | >85db |
| Frequency Response | 80Hz~~15KHz±3db |
| Power | AC 220V~~240V/50Hz~60Hz |
| Dimension(mm) | 100-250W:485*370*90mm; 350W(Include 350W): 485*390*90mm |
Descriptions| 2U rack mount design with high quality aluminium alloy panel. |
| Each zone has an independent volume controller. |
| The digital module includes USB port and SD card slot |
| Mute function: Input has priority level ( Front MIC 1 overrides all other inputs). |
| Applying newest separation circuit design for convenient repairing and maintenance. |
| Output module has a cover to prevent it from damaging by other machines. |
| Excellent device of radiator cooling fan that ensures working effectively. |

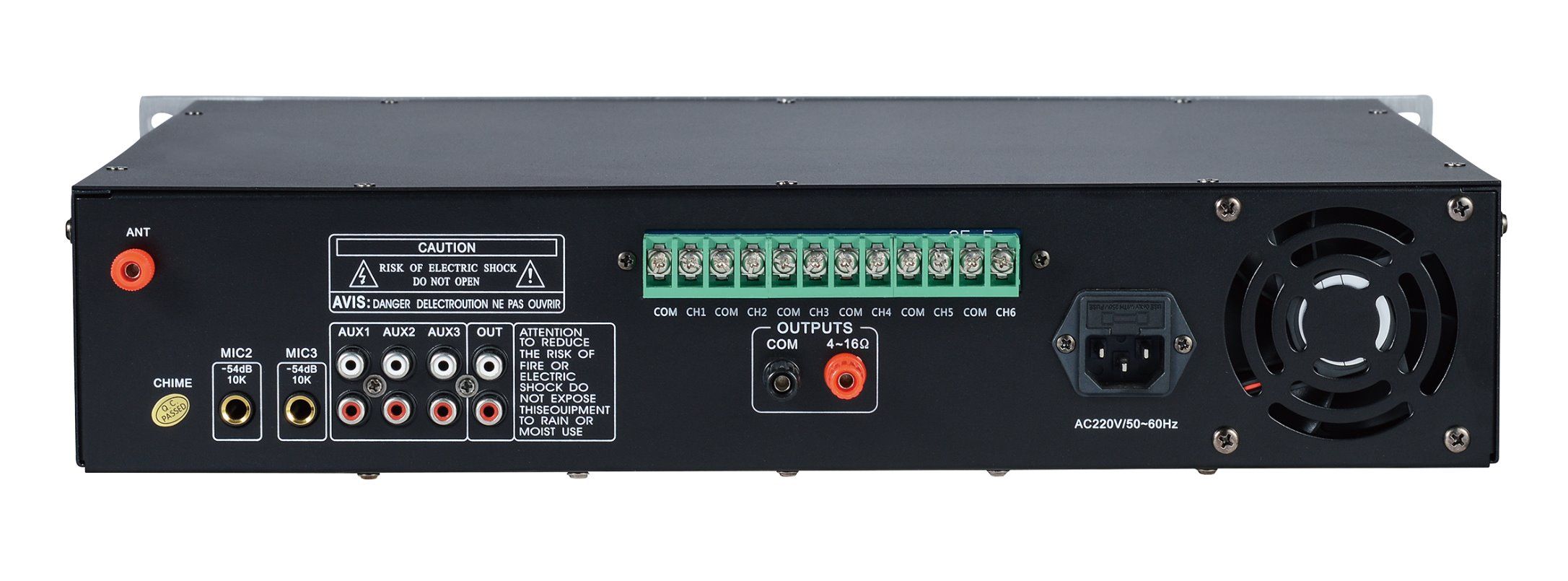

| The perforated back panel and a high-speed fan keep the amp cool. |
| It supports Bluetooth and is with LED to display status. |
| It has 3 AUX inputs, 3 MIC inputs, internal MP3 player and FM. |
| Master volume control are provided for overall tone control. |
| Treble and bass volume control. |
| Output module has a cover to prevent it from damaging by other machines. |
| Built-in MP3 and FM function to play background music directly and no need for another audio facility. |
Features
| Power: 100W/150W/200W/250W/350W/500W |
| Input: 3 AUX inputs, 3 MIC inputs(MIC 1 has Mute function for emergency input) |
| Output: 1 AUX output |
| Decoder module supports USB / SD Card |
| File format: MP3/WMA/WAV |
| Multiple play mode:repeat; play/pause; prev/next; vol+/vol-;EQU(equalizer) |
| FM function |
| CHIME(MIC ECHO) |
| Master Volume control |
| Treble and bass control |
| Remote controller |
| Cooling fan and heat sink for over-heat protection |
| Power transistor: Samsung brand |
| Short-circuit/Over-load/Over heat protection |
| A single machine is a complete P.A System |

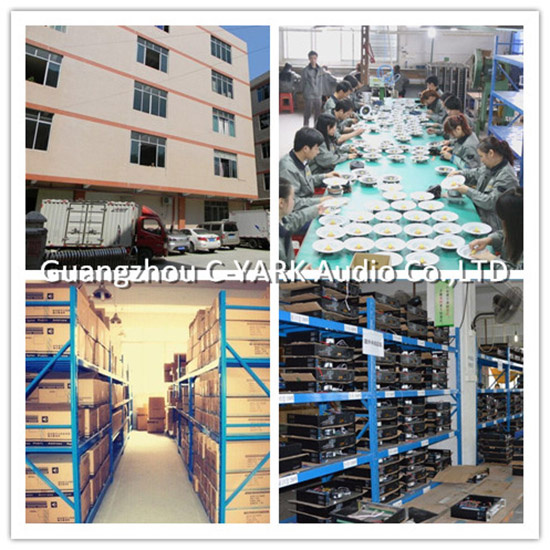

Our Factory:
