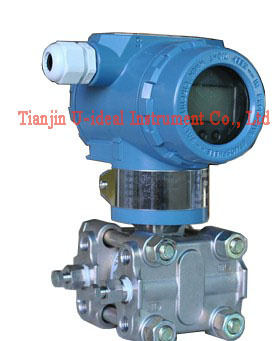

Ordinary Type Structure Pressure Differential Pressure Transmitter
| Price: |
US $ 220/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
UIP-T61 |
| Rangeability: |
50:1 or 15:1 |
| Accuracy: |
0.1%, 0.2%, 0.5% |
| Communication: |
Hart Communication |
| Eeprom: |
with Eeprom |
Product Description
OverviewUIP-T61 pressure/differential pressure transmitter is a microprocessor-based high performance in-field transmitter, which features in flexible pressure calibration and push button configuration. It is widely used for liquid level, density and pressure measurement of liquid, gas and steam.
☆ Thanks to the microprocessor technology, practicality and reliability is enhanced.
☆ With functions of self-diagnosis and remote control.
☆ EEPROM stores configuration settings and sensor correction coefficients in the event of shutdowns or power loss.
☆ It is capable of being configured for differential pressure or level applications with the zero and span buttons.
☆ Rangeability: 50:1 or 15:1
☆ It is programmable using HART Communication
☆ Accuracy: ±0.1%, ±0.2%, ±0.5%

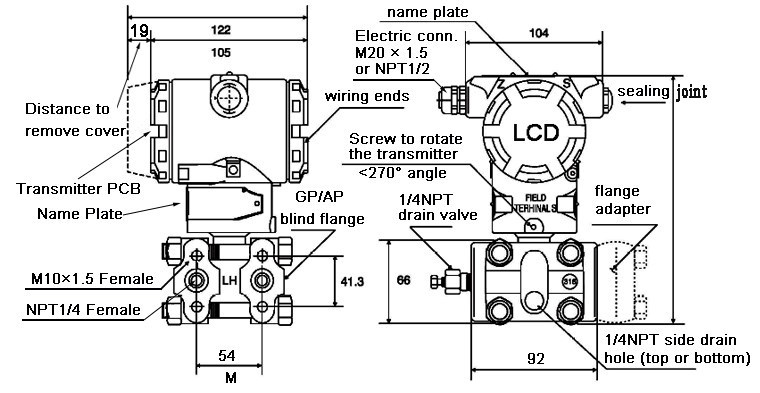

| Measure range(code) | 2,3,4,5 | 6 | 7 | 8 | 9 | 0 |
| M (mm) | 54 | 56 | 56 | 57 | 57 | 59 |
T61 series differential pressure, high hydrostatic pressure, gauge pressure, absolute pressure transmitter model selection ―not selectable, •selectable| Model | Transmitter Type(Single selection) | DP | HP | GP | AP |
| UIP-T61DP | Differential Pressure transmitter | . | - | - | - |
| UIP-T61HP | High hydrostatic pressure differential pressure transmitter | - | . | - | - |
| UIP-T61GP | Gauge Pressure transmitter | - | - | . | - |
| UIP-T61AP | Absolute Pressure transmitter | - | - | - | . |
| Code | Pressure Measure range(URL)(Single selection) | DP | HP | GP | AP |
| 3 | 1.3~7.5kPa | . | . | . | - |
| 4 | 6.2-37.4kPa | . | . | . | . |
| 5 | 31.1-186.8kPa | . | . | . | . |
| 6 | 117-690kPa | . | . | . | . |
| 7 | 345-2068kPa | . | . | . | . |
| 8 | 1170~6890kPa | . | - | . | . |
| 9 | 3480~20680kPa | - | - | . | - |
| 0 | 6890~41370kPa | - | - | . | - |
| Code | Transmitter output (single selection) | DP | HP | GP | AP |
| E | 4-20mA,Linear, Analog /damping adjustable | . | . | . | . |
| N | 4-20mA, digital smart type | . | . | . | . |
| S | 4-20mA,Smart, HART protocol | . | . | . | . |
| Code | flange & Joints | drain/vent valve | diaphragm | DP | HP | GP | AP |
| 22 | 316SS | 316SS | 316L SS | . | . | . | . |
| 23 | 316SS | 316SS | hastelloy C | . | . | . | . |
| 24 | 316SS | 316SS | Monel Alloy | . | . | . | . |
| 25 | 316SS | 316SS | tantalum | . | . | . | . |
| 33 | hastelloy C | hastelloy C | hastelloy C | . | . | . | . |
| 35 | hastelloy C | hastelloy C | tantalum | . | . | . | . |
| 44 | Monel Alloy | Monel Alloy | Monel Alloy | . | . | . | . |
| Code | Indicator (If local display is not needed, no selection) | DP | HP | GP | AP |
| M1 | Analog Scale, Linear head, 0-100% scale | . | . | . | . |
| M2 | Analog Scale, square root showing, 0~10 scale | . | . | - | - |
| M3 | LCD, linear head, 0-100% selectable | . | . | . | . |
| Code | Mounting bracket | DP | HP | GP | AP |
| B1 | Tube bending bracket ( tube outside diameter Φ50~60) | . | . | . | . |
| B2 | Plate bending bracket | . | . | . | . |
| B3 | Tube flat bracket ( tube outside diameter Φ50~60) | . | . | . | . |
| Code | Release valve | DP | HP | GP | AP |
| D0 | Drain valve at the back | . | . | . | . |
| D1 | Side Release valve above the pressure chamber | . | . | . | . |
| D2 | Side Drain valve at the bottom of the pressure chamber | . | . | . | . |
| Code | Low pressure side Flange adaptor | DP | HP | GP | AP |
| N | no flange adapter (with 1/4NPT female at flange to connect the press-leading lines) | . | . | . | . |
| C1 | 1/2NPT female thread flange adapter, Leading pressure transition joint and welding press-leading tube(stainless steel) | . | . | . | . |
| C2 | M20x 1.5 Male thread flange adapter, Leading pressure transition joint and welding press-leading tube(stainless steel) | . | . | . | . |
| Code | Explosion-proof (don't select is standard type) | DP | HP | GP | AP |
| d | explosion-proof , Exd II CT6 | . | . | . | . |
| i | Intrinsically safety, Exia II CT6 | . | . | . | . |
| Typical model: UIP-T61DP 4 S 22 M3 B3 D2 C2 |
