Prod Model: |
TH-80 |
Name: |
Cyclic Temperature Humidity Test Cabinets |
Temperature Range: |
-60 ~+150 Degree |
Humidity Range: |
20%~98% |
Heating Rate: |
3 Degree / Min |
Cooling Rate: |
1 Degree / Min |
Controller: |
Programmable Temi880 Color Touch-Screen Type |
Refrigerating Unit: |
French Tecumseh Compressor |
Temperature Sensor: |
PT-100 a Class |
Lead Time: |
20 Days |
Warranty: |
3 Years |
Product Description
Mini Temperature & Humidity Climate Testing Chamber SpecificationsModel | TH-50 | TH-80 |
Internal dimension (mm) | 320*350*450 | 400*400*500 |
Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
Temperature range | -20ºC ~+150 ºC |
Low type | : -40ºC :-70ºC |
Humidity range | 20% ~ 98% RH |
Temperature fluctuations | ± 0.5 ºC |
Temperature deviation | ± 2.0 ºC |
Humidity deviation | ± 2.5% RH |
Heating rate | 3 ºC / min |
Cooling rate | 1 ºC / min |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Temperature Resolution | ± 0.001 ºC |
Humidity sensor | Dry and wet bulb sensor |
Humidity Resolution | ± 1%RH |
Power Supply | AC220V 50HZ |
Environmental conditional | 5ºC~+40 ºC ≤85% RH |

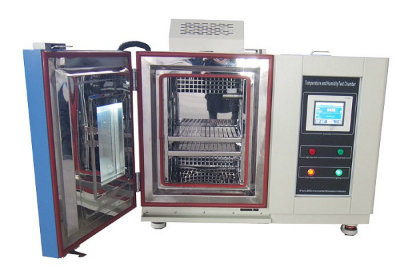

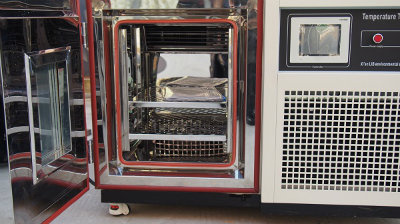

Design and ConstructionTest Area Material of the test cabinet is high quality SUS304 stainless steel. Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug. Temperature sensor Pt100 platinum Humidity sensor dry and wet bulb 2 pieces of adjustable and removable shelves |
![](/proimages/44f3j00aQotjwUgqNuG/mini-temperature-humidity-climate-testing-chamber.jpg) |
Control Panel PLC controller Programmable color display touch screen controller. Programs reach to 999 groups and 999 sections RS-232 /RS-485 interface, PC Link, LAN network |
![](/proimages/44f3j00UacEZQYnINpG/mini-temperature-humidity-climate-testing-chamber.jpg) |

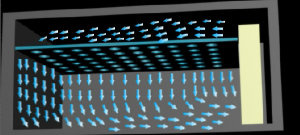

Air Circulation Air circulation fans in the workroom of the chamber. The number of air circulation fans is three. The real wall of test area with chip-type wind board, air flowing out from top of wind board which control air direction, and return into air inlet to achieve air circulation. |
![](/proimages/44f3j00fTktZRGdqFuY/mini-temperature-humidity-climate-testing-chamber.jpg) |
Power Supply and Wiring 380V, 50 Hz 10% +/- three-phase-five-wire system
|
![](/proimages/44f3j00RQbTSpUtjnrG/mini-temperature-humidity-climate-testing-chamber.jpg) |
Service & Support Inquiry and consulting support
Offering quotation and brochure
Provide test solutions
Visiting our factory
Inspection and acceptance
3 years warranty support
lifelong follow-up services.
Instlation and training
Response within 24 hours
Send engineers to customer place
Why Us Quality Guarantee
We control quality from the materials, electronic parts,accessories and many assembly parts of the products.
Third Party Inspection
All our test chambers accept third party inspection.
3 Years Warranty
Provide service of training, installation,operation and calibration, and engineers on site.
Professional Team
Our elite team provides professional solutions, right equipments, accurate answers to worldwide customers.
More Equipment
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries. Our main products are Temperature and humidity climatic test chamber, Thermal shock chamber, Salt spray test chamber & CCT, Dust and water ingress test chambers, Weathering test chambers, Ozone test chamber, Sulfur dioxide corrosion test chamber, Drying Overs, Walk-in chamber. etc
LIB INDUSTRY undertakes standard and customized climatic chamber projects. The company is involved in all stages including designing, manufacturing, installation, commissioning, service, maintenance and calibration. And can provide effective solutions to any environmental test problem based on years of experience.
We provide various climatic chambers and service to accredited laboratories, manufacturing industry, institute, university, companies and other partners. And gottestimonials from many of our esteemed companies. And got testimonials from many of our customers. Even some customers got many order through pruchasing and using our test chambers. Many customers use our climatic test chambers to inspect their products quality and characteristics. Some kinds of clients to resell our climatic chambers to get a good market.
Our company pre-sales and after-sales service as following
Re-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory.
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.
Our Packages use Export Standard Wooden Box, which can be used for Sea, Air, Railway, Truck transportation.
LIB climatic test chamber have been certified by CE, RoHS, ISO2001 compliance, and CSA certificate.
