Dew Point Thermal Climatic Test Chamber for Lab Equipment
| Price: |
US $ 6000-17000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TH-225 |
| Low Temp.: |
-60 Centigrade C |
| High Temp.: |
+180 Centigrade C |
| Humidity: |
20- 98% Rh |
| Cycle Program: |
Perform Cycle Temperature Humidity Tests |
| Interior Material: |
SUS304 Stainless Steel |
| Thermal Insulation: |
Polyurethane Foam |
| Lead Time: |
20 Days |
| Warranty: |
3 Years |
| Refrigerating Unit: |
French Tecumseh Compressor |
| Controller: |
Programmable Color LCD Touch Screen Controller |
Product Description
Dew Point Thermal Climatic Test Chamber for Lab EquipmentStandard Features- Temperature control and display unit
- Humidity control and display unit
- French TECUMSEH compressor cooling unit
- Environment friendly refrigerant R404A & R23
- Humidification system with external isolation, stainless steel surface evaporation humidifier
- Heating element is Nichrome heater
- Circulation with low noise centrifugal wind fan
- Temperature sensor PT-100 , Resolution: ± 0.001 ºC
- Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
- Build- in water tank

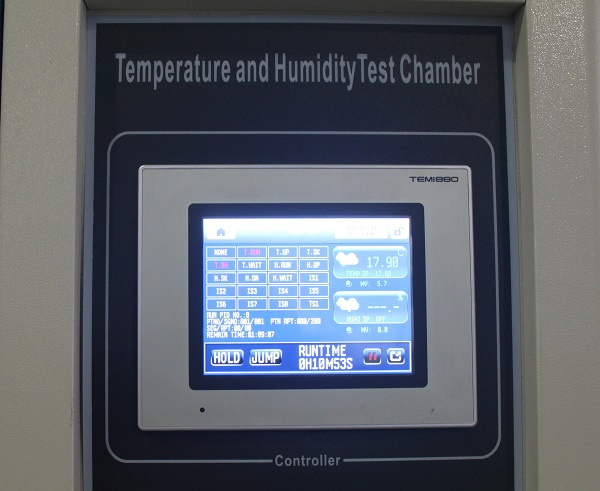

- Programmable color LCD touch screen controller
- Viewing window with interior lighting.
- Test hole with silicone screw plug.
- 2 pieces of adjustable and removable mesh shelving.
- Bottom install 4 castors for ease moving, and with brakes function
- R-232 (R-485) interface, PC Link, communication with LAN network interface
- Programs reach to 999 groups and 999 sections
- Safety protection system
- Interior material is high quality SUS304 stainless steel
- Exterior material is steel plate with protective coating
- Thermal insulation is Polyurethane foam
- Automatic water supply, water purification system
- Silicon seal for door
- Can perform long time 85 °C/85 % RH tests
PerformanceComprehensive temperature and humidity Test
Long time 85 °C / 85 % RH test
Temperature variation tests
Thermal cycle tests
Cold resistance tests
Storage with low-temperature
Main Technical Parameter| Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
| Internal dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
| Overall dimension (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
| Temperature range | -20ºC ~+150 ºC |
| Low type | : -40ºC :-70ºC : -86ºC |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ºC |
| Temperature deviation | ± 2.0 ºC |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ºC / min |
| Cooling rate | 1 ºC / min |
| Controller | Programmable color LCD touch screen controller |
| PC Link, R-232 interface |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Humidity sensor | Dry and wet bulb sensor |
| Heater | Nichrome heater |
| Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | French TECUMSEH compressor |
| Refrigerant | R404A, R23 |
| Humidifier | External isolation, stainless steel surface evaporation humidifier |
| Dehumidification system | Evaporator |
| Air circulation | Centrifugal wind fan |
| Water supply system | Automatic water supply; Water purification system |
Safety device
| Humidifier dry-combustion protection; over-temperature protection;
over-current protection; Refrigerant high-pressure protection; Water shortage protection,
Earth leakage protection; |
| Exterior material | Steel Plate with protective coating |
| Interior material | SUS304 stainless steel |
| Thermal insulation | Polyurethane foam |
| Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing |
| Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
| Timing Function | 0.1~999.9 (S,M,H) settable |
| Power Supply | 220V 50HZ |
| Environmental conditional | 5ºC~+40 ºC ≤85% RH |
Package with Export Standard Wooden Box
Can be used for Sea, Air,Railway, Truck transportation. Warranty&SericePre-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory.
|
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.
|
About Us
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries. LIB adhered to "Quality", "Service", and "Trust". LIB main products are:
Temperature and humidity climatic test chamber
Thermal shock chamber
Salt spray test chamber & CCT
IP test chambers
Weathering test chambers
Ozone test chamber
Sulfur dioxide corrosion test chamber
Drying Over
Walk-in chamber…
|
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries. Our main products are Temperature and humidity climatic test chamber, Thermal shock chamber, Salt spray test chamber & CCT, Dust and water ingress test chambers, Weathering test chambers, Ozone test chamber, Sulfur dioxide corrosion test chamber, Drying Overs, Walk-in chamber. etc
LIB INDUSTRY undertakes standard and customized climatic chamber projects. The company is involved in all stages including designing, manufacturing, installation, commissioning, service, maintenance and calibration. And can provide effective solutions to any environmental test problem based on years of experience.
We provide various climatic chambers and service to accredited laboratories, manufacturing industry, institute, university, companies and other partners. And gottestimonials from many of our esteemed companies. And got testimonials from many of our customers. Even some customers got many order through pruchasing and using our test chambers. Many customers use our climatic test chambers to inspect their products quality and characteristics. Some kinds of clients to resell our climatic chambers to get a good market.
Our company pre-sales and after-sales service as following
Re-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory.
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.
Our Packages use Export Standard Wooden Box, which can be used for Sea, Air, Railway, Truck transportation.
LIB climatic test chamber have been certified by CE, RoHS, ISO2001 compliance, and CSA certificate.
