Prod Model: |
Mgd-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Installation Mode: |
Handheld |
Application: |
Industry, Communication Electronic Products, Spe |
Usage: |
Anti-Theft |
Co: |
0~500 Ppm |
H2s: |
0~100 Ppm |
O2: |
0~30%Vol |
Combustible Gas: |
0~100%Lel |
Product Description
Introduction of Mgd-2 Digital 4 in 1 Multi Gas Monitor Sensor Detector Accurate acousto-optic alarm, large screen display, simple operation, with intelligent sensor.
All these advantages centre on a small but solid gas detector mgd-2 which is applied to combustible or toxic gas detection.
As the most sensitive gas alarm detector in the present industrial circle, mgd-2 responds quickly and accurately to the appointed gas, in order to alarm in time if the leakage or danger occurred. Hostile operating environment is a stern challenge for the detector, such as broiling, severe cold, damp, dusty, etc.
Mgd-2 was designed for exceedingly rugged surroundings, with explosion-proof and flame retardant crust, light and portable. Inspection and alarm will be continuous even if the detector were dropped or crashed. It is the primary inspection tool with high performance-price ratio and multiple functions in the field of gas detection. Common application includes mining, metallurgy, petroleum, chemical, power, telecommunication, urban construction, etc
Features of Mgd-2 Digital 4 in 1 Multi Gas Monitor Sensor Detector Aseismatic design is applied to rugged surroundings;
Continuously gas concentration and composition LCD real-time display;
Rechargeable lithium battery (continuous working period can be 16~18 hours);
95 dB acoustic alarm and two wide-angle optic alarm;
Built-in vibration alarm which is applied for noisy environment;
Two stage alarm threshold: The low alarm and high alarm point can be adjusted based on actual needs;
Simple automatic calibration program and plug-in replaceable sensor;
Fully functional self-testing: Sensor, integrity of battery and circuit, acoustic & visual &vibration three-stage alarm;
Small figure and light weight;
Password protection capability: Only the authorized user can modify the preset parameter.
Datasheet of Mgd-2 Digital 4 in 1 Multi Gas Monitor Sensor Detector Operating & Storage Environment | Temperature: -20 d~55 d (-4F~122F) |
| Humidity: 5%-95% (Relative humidity non-condensing) |
| Pressure: 95~110kPa |
Alarm Threshold (Two-stage) | There may be regional variations, users can set up the value based on the practical situation. |
Detecting Range | CO: 0~500 PPM |
| H2S: 0~100 PPM |
| O2: 0~30%vol |
| Combustible Gas: 0~100%LEL |
Transducer | O2 /H2S / CO: plug-in electrochemical transducer |
| Combustible gas: plug-in catalytic combustion transducer |
Alarm Type | low & high alarm, multiple gas alarm, sensor alarm, battery low |
| alarm, prompt tone, automatic shutdown alarm |
Acoustic Alarm | Variable-frequency pulse alarm which can reach volume of 95dB |
| in a distance of 1 foot (0.3 meters) |
Visual Alarm | Two red LBD omnibearing visible glitter alarm |
Vibration Alarm | Pulsant signals alert the gas alarm or any other alarm status |
Display | Alphanumeric large LCD displays the real time gas |
| concentration and alarm stage |
Backlight | Automatically activated when working in poor lighting |
| environment or the alarm sounding or the button is knobbed down |
Self-checking Function | Self-checking after start up. |
Calibration Function | Automatic zero point calibration ; |
| Automatic measurement range calibration. |
Power Supply | Rechargeable lithium battery |
Weight | 211g |
Dimensions | 126mm*66mm*33mm |

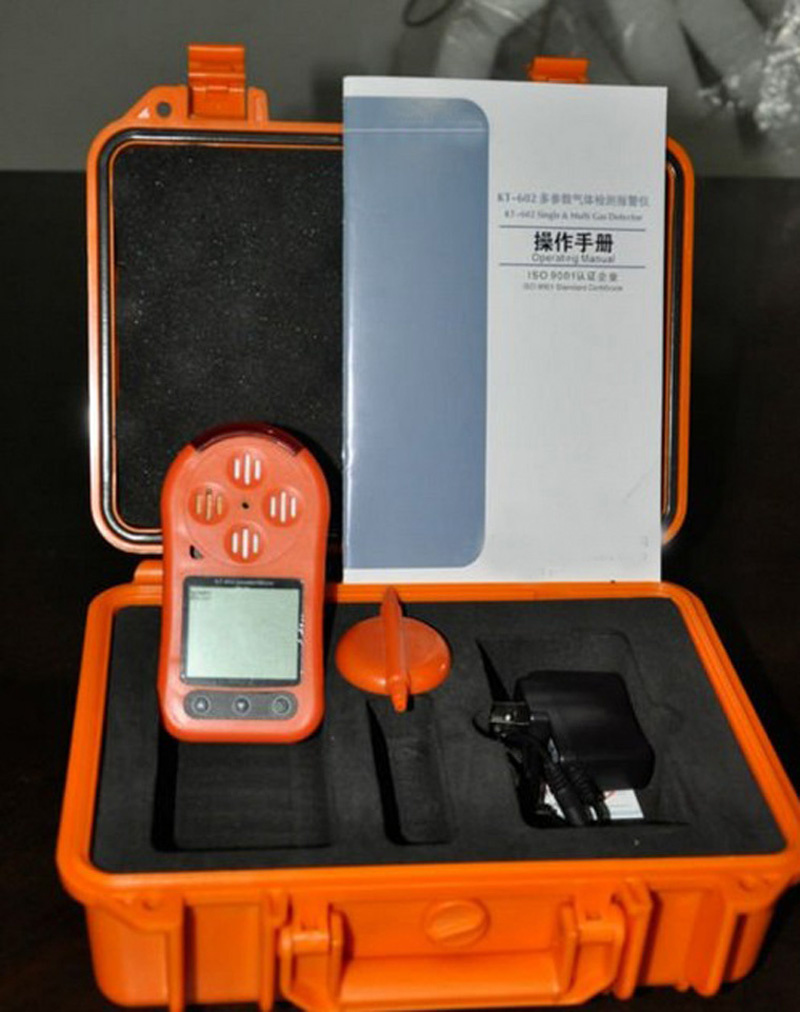

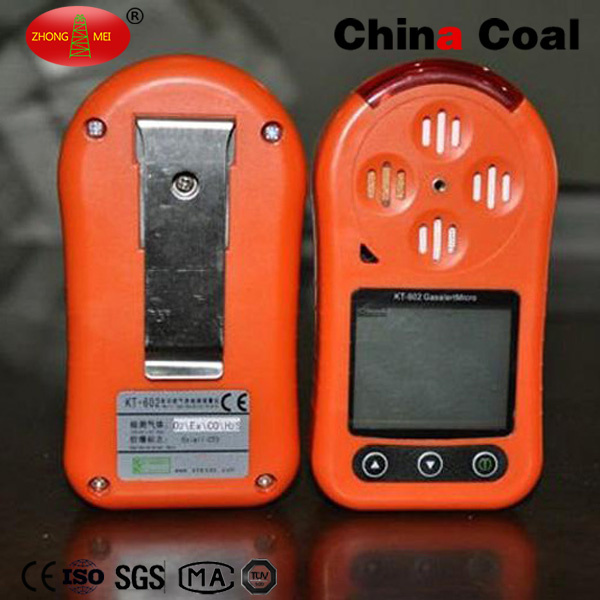

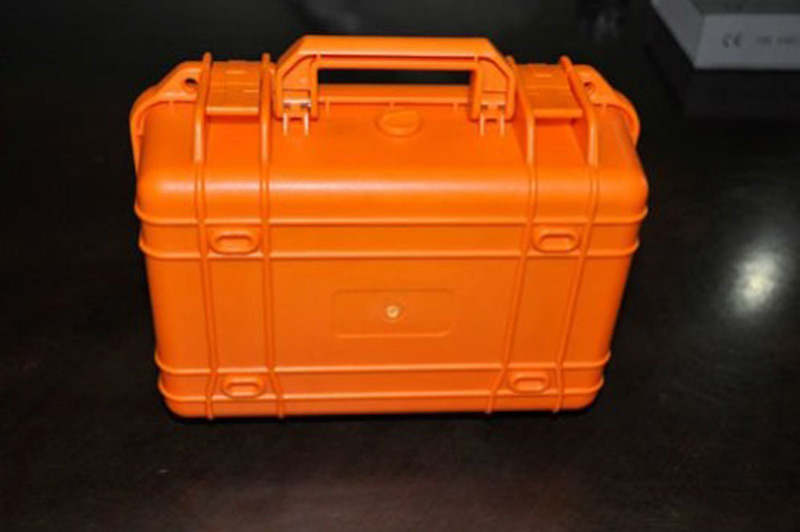

Pictures of Mgd-2 Digital 4 in 1 Multi Gas Monitor Sensor Detector ![](/proimages/44f3j00kERtoHmlOzgj/mgd-2-digital-4-in-1-multi-gas-monitor-sensor-detector.jpg)
![](/proimages/44f3j00qaRtblmMYpzj/mgd-2-digital-4-in-1-multi-gas-monitor-sensor-detector.jpg)
