Prod Model: |
KT602 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Weight: |
211g |
Dimensions: |
126mmx66mmx33mm |
Power Supply: |
Rechargeable Lithium Battery |
Self-Checking Function: |
Self-Checking After Start up. |
Pressure: |
95~110kpa |
Humidity: |
5%-95% (Relative Humidity Non-Condensing) |
Type: |
Gas Detector |
Conductivity Type: |
Standard |
Production Process: |
Standard |
IP Rating: |
Standard |
Product Description
Innovation of High Precision Kt602 Portable 4 in 1 Multi Gas Monitor Detector
Provide innovative, stable products and services.
Quality
Deliver consistently superior performance and pursue every possible improvement.
Agility
Identify emerging trends and act quickly to acquire new opportunities.
Customer Satisfaction
Anticipate customer needs and exceed their expectations.
Datasheet of High Precision Kt602 Portable 4 in 1 Multi Gas Monitor DetectorOperating & Storage Environment | Temperature: -20°C~55°C (-4F~122F) Humidity: 5%-95% (Relative humidity non-condensing) Pressure: 95~110kPa |
Alarm Threshold (Two-stage) | There may be regional variations, users can set up the value based on practical situation. |
Detecting Range | Flammables: 0~100% LEL Low Alarm Point: 25% LEL O2: 0~30% VOL Low Alarm Point: 18.5% VOL CO: 0~500 PPM Low Alarm Point: 35 PPM H2S:0~100 PPM Low Alarm Point: 10 PPM Other gas types: referring to the gas parameter list |
Transducer | CH4: plug-in catalytic combustion sensor O2 / H2S / CO: plug-in electrochemical sensor |
Alarm Type | low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm |
Acoustic Alarm | Variable-frequency pulse alarm which can reach volume of 95dB in a distance of 1 foot (0.3 meter) |
Visual Alarm | Two red LED omnibearing visible glitter alarm |
Vibration Alarm | Pulsant signals alert the gas alarm or any other alarm status |
Display | Alphanumeric large LCD screen displays the real time gas concentration and alarm stage |
Backlight | Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down. |
Self-checking Function | Self-checking after start up. |
Calibration Function | Automatic zero point calibration; Automatic measurement range calibration. |
Power Supply | Rechargeable lithium battery |
Weight | 211g |
Dimensions | 126mmx66mmx33mm |

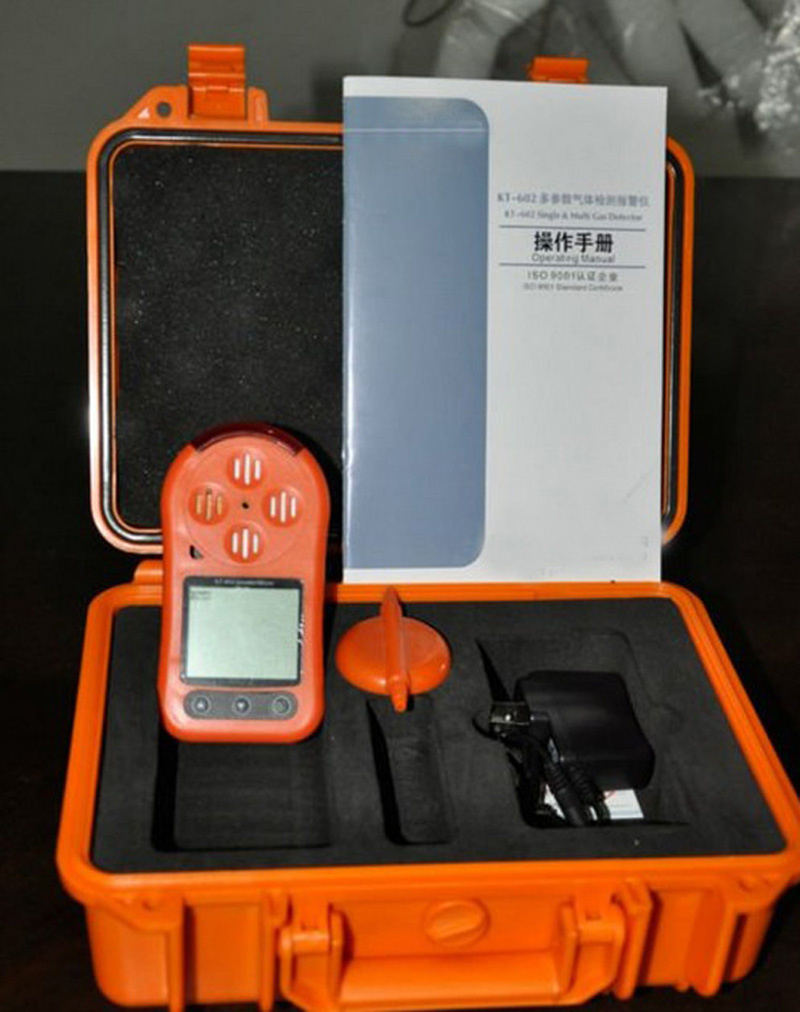

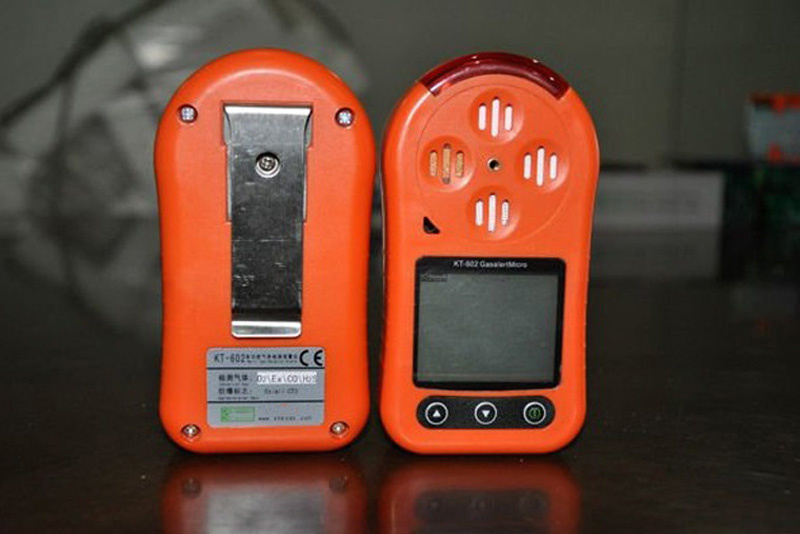

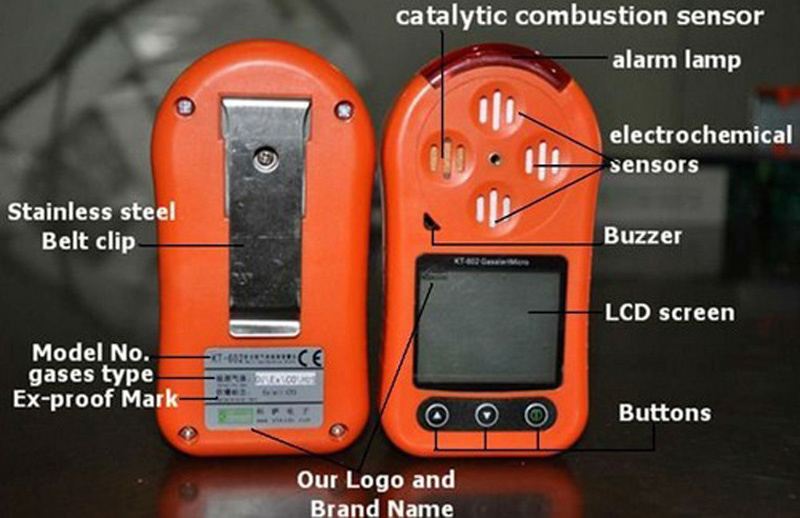

Pictures of High Precision Kt602 Portable 4 in 1 Multi Gas Monitor Detector![](/proimages/44f3j00oERTOrFIagpw/high-precision-kt602-portable-4-in-1-multi-gas-monitor-detector.jpg)
![](/proimages/44f3j00qaGENHnyCpum/high-precision-kt602-portable-4-in-1-multi-gas-monitor-detector.jpg)
